VERYTEK Products

Browse VERYTEK’s B2B product lines for thermal imaging, automotive electronics, laser rangefinder products and OEM/ODM embedded hardware solutions. Our products support OEM brands, distributors, system integrators, industrial project teams and professional electronics buyers.

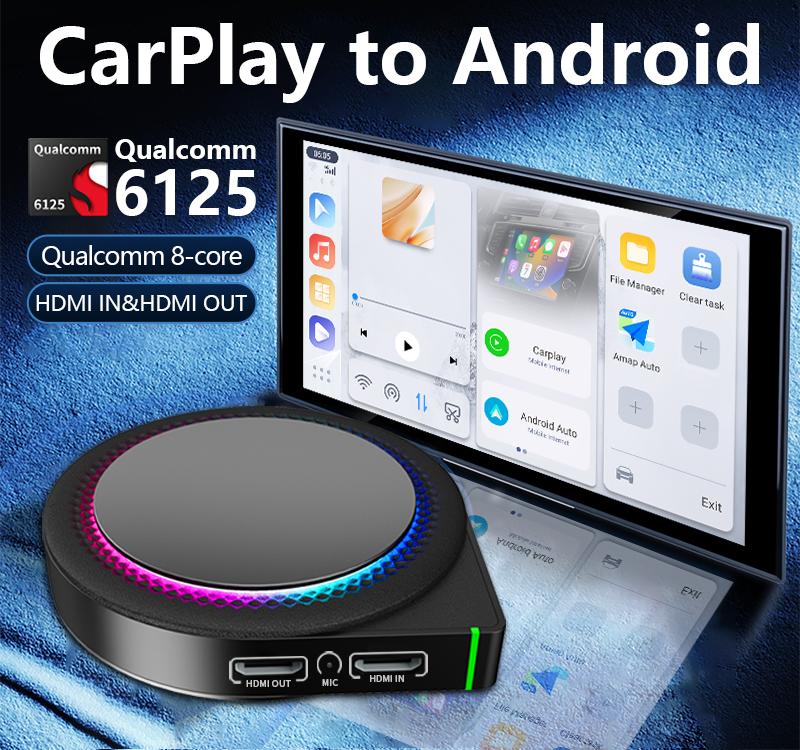

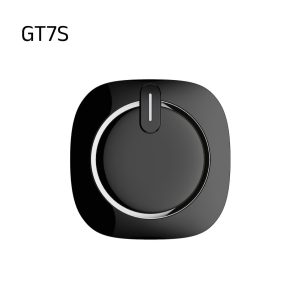

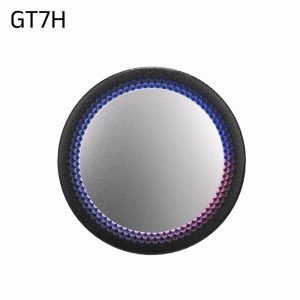

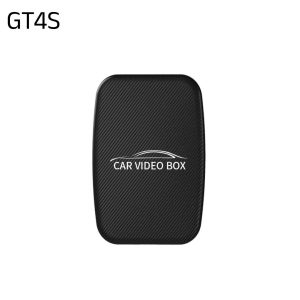

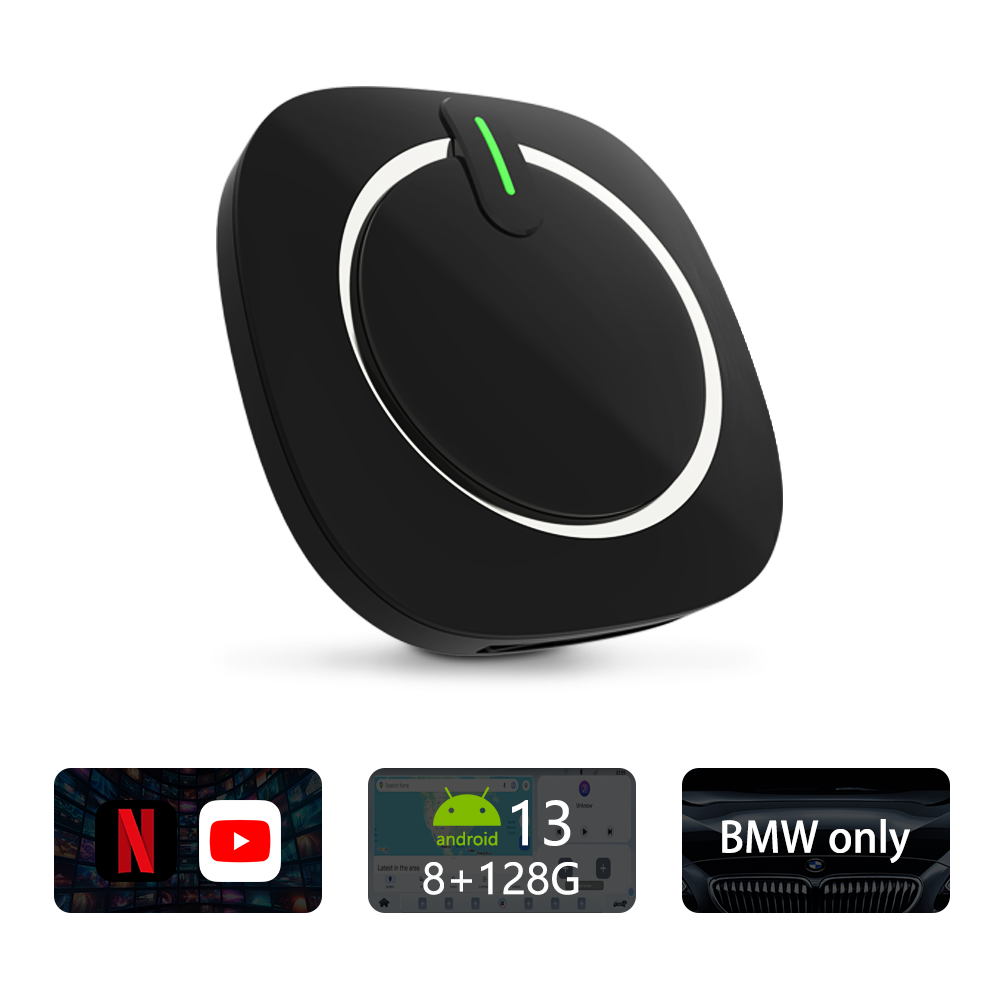

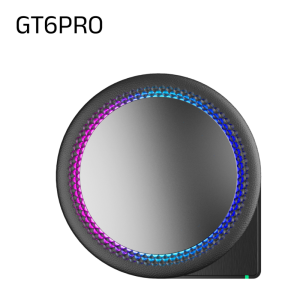

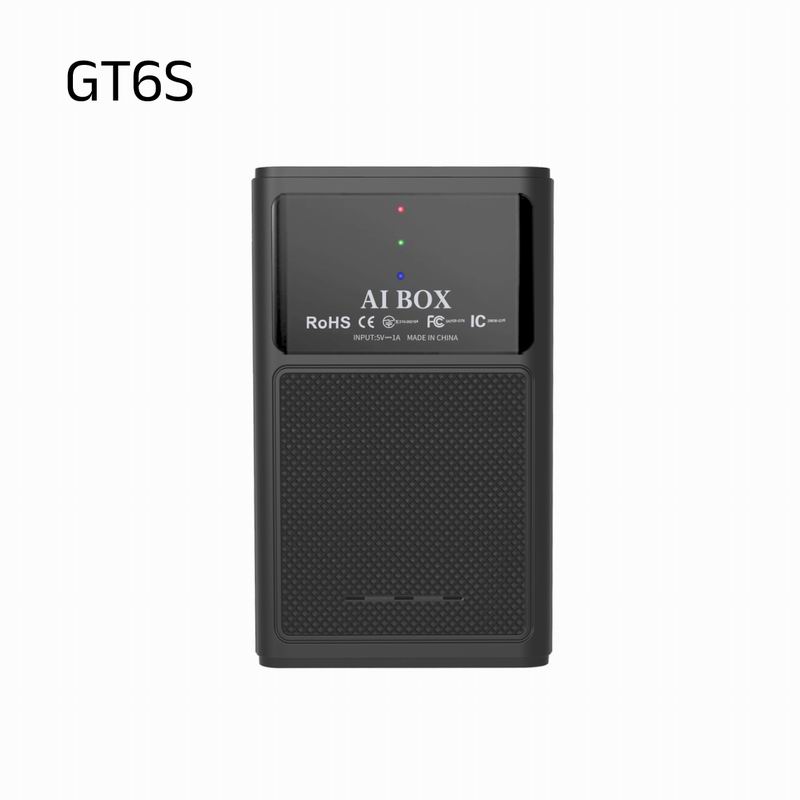

Use the product categories to find thermal camera modules, industrial thermal cameras, security thermal cameras, CarPlay AI boxes, car audio and video products, laser rangefinders and outdoor electronic solutions. For customized requirements, contact VERYTEK with your application, quantity, technical specifications and project timeline.

TA Series AI Vehicle Thermal Camera with AHD Video and RS485 Distance Output
The VERYTEK TA Series is an AI vehicle thermal camera with AHD video output, onboard pedestrian and vehicle detection, and RS485 distance data output. Available in 256 × 192, 384 × 288 and 640 × 512 resolutions, it provides thermal imagery, detection overlays and alarm speaker connectivity for commercial vehicle and equipment integration.
- Thermal Imaging: 12 μm uncooled VOx detector, 8–14 μm spectral band.
- AI Detection: Pedestrians, bicycles, e-bikes, motorcycles and vehicles.
- Video Output: AHD, with 720p/25 Hz as the default output format.
- Data Interface: RS485 transmission of detection-related distance information.
- Configuration: Multiple lenses, adjustable overlays and IR remote settings.
- Installation: IP67 aluminum housing, DC 9–24 V input and automatic power-on startup.
TA Series AHD output Thermal camera-en-20261019
TC Series Vehicle & Marine Grade Thermal Camera | CVBS or USB Output (No AI)
The VERYTEK TC Series is a compact vehicle and marine thermal camera with selectable CVBS (PAL) or USB output configurations. Available in 256 × 192, 384 × 288 and 640 × 512 resolutions, it combines a 12 μm VOx detector with an IP67-rated, hard-anodized aluminum housing for nighttime observation.

Multiple lens options support different viewing requirements, from wide-area coverage to more concentrated observation. The CVBS version can connect to compatible vehicle monitors and marine displays with a PAL video input.
- Thermal Resolutions: 256 × 192, 384 × 288 and 640 × 512.
- Video Output: CVBS (PAL) or USB, selected when ordering.
- Lens Options: Horizontal fields of view from 18° to 110°.
- Housing: Marine-grade CNC-machined aluminum with a hard black anodized finish.
- Protection: IP67-rated camera enclosure.
- Power Consumption: <2 W; <4 W with defrost activated.
- Applications: Vehicles, special-purpose vehicles, fishing boats and recreational boats.
TC Series Vehicle & Marine Thermal Camera CVBS or USB Output
TN Series AI Security Network Thermal Camera for Person, Vehicle, Animal Detection
The VERYTEK TN Series AI Thermal Network Camera combines uncooled VOx thermal imaging with onboard person, vehicle and animal detection. Available in 256 × 192, 384 × 288 and 640 × 512 resolutions, it supports RTSP and ONVIF integration, configurable alarm regions, multi-region linkage alerts and local recording.

Designed for observation and security monitoring, the TN Series provides an additional thermal view for pastures, aquaculture sites, oilfields, reservoirs and unattended locations.
- Thermal Imaging: 12 μm VOx detector, 8–14 μm spectral band.
- Resolution Options: 256 × 192, 384 × 288 and 640 × 512.
- AI Processing: 3 TOPS NPU with person, vehicle and animal detection.
- Network Integration: RTSP, ONVIF and DHCP.
- Alarm Functions: Built-in speaker, browser alarm and high-level alarm output.
- Configuration Options: Multiple lenses, selected defrost configurations and optional Wi-Fi.
Contact VERYTEK for model selection, integration requirements and project pricing.

Verytek-Smart+Security+Network+Thermal+Camera.pdf

IPCam_Product_Manual_v2.1.1_English_verytek.pdf
AI Dual-Spectrum Thermal Network PTZ Camera | 640×512 Thermal + 1080P Optical
The VERYTEK TEK-S Series AI Dual-Spectrum Thermal PTZ Camera combines a 640 × 512 infrared thermal imaging sensor with a 2MP 1080P visible-light camera and 10× optical zoom for day-and-night observation.

Designed for vehicle-mounted monitoring, marine surveillance, autonomous platforms, and security systems, the TEK-S features 360° continuous pan rotation, AI-based person/vehicle/animal detection, and ONVIF/RTSP network video connectivity.

Key Features:
- Dual-Spectrum Imaging: 640 × 512 thermal + 1920 × 1080 visible-light video
- Thermal Detector: 12 μm pixel pitch, 8–14 μm spectral range
- Optical Zoom: 10× visible-light zoom
- PTZ Movement: 360° continuous pan, −30° to +90° tilt
- AI Recognition: Person, vehicle, and animal detection
- AI Processing: Built-in 3 TOPS processing capability
- Network Protocols: ONVIF, RTSP, DHCP
- Video Compression: H.264 / H.265
- Protection: IP66-rated housing
- Compact Design: PTZ assembly weighing less than 2.5 kg
- Color Options: Black or white
Applications: Commercial vehicles, maritime monitoring, unmanned vehicles, robotic platforms, railway surveillance, and integrated security systems.

Contact VERYTEK for technical specifications, OEM integration, optional accessories, and project quotations.

Thermal+Dual-light+Smart+Network++PTZ+Camera-20261024
TNV Vehicle & Marine AI Network Thermal Camera | VERYTEK
The VERYTEK TNV Series AI Network Thermal Camera is an IP67-rated infrared imaging solution designed for vehicle-mounted night vision, marine observation, unmanned vehicles, robotic platforms, and security surveillance.

Featuring an uncooled VOx infrared detector, a built-in 3 TOPS AI NPU, and Ethernet connectivity, the TNV Series combines thermal night vision with intelligent person, vehicle, and animal detection, ranging, and configurable alarm functions.

Key Features:
- Thermal Resolution: 256 × 192, 384 × 288, or 640 × 512
- Infrared Technology: Uncooled VOx detector, 8–14 μm
- AI Detection: Persons, vehicles, and animals
- AI Processing: Built-in 3 TOPS NPU
- Network Connectivity: RJ45 Ethernet, ONVIF, RTSP, and DHCP
- Protection: IP67-rated housing
- Power Supply: DC 12 V, power consumption below 6 W
- Operating Temperature: −30°C to +70°C
- Lens Options: Multiple focal lengths for wide-area or longer-range observation
Applications: Automotive night vision, commercial vehicles, marine surveillance, autonomous vehicles, robot dogs, unmanned boats, and security monitoring.

Contact VERYTEK for model selection, OEM integration requirements, technical documentation, and project quotations.

TNV-Vehicle-Marine-Smart-Network thermal camera-20261024.pdf

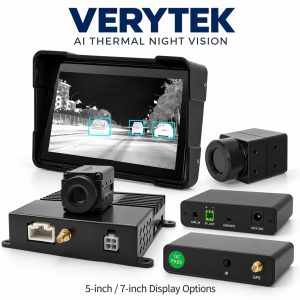

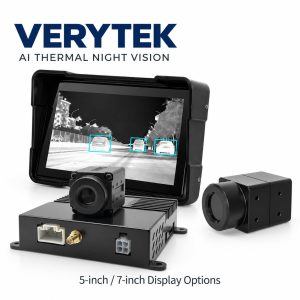

5 & 7 Inch AI Car Thermal Imaging Night Vision System
The VERYTEK AI Car Thermal Imaging Night Vision System combines an external LWIR thermal camera with a 5-inch or 7-inch IPS touchscreen. Available with 256 × 192, 384 × 288 or 640 × 512 camera configurations, it provides thermal road imagery, AI recognition of pedestrians, vehicles and animals, configurable alerts, and video recording for aftermarket vehicle applications.
- Camera Options: 256 × 192, 384 × 288 and 640 × 512.
- Thermal Detector: 12 μm VOx, 8–14 μm spectral range.
- Display Options: 5-inch or 7-inch IPS touchscreen, 1024 × 600.
- AI Functions: Pedestrian, vehicle and animal recognition.
- Driver Alerts: Adjustable warning zones, sensitivity and audible warnings.
- Additional Features: Video recording, seven thermal palettes and ten language options.
Contact VERYTEK for configuration selection, vehicle fitment and pricing.

More product introductions：(3.56M) AI+thermal+imaging+night+vision+system+5-inch+7-inch260713

Auto thermal imaging product series：(11.5M) Automotive thermal imaging product series-250716_translated

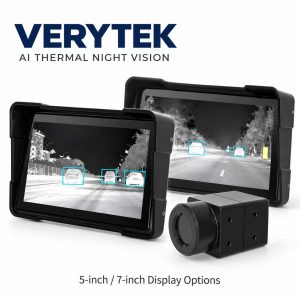

5-Inch Car Thermal Imaging Night Vision System with AI Recognition
The VERYTEK 5-Inch Car Thermal Imaging Night Vision System combines a 256 × 192 thermal camera with an IPS touchscreen to provide an additional view of the road in darkness. AI recognition, adjustable warning zones and USB recording make it suitable for aftermarket vehicle installation.
- Thermal Camera: 12 μm VOx detector, 256 × 192 resolution and 10 mm lens.
- Touchscreen Display: 5-inch IPS screen with 1024 × 600 resolution.
- AI Recognition: Pedestrian, animal and vehicle recognition with adjustable sensitivity.
- Warning Settings: Three configurable warning zones with visual and audible alert functions.
- Video Recording: USB drive recording and on-screen playback.
- External Installation: IP67 camera with automatic defrost heating.
Driver assistance only; the system does not control steering or braking.

User Manual : 5-inch+Auto+Thermal+Imaging+User+Manual+260519
UE12L 1280×1024 Ethernet Uncooled Thermal Imaging Module
The VERYTEK UE12L is a high-resolution Ethernet thermal imaging module featuring a 1280 × 1024 uncooled VOx detector, 12 μm pixel pitch, and 30 Hz operation. With ONVIF support, RTSP streaming, and H.264/H.265 video encoding, it provides a network-ready thermal imaging platform for OEM cameras and integrated surveillance systems. Additional capabilities include 1–8× digital zoom, image enhancement, motion and intrusion detection, and lens driving.
- 1280 × 1024 resolution with a 12 μm uncooled VOx detector
- 8–14 μm long-wave infrared spectral range
- NETD <40 mK at f/1.0, 30 Hz, and 300 K
- Ethernet output with TCP/IP, HTTP, RTSP, and ONVIF support
- H.264/H.265 video encoding and 1–8× digital zoom
- DC 12 V input; steady-state power consumption ≤2.5 W at 25°C
- 43 × 43 × 56 mm and <250 g, excluding the lens
User Manual：UE12L Ethernet Uncooled Thermal Imaging Module
UVG6 Uncooled Infrared Thermal Imaging Module | 640×512 / 12μm

The UVG6 uncooled thermal imaging module integrates a new-generation wafer-level packaged 640×512 VOx infrared detector together with the latest image processing algorithms, delivering clear, stable, and highly detailed thermal images.

Featuring an ultra-compact mechanical design, the module measures only 17 × 17 mm.It offers low power consumption, rich interface options, strong expandability, and easy integration, making it ideal for rapid deployment into various compact and lightweight electro-optical systems. Its small form factor helps significantly reduce overall system size while enhancing design flexibility and integration efficiency.

The UVG6 module is well suited for a wide range of applications, including handheld thermal imagers, ADAS automobile driving assistance system, public security and surveillance systems, industrial inspection equipment, outdoor observation devices, and other embedded infrared imaging applications.

User Manual_UVG6 thermal imaging module V1.3
UVL12 Series Uncooled HD Thermal Imaging Module | 1280×1024 / 12μm

UVL12 Series Uncooled Thermal Imaging Core module is developedbased on 1280×1024 high resolution infrared
detector,featuringsupreme high imaging quality and various of functions,it is reliableand stable which fits in different kinds of
complex environments,meeting the demands of the users for high definition image,highframerate and detection in remote distance.
1.Supports 30Hz/50Hz output.
2.Low power consumption and stable performance.
3.Supports analog HDand various digital interface outputs.
4.Supports ethernet interface output.
5.Solar burn protection for infrared detector is optional.
6.Supports zoom lens control and auto-focus.

User Manual_UVL12 Thermal Imaging Module V1.2

UVL12-Description
UVT Series Uncooled Infrared Thermal Imaging Module | 640 × 512 @ 12μm

UVT Series Uncooled IR Thermal Imaging Module is a compact miniaturized thermal imaging solution for space-constrained applications.

Adopting latest uncooled infrared detector and image processing algorithms, it offers stable performance, abundant interfaces, small size, light weight and low power consumption.

Widely used for UAV optoelectronic pod, security surveillance, outdoor thermal imager integration and secondary development.
UVH Series Uncooled Infrared Imaging Module | 1280 × 1024

UVH Series Uncooled IR Thermal Imaging Core – built with 1280×1024 high-resolution infrared detector.

Features excellent image quality, full-function configuration, and stable operation in complex environments.

Satisfies requirements for high-resolution imaging, high frame rate and long-distance detection.

Adopts dedicated ASIC design with high cost-performance

Supports all types of uncooled infrared detectors

Compact, lightweight and low power consumption

Integrated multiple algorithms for clear image and stable operation

Mass producible for optoelectronic systems, security monitoring, car night vision, IoT and Industry 4.0
