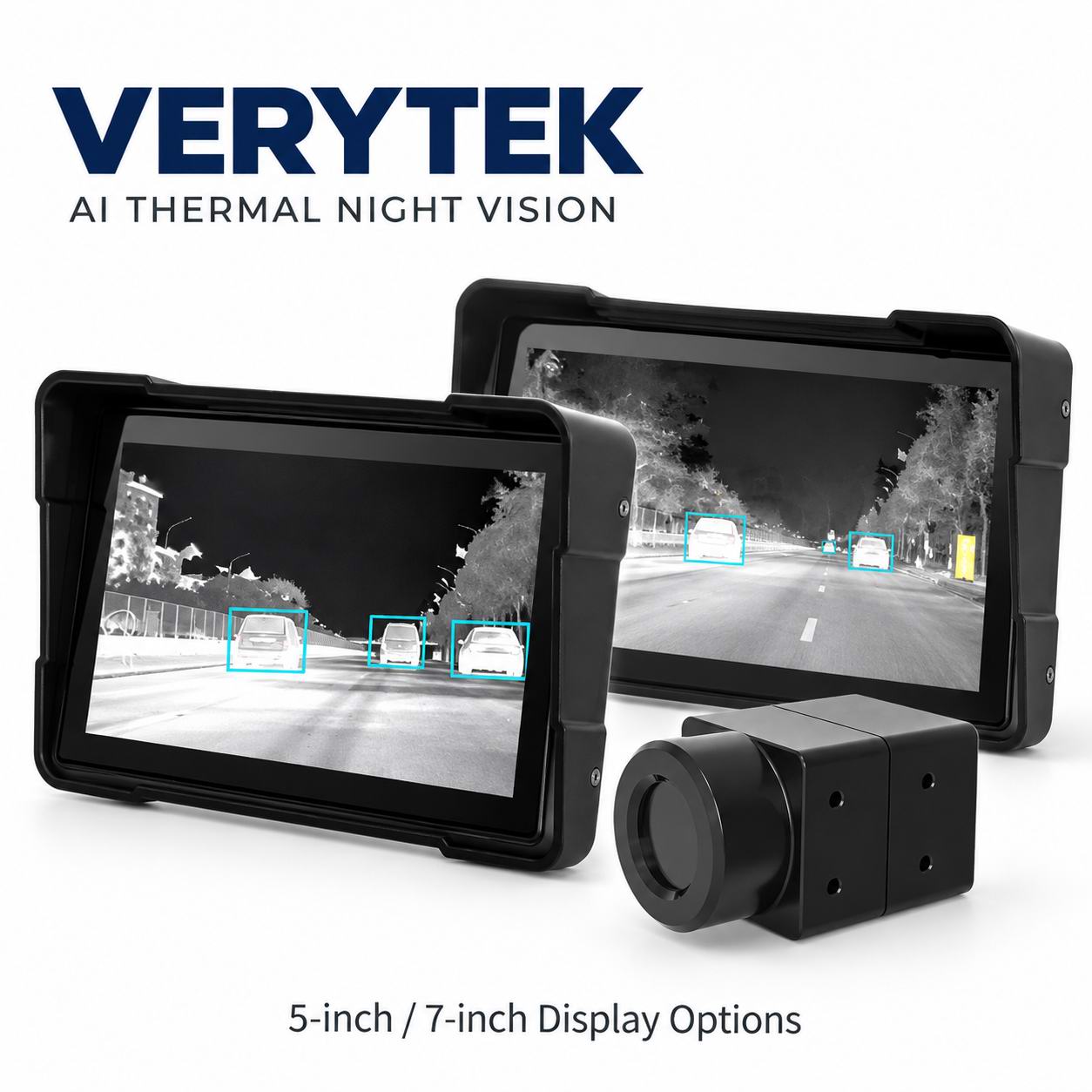

The VERYTEK 5-inch car thermal imaging night vision system is an aftermarket driving assistance system combining an external 256 × 192 thermal camera with a 5-inch IPS touchscreen. It displays thermal road imagery and supports AI recognition of pedestrians, animals and vehicles, with configurable warning zones and USB video recording.
Designed for drivers who frequently travel on poorly lit roads, it adds a thermal view of the road ahead without relying on visible illumination. The driver remains responsible for observing the road and controlling the vehicle.
Product Highlights
- 256 × 192 thermal camera with a 12 μm VOx detector.
- 10 mm lens with an 18° × 13° field of view.
- 5-inch IPS touchscreen with 1024 × 600 display resolution.
- AI recognition of pedestrians, animals and vehicles.
- Three adjustable warning zones and configurable recognition sensitivity.
- Seven thermal palettes, including White Hot and Black Hot.
- USB drive recording and on-screen playback.
- IP67 external camera with automatic heating for defrosting.
- Ten interface languages and configurable branding options.
See Thermal Contrast on Dark Roads
The camera detects infrared radiation from surfaces and forms an image from thermal differences. Pedestrians, animals and surrounding objects can appear differently from the background even when visible lighting is limited.
Thermal imaging provides an additional viewing channel when oncoming headlights make a visible-light view difficult to interpret. Performance still depends on thermal contrast, weather, lens cleanliness and installation. Heavy rain, dense fog and similar conditions can reduce visibility and recognition performance.
AI Recognition and Adjustable Warning Zones

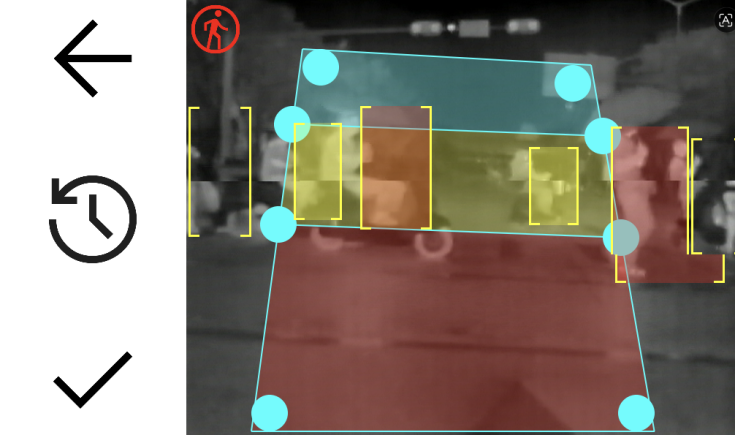

The system supports recognition boxes for pedestrians, animals and vehicles. Drivers can configure three warning zones and adjust recognition sensitivity on the touchscreen to suit installation and road conditions.
The manual reports pedestrian detection at approximately 80–100 m at an ambient temperature of 23 ± 5°C. This is a reference under stated conditions, not a guaranteed warning distance. Animal detection depends on target size; the manual’s maximum 60 m reference applies to animals taller than 1.7 m.
Visual and audible warning functions are provided. Vehicle-specific audible warning behavior should be confirmed for the supplied firmware, as the manual contains different descriptions. The system provides assistance; it does not apply the brakes or steer the vehicle.

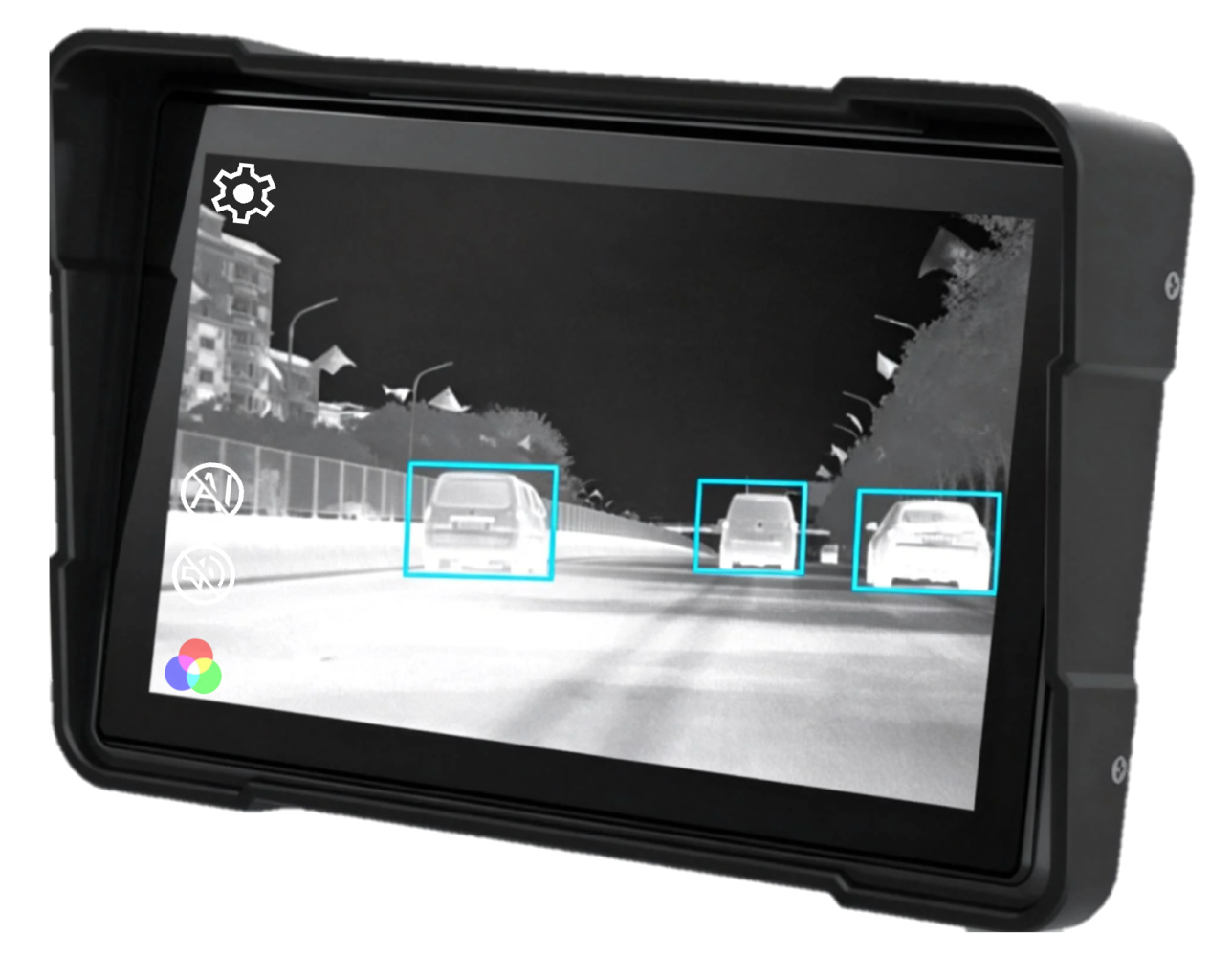

5-Inch Touchscreen with Recording and Display Controls
The display integrates the recognition processing and touchscreen controls in one unit. Users can adjust brightness, contrast, warning volume and recognition sensitivity, mute audible alerts, or disable AI recognition while retaining the thermal viewing function.
Seven palettes are available: White Hot, Black Hot, Ironbow, Hot, Rainbow, Lava and Red Hot. USB recording and playback let users review captured thermal footage.
The interface supports Simplified and Traditional Chinese, English, French, Russian, Korean, Arabic, Spanish, German, Japanese and Portuguese, grouped as ten language options in the manual.
External Camera with Defrost Heating

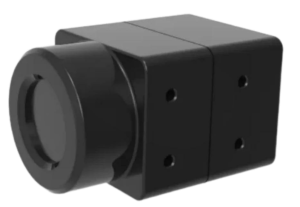

The compact camera measures 40 × 30 × 26 mm and weighs 60 g. Its IP67 protection rating and automatic heating for defrosting support external vehicle installation. Protect cable connections during installation and keep the optical window clean.
The camera must be mounted outside the passenger compartment because the thermal view cannot operate through a conventional vehicle windshield. A front-grille position with a clear view is recommended.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product type | Aftermarket automotive thermal night vision assistance system |
| Thermal detector | 12 μm VOx |
| Thermal camera resolution | 256 × 192 |
| Lens / field of view | 10 mm / 18° × 13° |
| Thermal image frame rate | ≤25 Hz |
| Image correction | Automatic shutter correction |
| Camera protection | IP67 |
| Camera heating | Automatic defrost heating supported |
| Camera dimensions / weight | 40 × 30 × 26 mm / 60 g |
| Display | 5-inch IPS touchscreen, 1024 × 600 |
| Operating system | Linux |
| Recognition categories | Pedestrians, animals and vehicles |
| Warning zones | Three configurable levels |
| Recording | USB drive recording and playback |
| Thermal palettes | Seven |
| Power consumption | ≤5 W; ≤7 W when heating, as listed in the manual |
| Supplied power stabilizer | 9–32 V input / 12 V output |
| Operating temperature | −30°C to +70°C |
| Display dimensions | 142 × 38 × 97 mm |
| External alert signal | 3.3 V signal output; interface circuit required |
The 1024 × 600 value is the display resolution; the thermal detector resolution is 256 × 192. Confirm the delivered hardware, firmware and accessory configuration when ordering.
Installation for Aftermarket Vehicle Projects

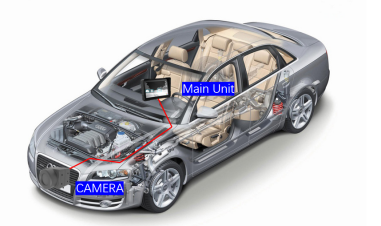

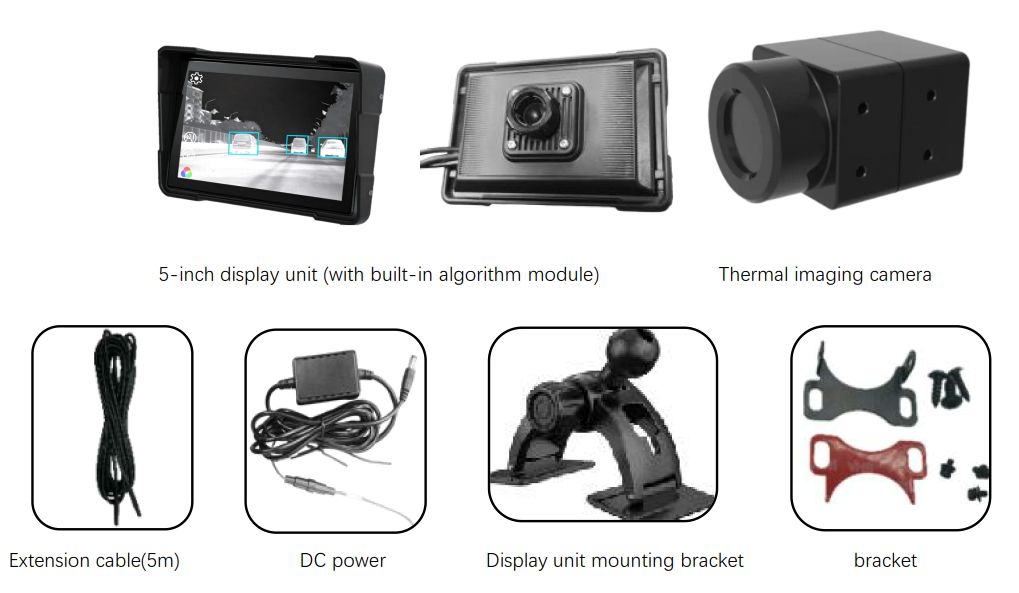

The kit uses an external thermal camera and an in-cabin display. Mount the camera securely near the front grille, route the cable away from heat and moving parts, and place the display where it does not obstruct the driver’s view or airbags.
Use the supplied voltage stabilizer and a verified switched ACC circuit. Align the camera so that the horizon appears near the middle of the image, then configure the warning zones after installation. Professional installation is recommended; vehicle compatibility depends on mounting space, cable routing and the electrical system.
The 3.3 V alarm output is a signal interface and must not directly power a horn or other load.
Who Is This System For?
This configuration can be evaluated by automotive accessory distributors, installation workshops and customers seeking an additional thermal road view for nighttime travel. It is particularly relevant to aftermarket projects that need a dedicated display rather than integration into the original infotainment screen.
For branding projects, the manual lists customization of the startup video, interface logo and alert voice. Contact VERYTEK to confirm available options, minimum order quantity, development requirements and lead time.
Frequently Asked Questions
What is a car thermal night vision system?
It is a driving assistance system that uses a thermal camera to display infrared imagery of the road. This VERYTEK configuration combines an external 256 × 192 camera, a 5-inch touchscreen and AI recognition functions.
Does it work without headlights?
The thermal camera does not require visible illumination to form an image. Drivers must still use vehicle lights as required and drive according to road conditions.
Can the camera be installed behind the windshield?
No. The camera requires an external mounting position with an unobstructed thermal view. A conventional windshield blocks the infrared radiation used by this camera.
Does it detect pedestrians and animals?
It supports pedestrian and animal recognition. The manual reports pedestrian detection at about 80–100 m at 23 ± 5°C and animal detection up to 60 m for animals taller than 1.7 m. Performance varies with target size, contrast and conditions.
Can it automatically prevent a collision?
No. It provides imagery and warning assistance and does not control steering or braking. Recognition errors and missed detections are possible.
Can it record thermal video?
Yes. USB drive recording and on-screen playback are supported. Confirm supported drive capacity and recording settings for the supplied firmware.
Is it compatible with every car?
The mounting concept is intended for aftermarket vehicle use. Fitment must be checked against grille space, display placement, wiring access and power requirements for each vehicle.
Can distributors customize branding?
The manual lists startup-video, interface-logo and alert-voice customization. VERYTEK can confirm the options and commercial requirements for your order.
Request a Quote or Discuss a Distribution Project
Send VERYTEK your vehicle type, destination market, quantity and branding requirements. Request confirmation of kit contents, firmware functions, installation accessories, warranty terms and delivery schedule.
