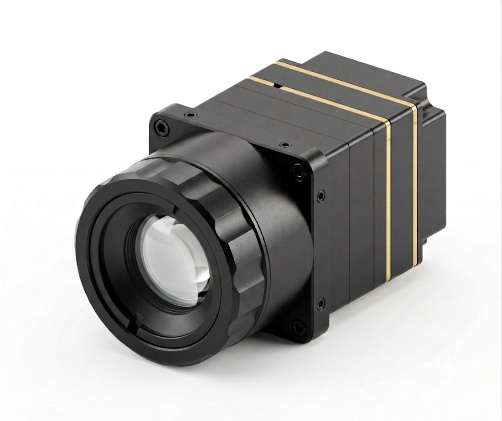

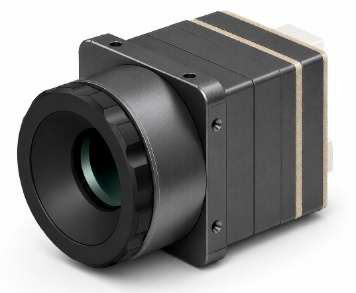

UVG6 Uncooled Infrared Thermal Imaging Module | 640×512 / 12μm

The UVG6 uncooled thermal imaging module integrates a new-generation wafer-level packaged 640×512 VOx infrared detector together with the latest image processing algorithms, delivering clear, stable, and highly detailed thermal images.

Featuring an ultra-compact mechanical design, the module measures only 17 × 17 mm.It offers low power consumption, rich interface options, strong expandability, and easy integration, making it ideal for rapid deployment into various compact and lightweight electro-optical systems. Its small form factor helps significantly reduce overall system size while enhancing design flexibility and integration efficiency.

The UVG6 module is well suited for a wide range of applications, including handheld thermal imagers, ADAS automobile driving assistance system, public security and surveillance systems, industrial inspection equipment, outdoor observation devices, and other embedded infrared imaging applications.

User Manual_UVG6 thermal imaging module V1.3

UVG6 Uncooled Infrared Thermal Imaging Module | 640×512 / 12μm

Features：
Outstanding Thermal Imaging Performance
Low Power Consumption
Multiple Video Output Formats Supported
External Synchronization Input Supported
16-bit RAW Data Output Available
Highly Expandable Architecture with Flexible Interface Options

Typical Applications：
Handheld thermal imagers
ADAS automobile driving assistance system
Security and surveillance system
Outdoor Observation and Night Vision Applications

Technical Specifications

Detector	VOx uncooled microbolometer
Resolution/Pixel size	640×512 / 12μm
Spectral Range	8μm ~ 14μm
NETD	≤40mK@F1.0, 25℃
Frame Rate	50Hz (optional 60Hz)
Thermal Time Constant	< 12ms
Typical Lens Options	4.1/4.6/6.8/9.1/13/15/19mm, etc.
NUC Correction	Manual/Auto shutter correction
Brightness/Contrast	Manual/Auto Adjustment
Image Denoising/DDE	Adjustable
Dead-pixel Correction	Support
Digital Zoom	1× ~ 8×
Image Mirroring	Vertical/Horizontal/Diagonal
Image Palettes	White Hot/Black Hot/Various Pseudo-color modes
Analog Video Output	CVBS
Digital Video Output	USB2.0 (MIPI, BT656 customizable)
Power Supply	CVBS/MIPI:DC6-15V; USB2.0:DC5V
Typical Consumption	≤ 0.6W
Communication	UART (RS232/RS422/RS485 customizable)

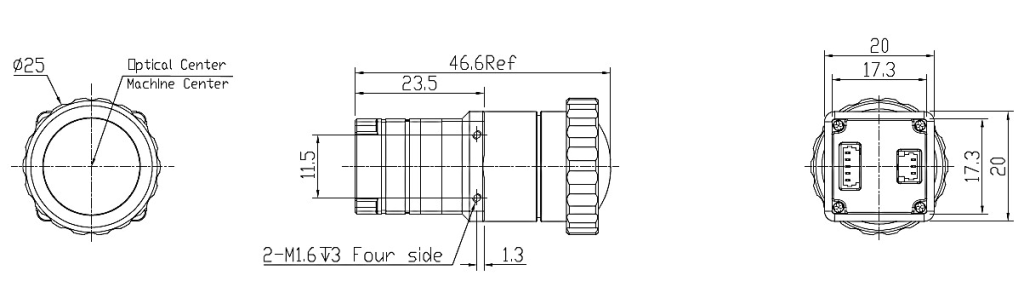

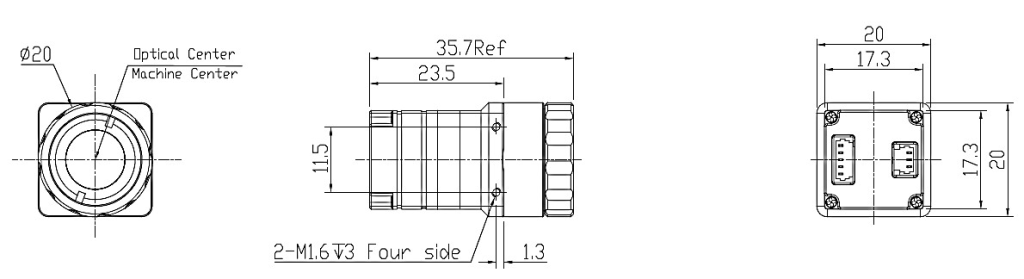

Size	≤ 17.3mm×17.3mm× 23.5mm (without lens)
Weight	≤ 28g (without lens)
Humidity	5%RH～95%RH, non-condensing
Working Temperature	-40℃～+60℃
Storage Temperature	-50℃～+70℃
Vibration	6.06g, random vibration, all axes
Shock	80g@4ms, half-sine pulse, 3 axes & 6 directions
Extensible Functions	Crosshair, hot spot tracking, external sync., RAW16 output
