Thermal Road Visibility with AI Recognition

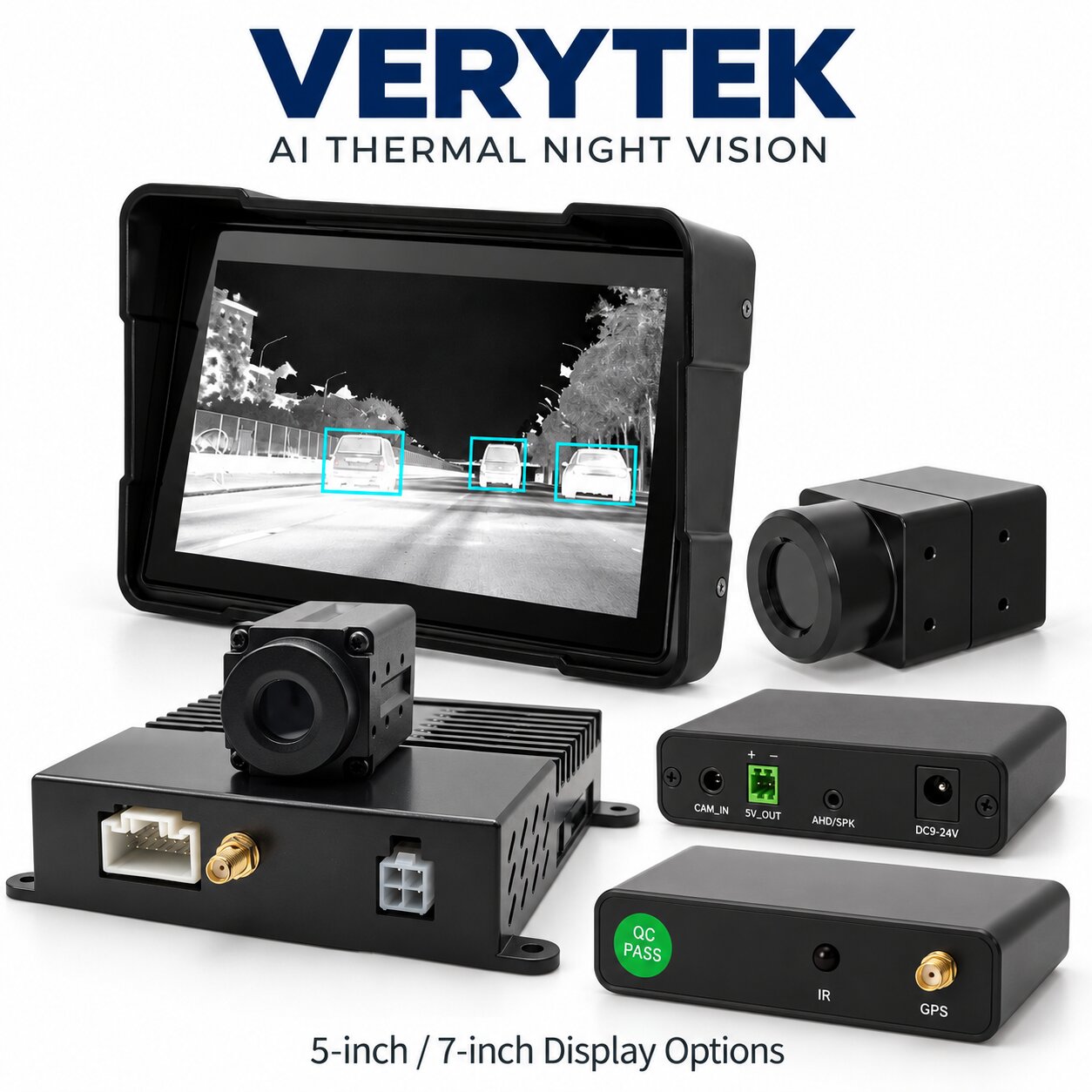

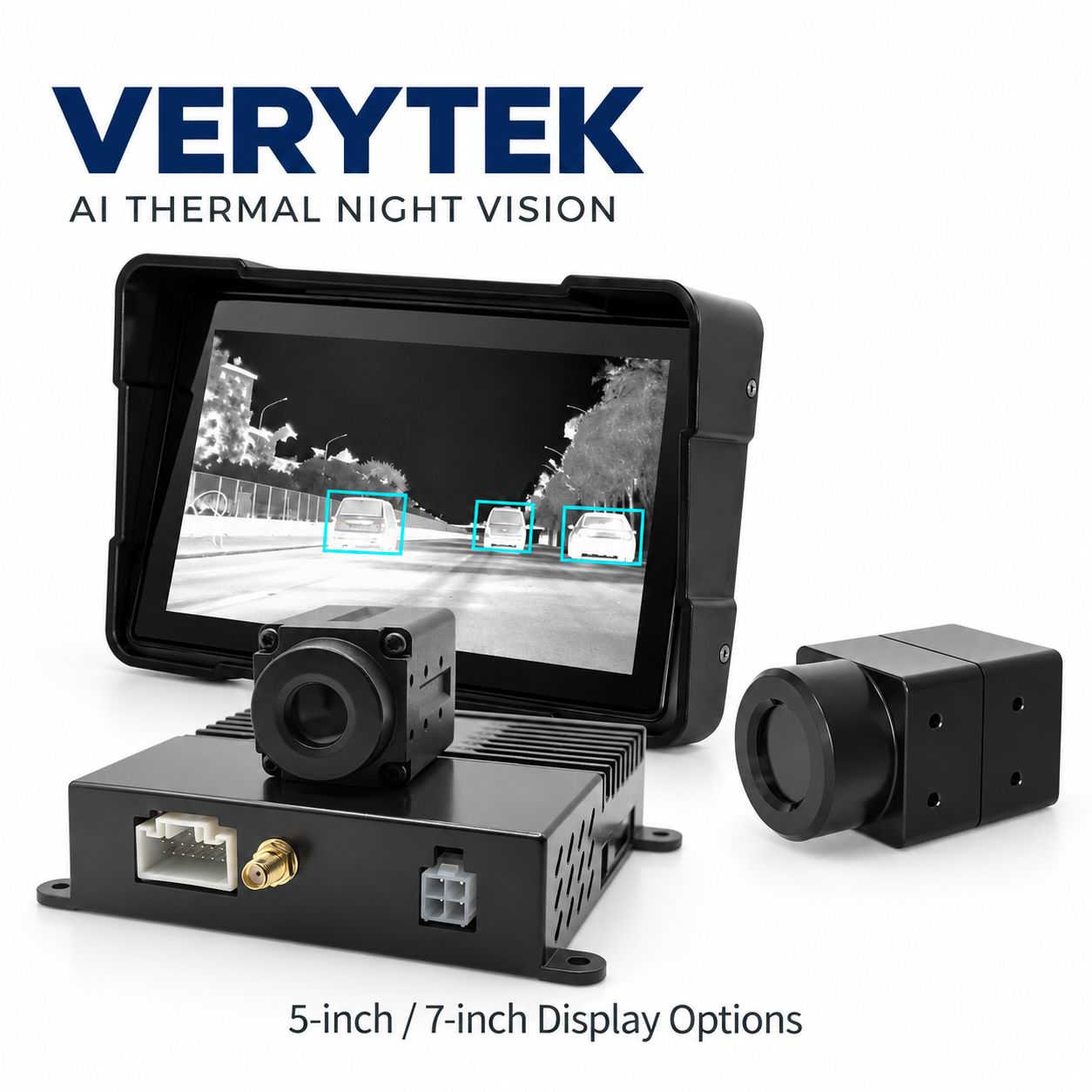

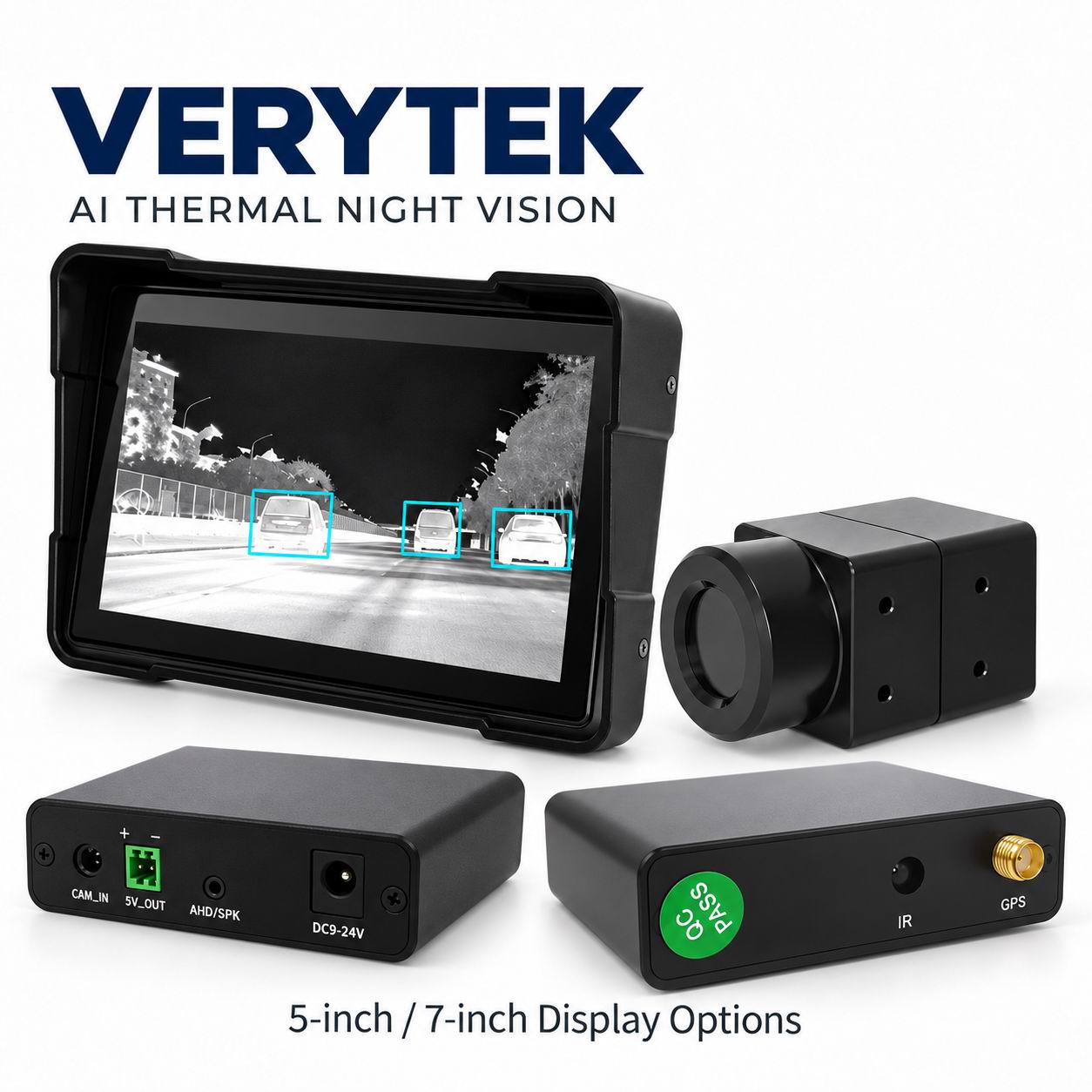

The VERYTEK AI car thermal imaging night vision system provides an additional view of the road using long-wave infrared imaging. It combines an externally mounted thermal camera with a dedicated 5-inch or 7-inch touchscreen display and integrated recognition processing.
Unlike visible-light cameras, thermal imaging forms images from infrared radiation and temperature differences on object surfaces. It does not require visible illumination to produce a thermal image, making it useful for observing pedestrians, animals and vehicles on poorly lit roads.
The system supports AI recognition, configurable warning zones, audible alerts and recording. It is intended for driving assistance and does not control vehicle steering or braking.

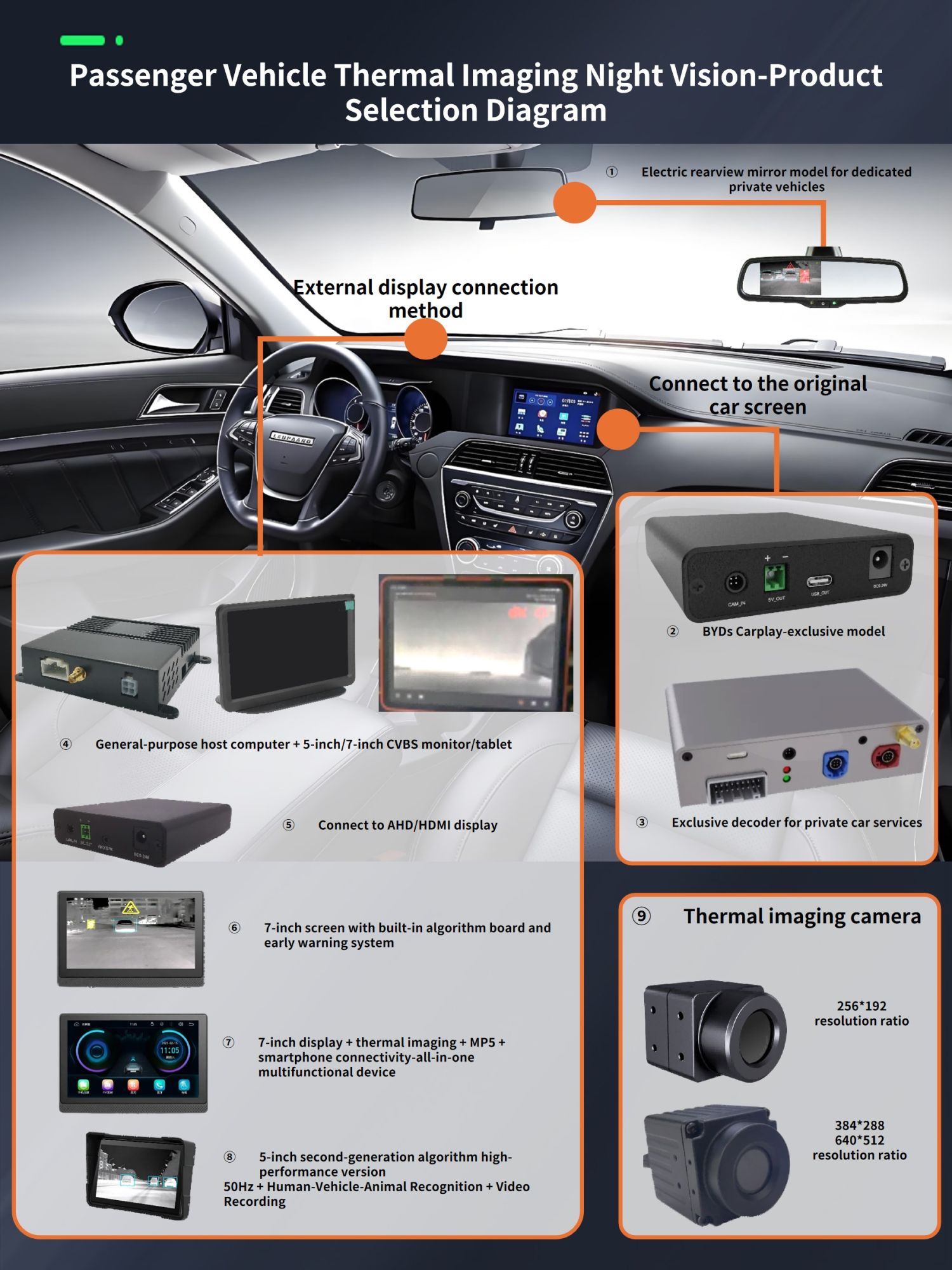

Choose the Camera and Display for Your Application
The system offers three thermal camera resolutions: 256 × 192, 384 × 288 and 640 × 512. Multiple lens configurations allow customers to select a balance between scene coverage and target detail.

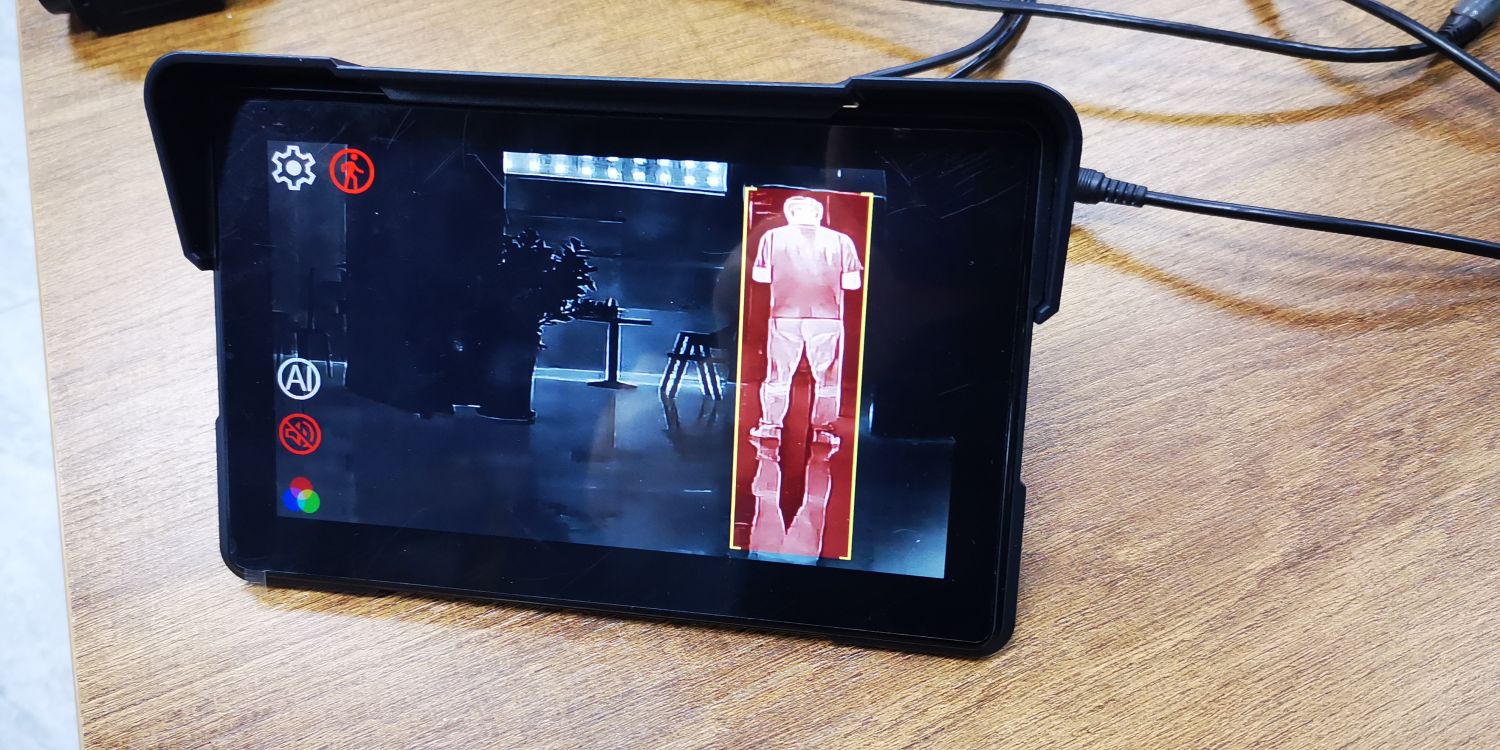

The 5-inch display offers a smaller installation footprint. The 7-inch display provides a larger viewing area. Both displays have a specified resolution of 1024 × 600.
Display resolution and thermal camera resolution are separate specifications. A larger screen does not increase the number of pixels captured by the thermal detector.
Key Features
Thermal Imaging Without Visible Illumination

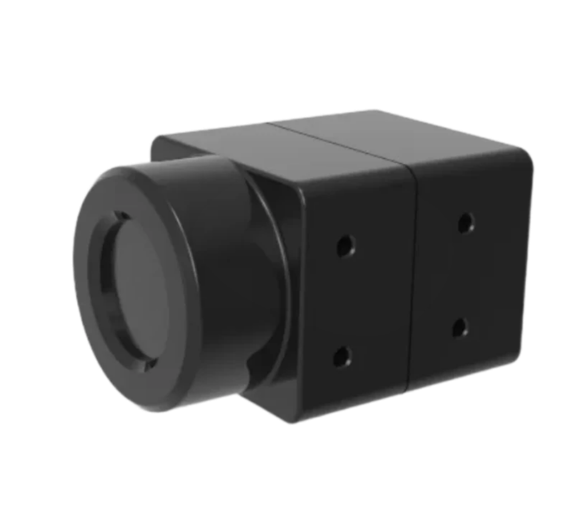

The VOx thermal camera operates in the 8–14 μm spectral range. It displays thermal contrast between objects and their surroundings, providing an additional viewing channel during nighttime driving.
Thermal imaging can complement the visible road view when headlight glare makes observation difficult. Performance depends on weather, target contrast and lens conditions; dense fog, heavy rain and other adverse conditions can reduce visibility.

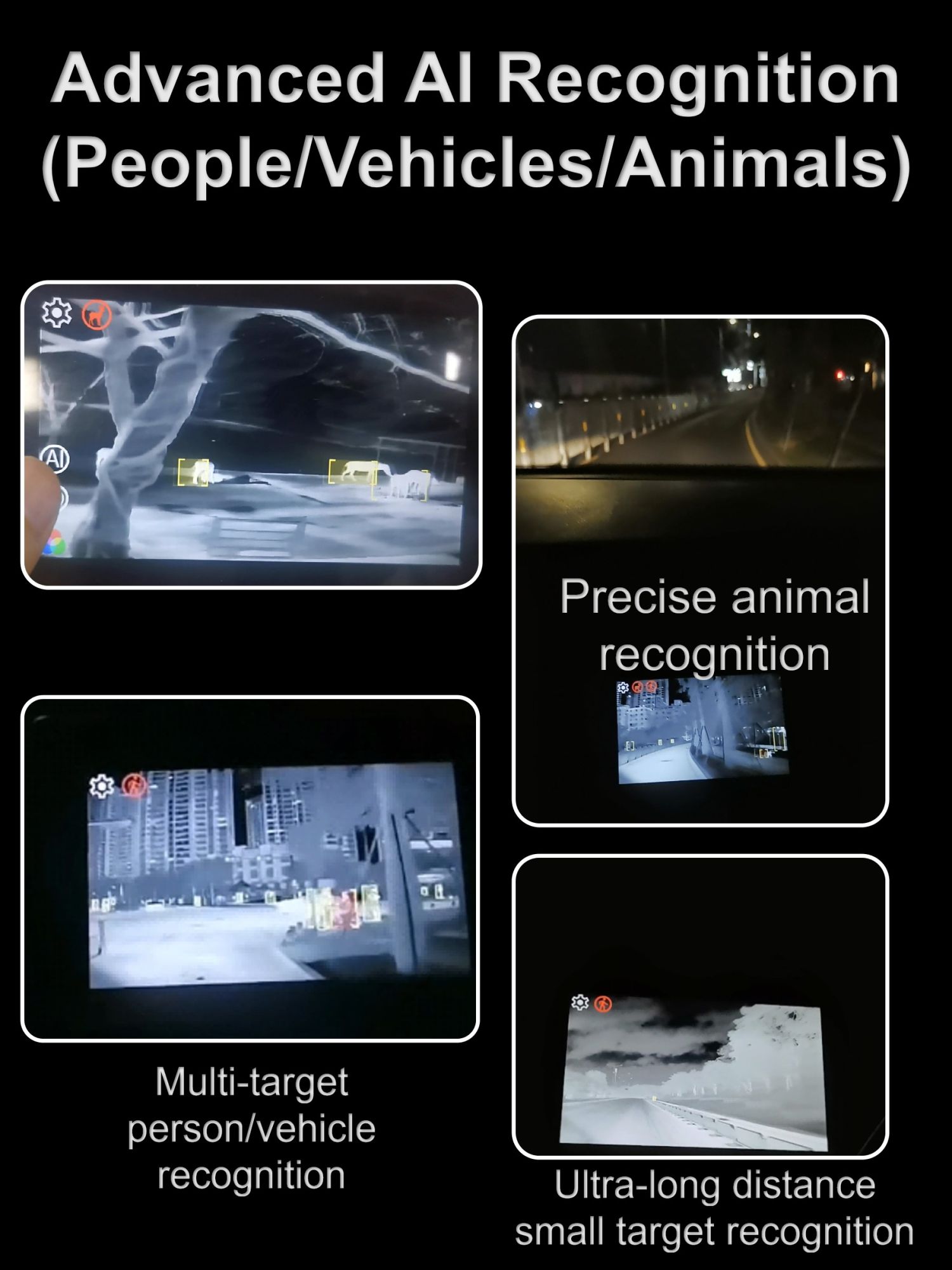

AI Recognition of Pedestrians, Vehicles and Animals

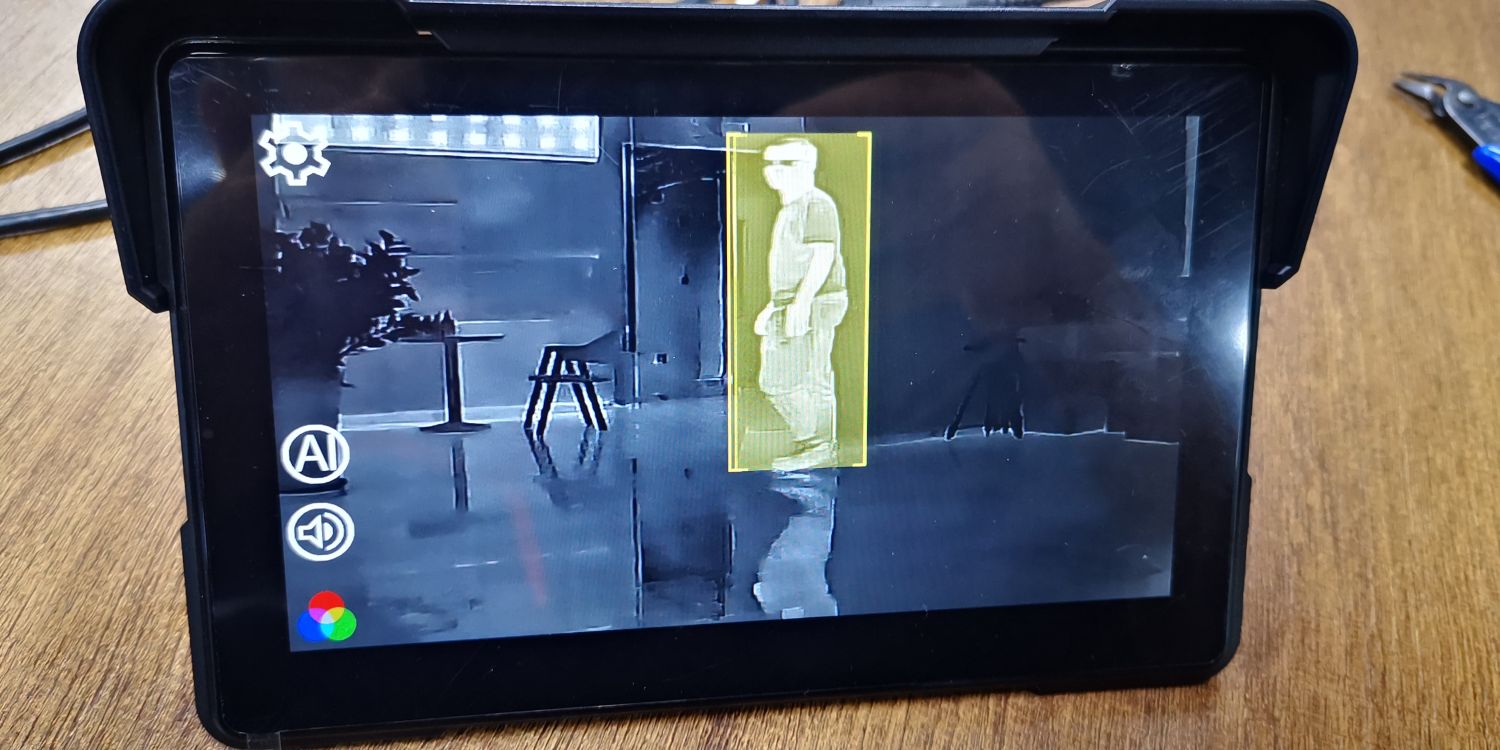

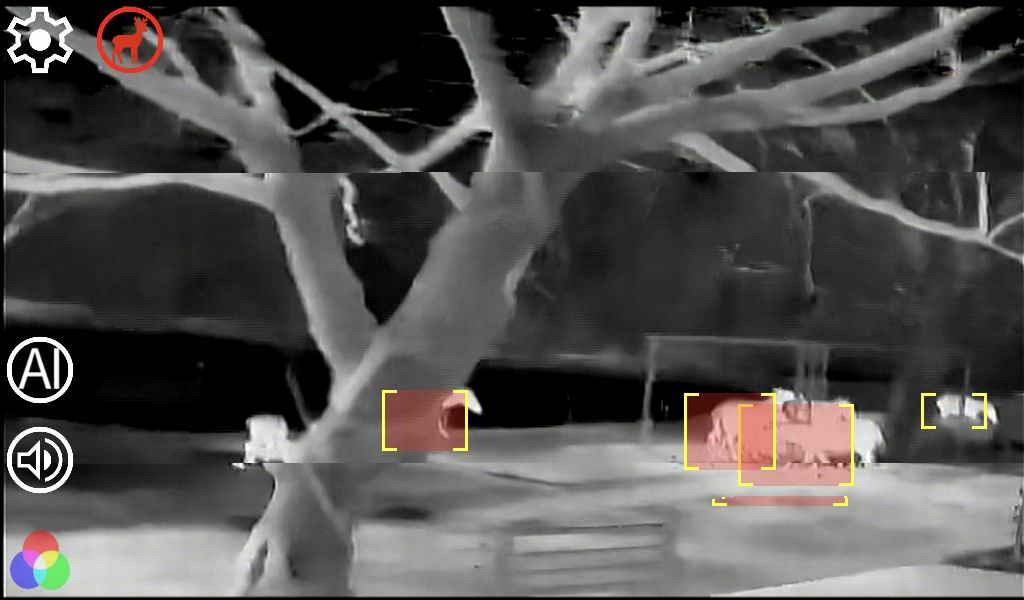

Integrated processing supports recognition of pedestrians, vehicles and animals in the thermal image.
Recognition sensitivity is adjustable, allowing installers and users to configure the system for the selected camera and operating conditions. Increasing sensitivity may also increase false detections, so settings should be evaluated after installation.
Recognition distances vary by camera resolution, lens and target size. Refer to the configuration table below rather than assuming one distance applies to every version.

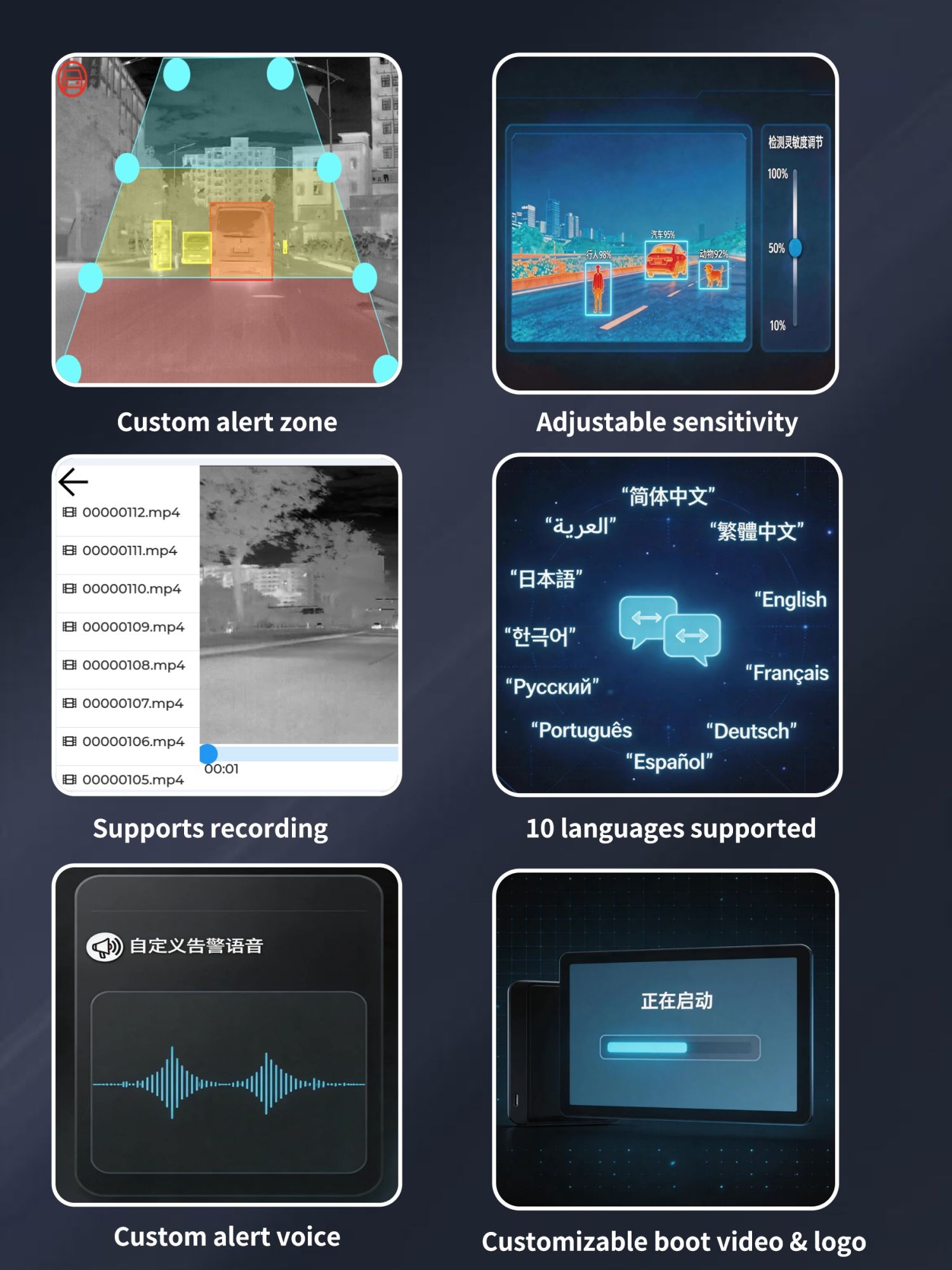

Configurable Warning Zones and Audible Alerts
Users can customize warning zones and adjust sensitivity through the touchscreen. A built-in warning speaker provides audible alerts, while a 3.3 V alarm signal output is available for compatible integration projects.
The 3.3 V output is a signal interface. Its electrical requirements must be checked before connecting external equipment.

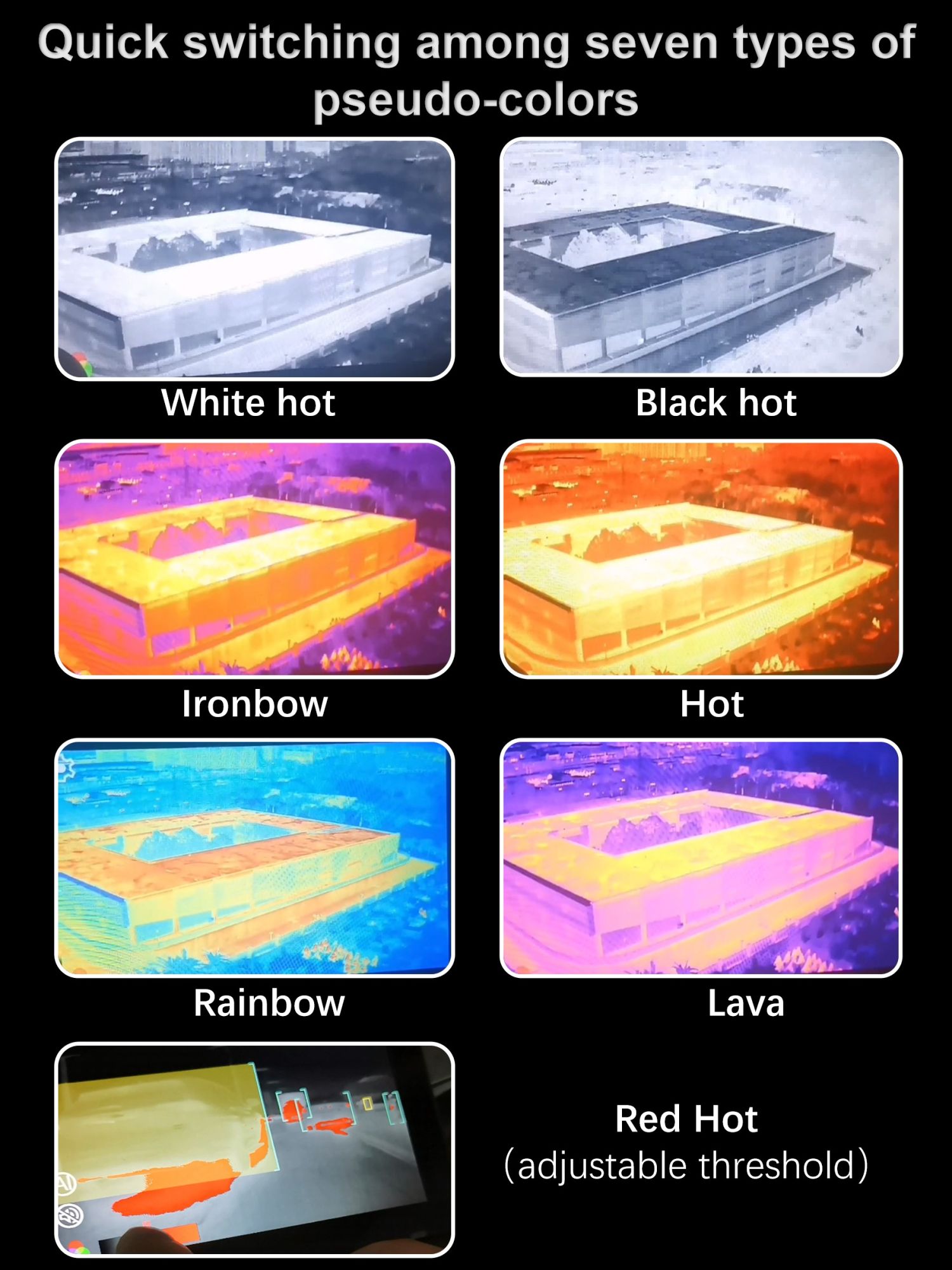

Seven Thermal Display Palettes
The system supports:
- White Hot
- Black Hot
- Ironbow
- Hot
- Rainbow
- Lava
- Red Hot
These modes give users a choice of thermal image presentation. The Red Hot mode includes an adjustable threshold.
Recording and International Interface Options
Recording support allows users to capture thermal footage for later review. The interface supports ten language options for international markets.
Customizable startup video, interface logo and alert voice are also listed, making the system relevant to automotive accessory distributors and branding projects. Available customization scope and order requirements should be confirmed with VERYTEK.

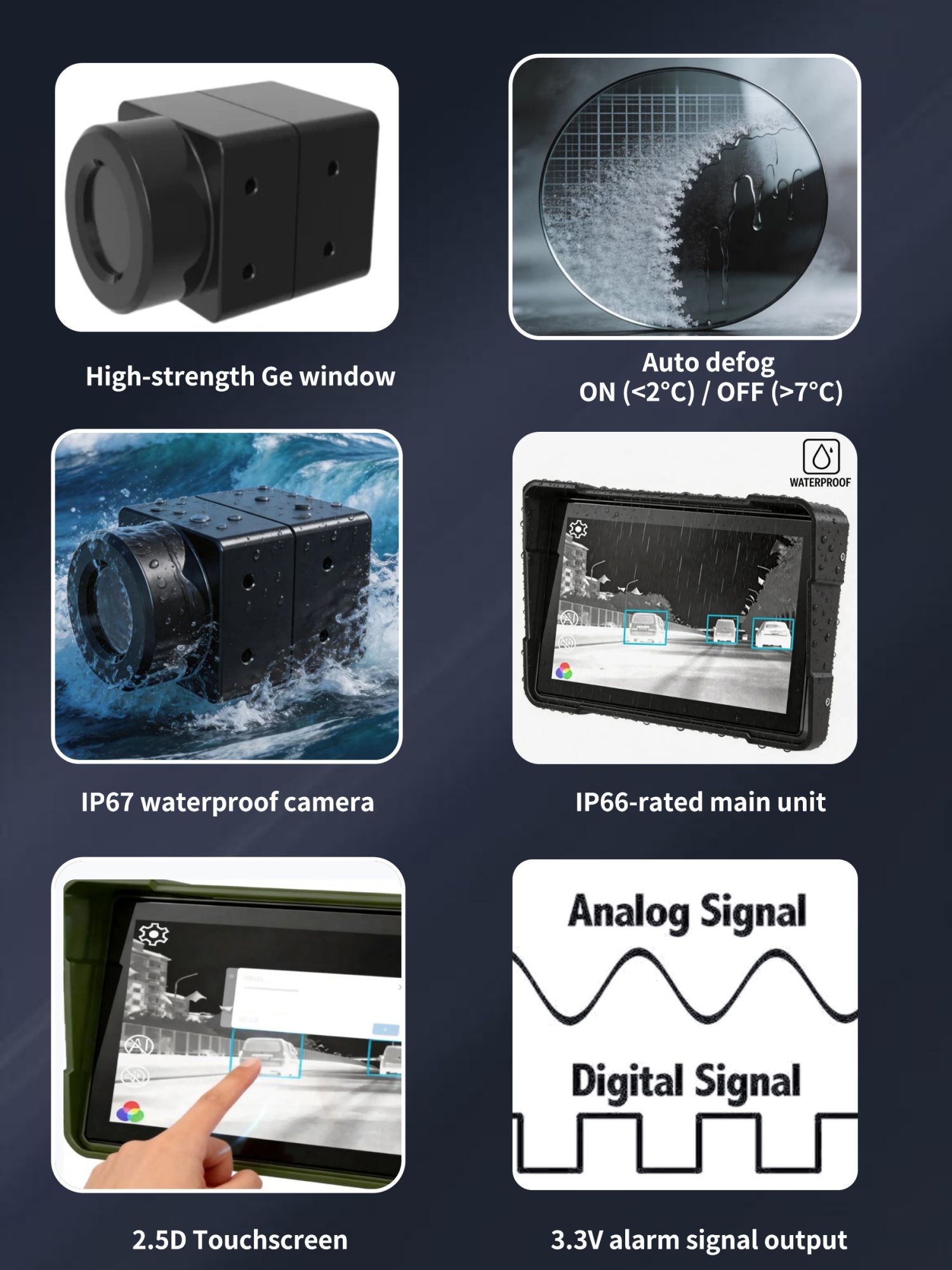

Camera Protection and Defrost Options
The product literature specifies an IP67 camera and an IP66 main unit. Selected camera configurations include a protective window and automatic defrost functionality.
For supported configurations, automatic heating switches on below 2°C and off above 7°C. Defrost support varies by lens configuration and is not included with every camera option.
Thermal Camera Configuration Options
| Camera resolution | Lens | Field of view | AI pedestrian recognition | AI vehicle recognition | AI animal recognition | Window / defrost |
|---|---|---|---|---|---|---|
| 256 × 192 | 1.5 mm | 120° × 86° | 15 m | 30 m | 10 m | Not supported |
| 256 × 192 | 4 mm | 45° × 33° | 60 m | 100 m | 40 m | Supported |
| 256 × 192 | 9.1 mm | 18° × 13° | 100 m | 200 m | 60 m | Supported |
| 384 × 288 | 9.1 mm | 29° × 22° | 100 m | 200 m | 60 m | Supported |
| 640 × 512 | 4.6 mm | 95° × 76° | 60 m | 100 m | 40 m | Not supported |
| 640 × 512 | 9.1 mm | 48° × 39° | 80 m | 200 m | 50 m | Supported |
| 640 × 512 | 13 mm | 34° × 27° | 100 m | 200 m | 60 m | Supported |
Distances are reference values listed in the product literature, not guaranteed warning distances. The stated target conditions are pedestrian height greater than 1.7 m, vehicle width greater than 2.3 m and animal height greater than 1.5 m. Actual performance depends on installation, weather, thermal contrast, target orientation and recognition settings.
How to Select a Lens
Wide-angle configurations provide broader scene coverage, with shorter listed AI recognition distances.
Narrower fields of view allocate more image detail to a smaller scene area. For example, the 256 × 192 camera with a 9.1 mm lens has an 18° × 13° field of view, while the 640 × 512 camera with a 9.1 mm lens covers 48° × 39°.
For projects requiring both broader coverage and target detail, evaluate a higher-resolution configuration. Final selection should consider mounting position, road geometry and the intended warning area.

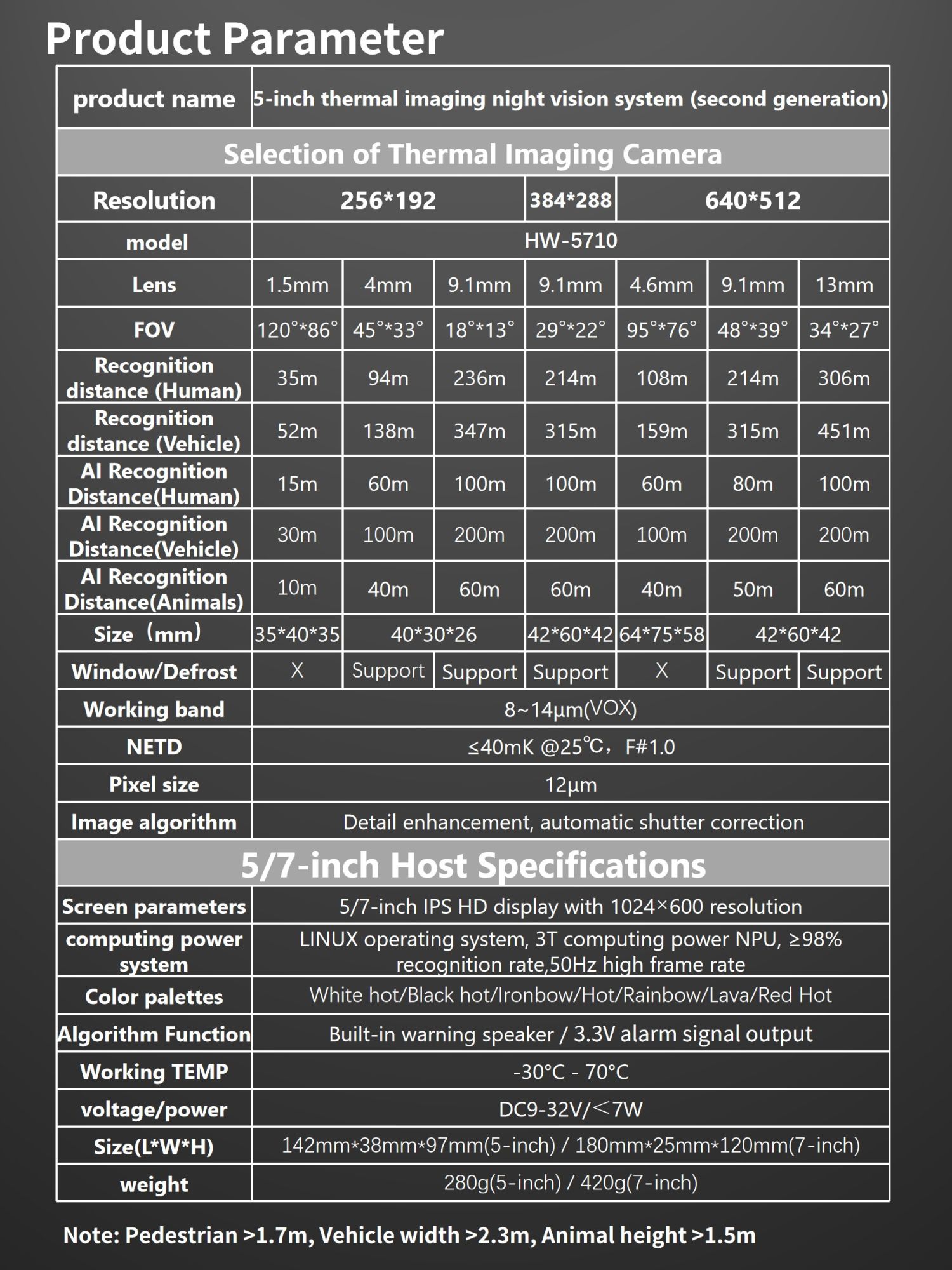

Technical Specifications
Thermal Camera Specifications
| Parameter | Specification |
|---|---|
| Detector material | VOx |
| Pixel pitch | 12 μm |
| Spectral range | 8–14 μm |
| Resolution options | 256 × 192 / 384 × 288 / 640 × 512 |
| Thermal sensitivity | NETD ≤40 mK at 25°C, F/1.0 |
| Image processing | Detail enhancement and automatic shutter correction |
| Lens options | Configuration-dependent; see selection table |
| Camera protection rating | IP67, as specified in the product literature |
| Window / defrost | Configuration-dependent |
Display and Processing Unit Specifications
| Parameter | 5-inch version | 7-inch version |
|---|---|---|
| Display type | IPS touchscreen | IPS touchscreen |
| Display resolution | 1024 × 600 | 1024 × 600 |
| Operating system | Linux | Linux |
| NPU computing power | Listed as 3T | Listed as 3T |
| Recognition categories | Pedestrians, vehicles and animals | Pedestrians, vehicles and animals |
| Thermal palettes | Seven | Seven |
| Warning interfaces | Built-in speaker and 3.3 V alarm signal | Built-in speaker and 3.3 V alarm signal |
| Supply voltage | DC 9–32 V | DC 9–32 V |
| Listed power consumption | <7 W | <7 W |
| Operating temperature | −30°C to +70°C | −30°C to +70°C |
| Dimensions | 142 × 38 × 97 mm | 180 × 25 × 120 mm |
| Weight | 280 g | 420 g |
The brochure lists 50 Hz high-frame-rate operation for the second-generation system. Confirm the delivered camera frame rate and firmware configuration when ordering. Power figures and protection ratings should also be verified for the complete selected assembly.

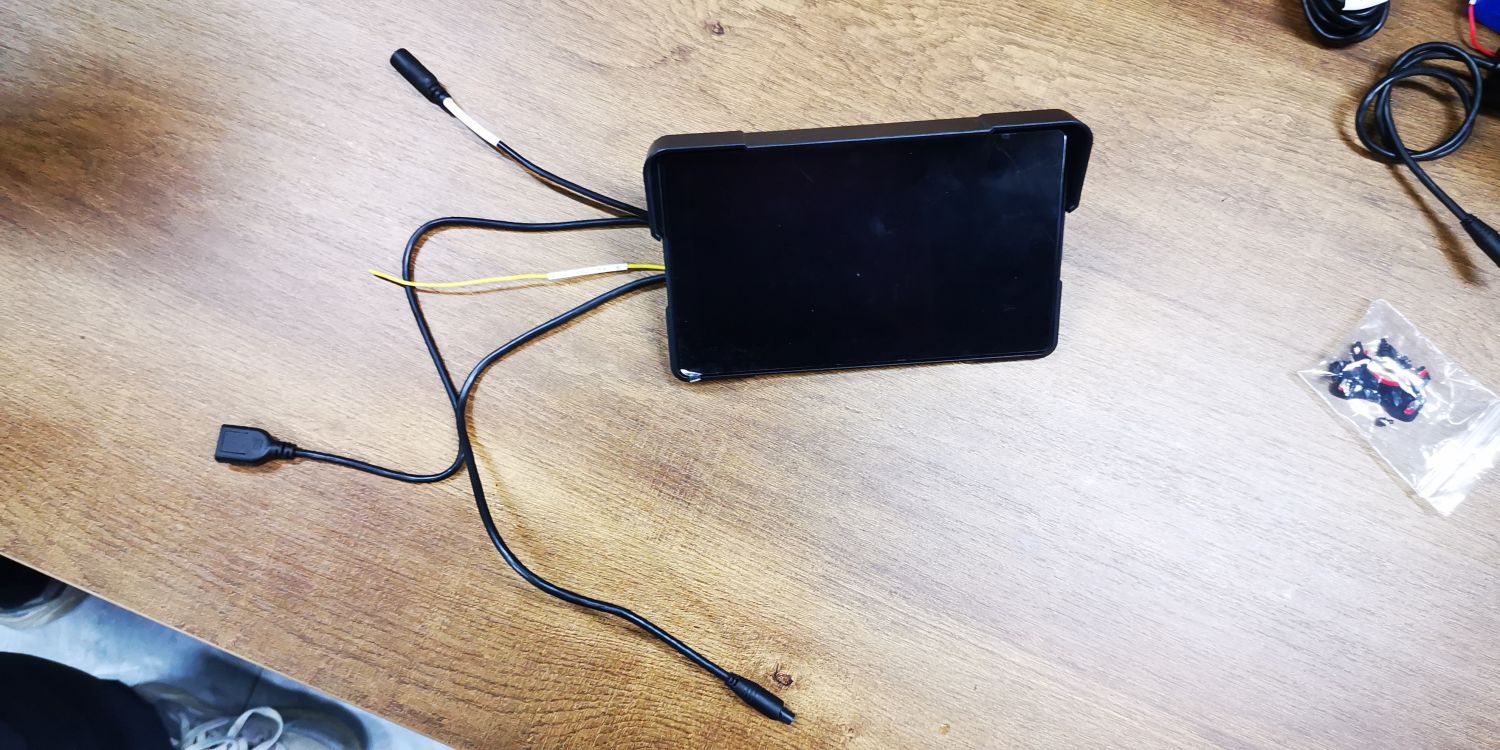

Installation and Package Configuration

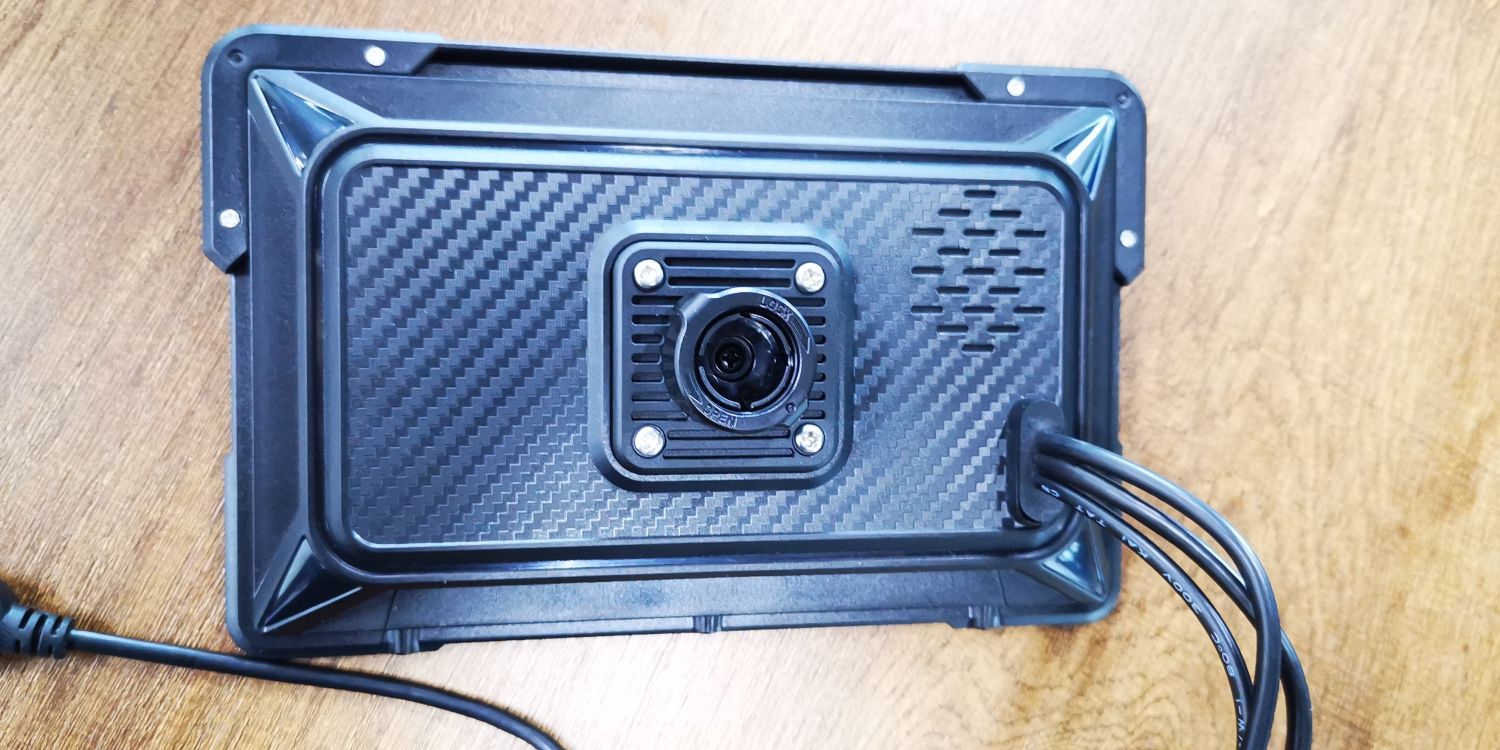

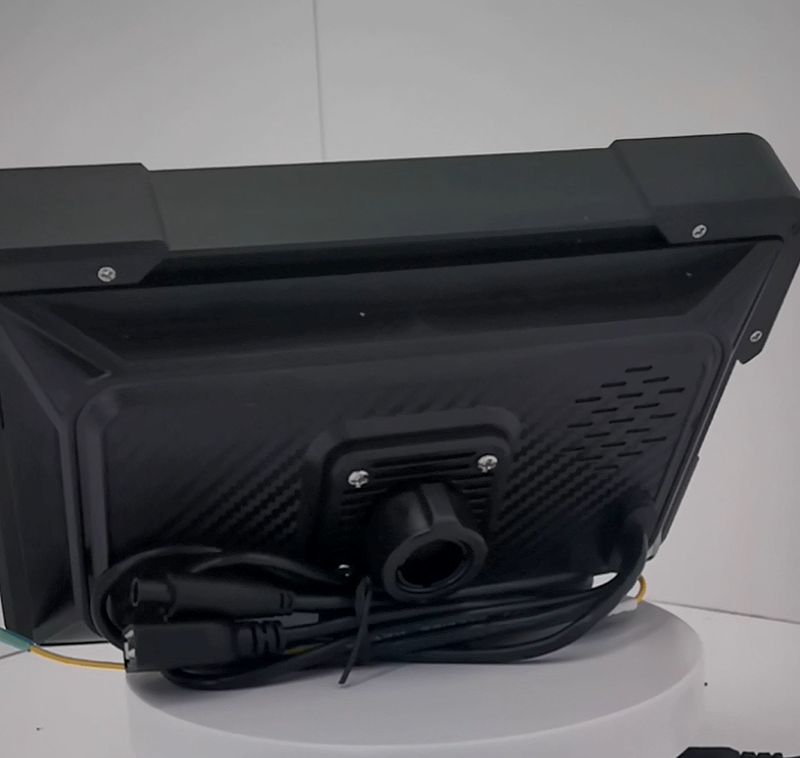

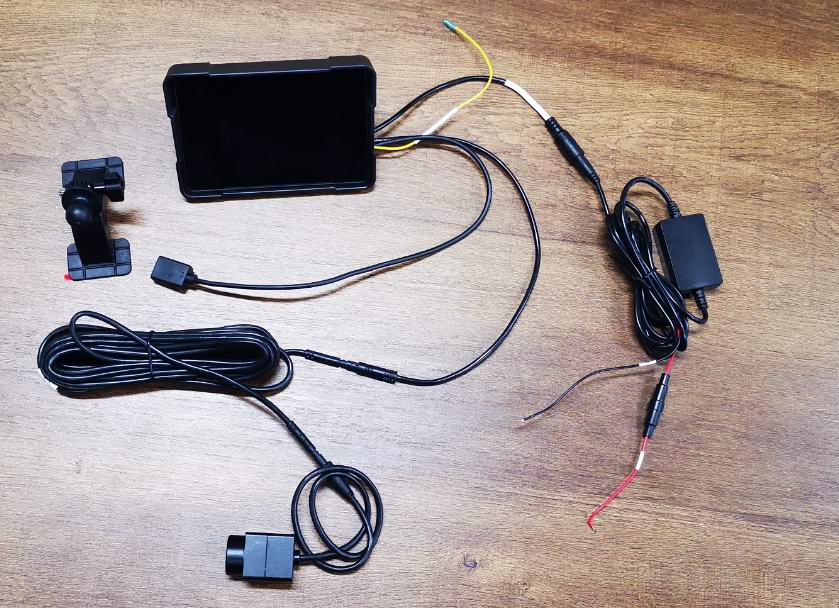

The system uses an external thermal camera connected to a dedicated display inside the vehicle. Installation should provide an unobstructed camera view and a display position that does not interfere with road visibility or vehicle controls.

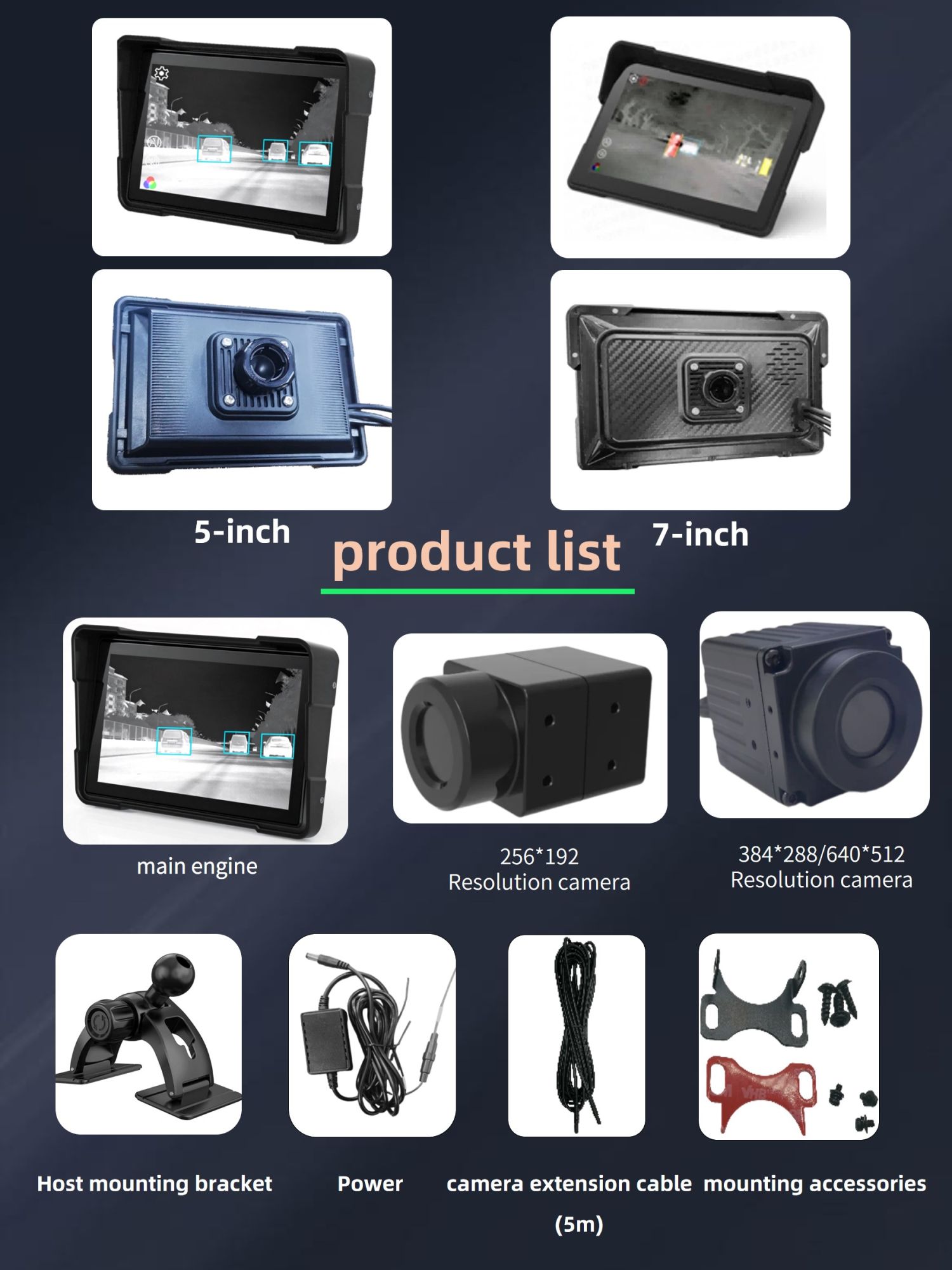

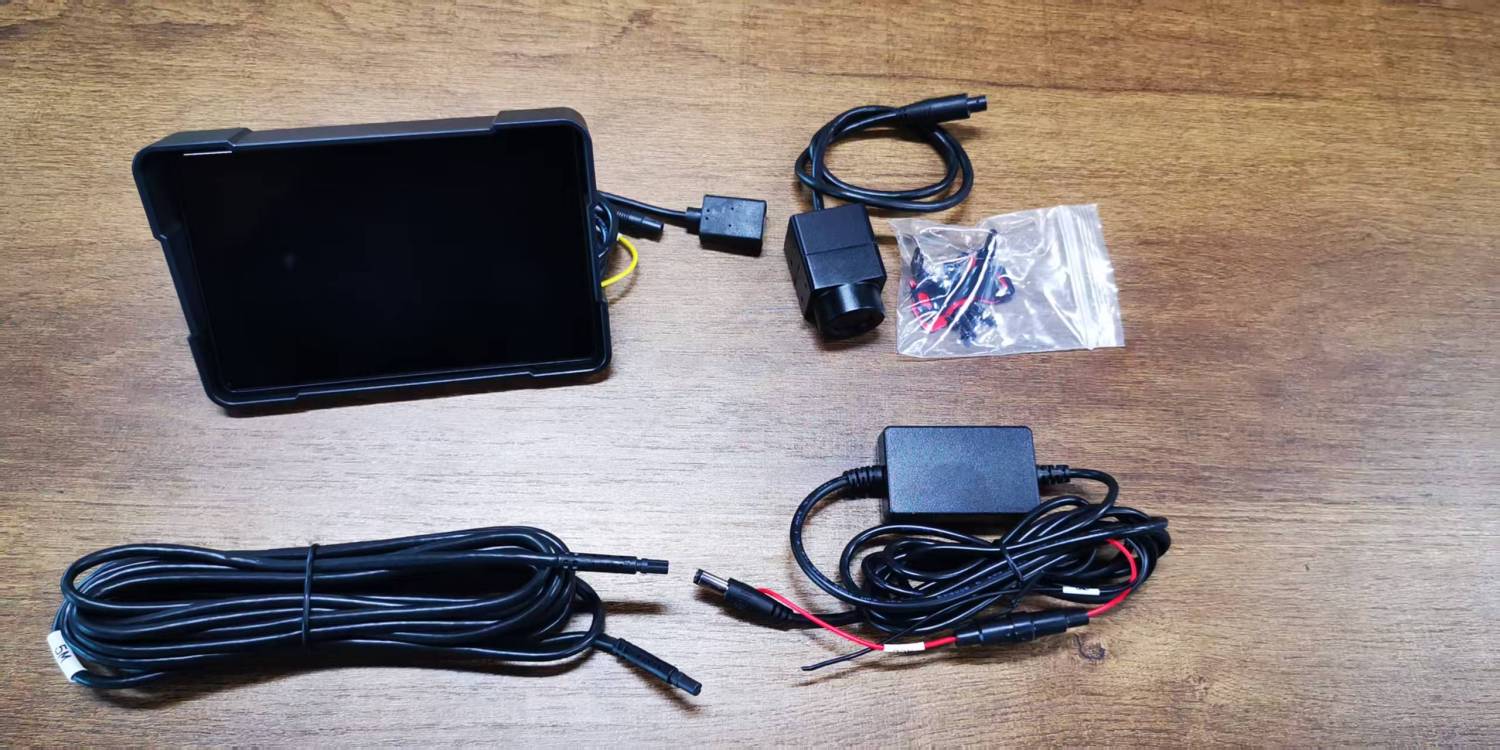

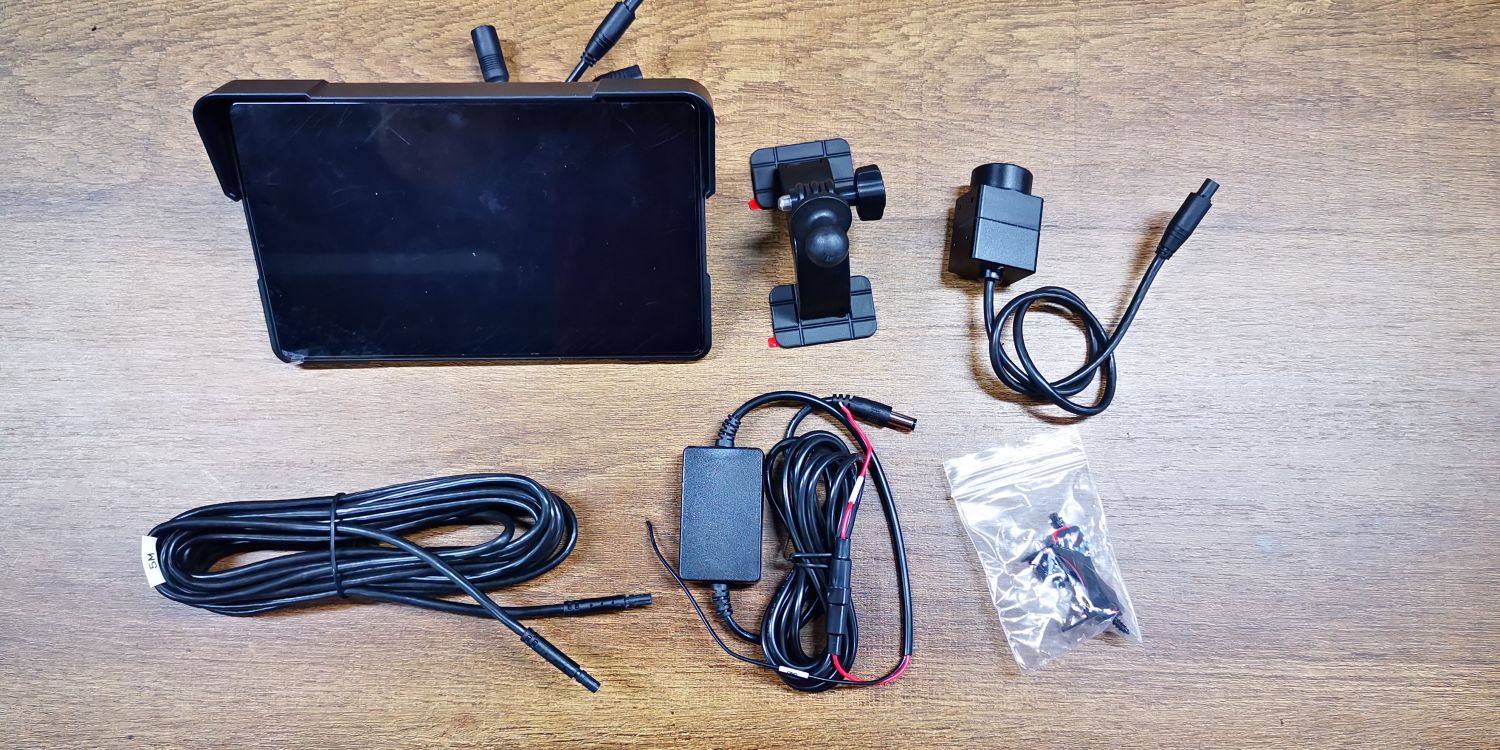

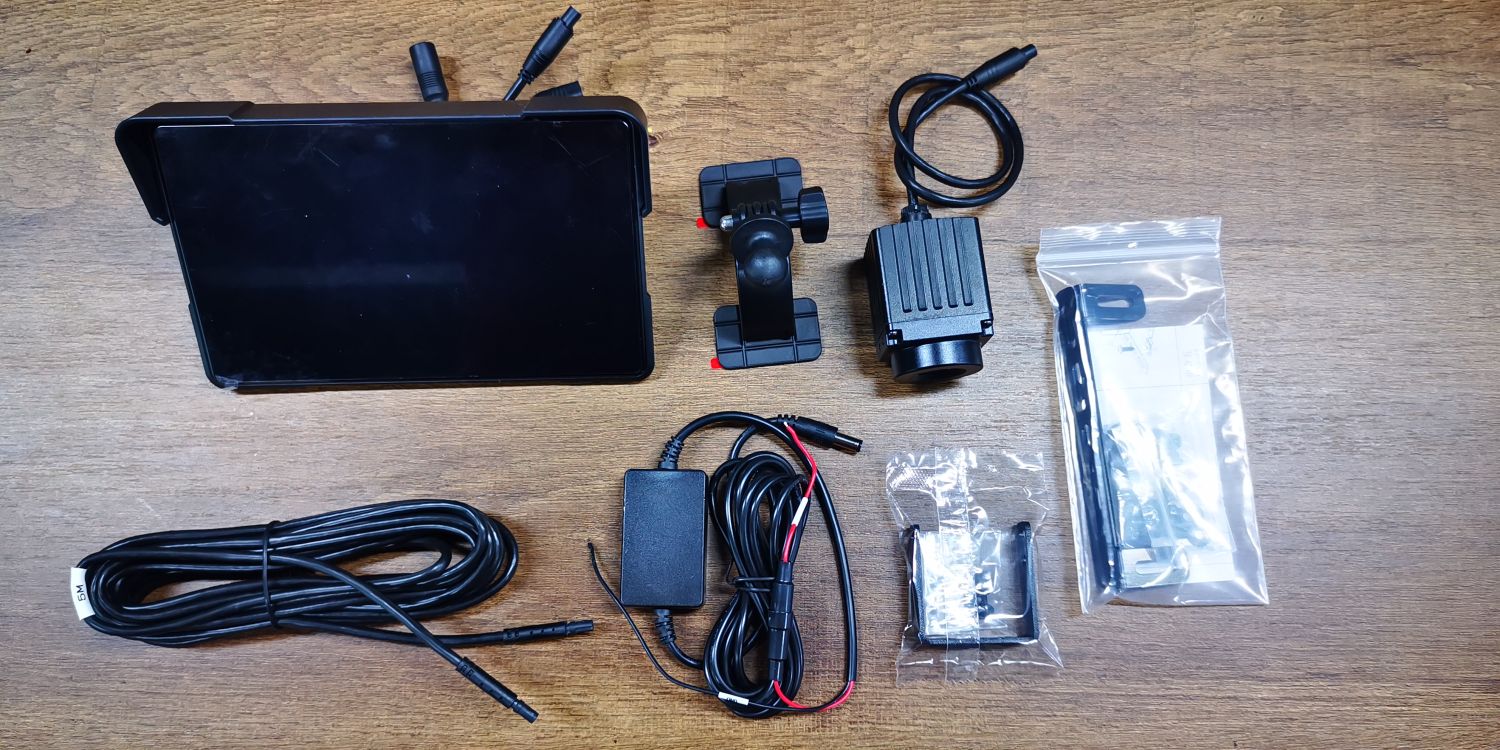

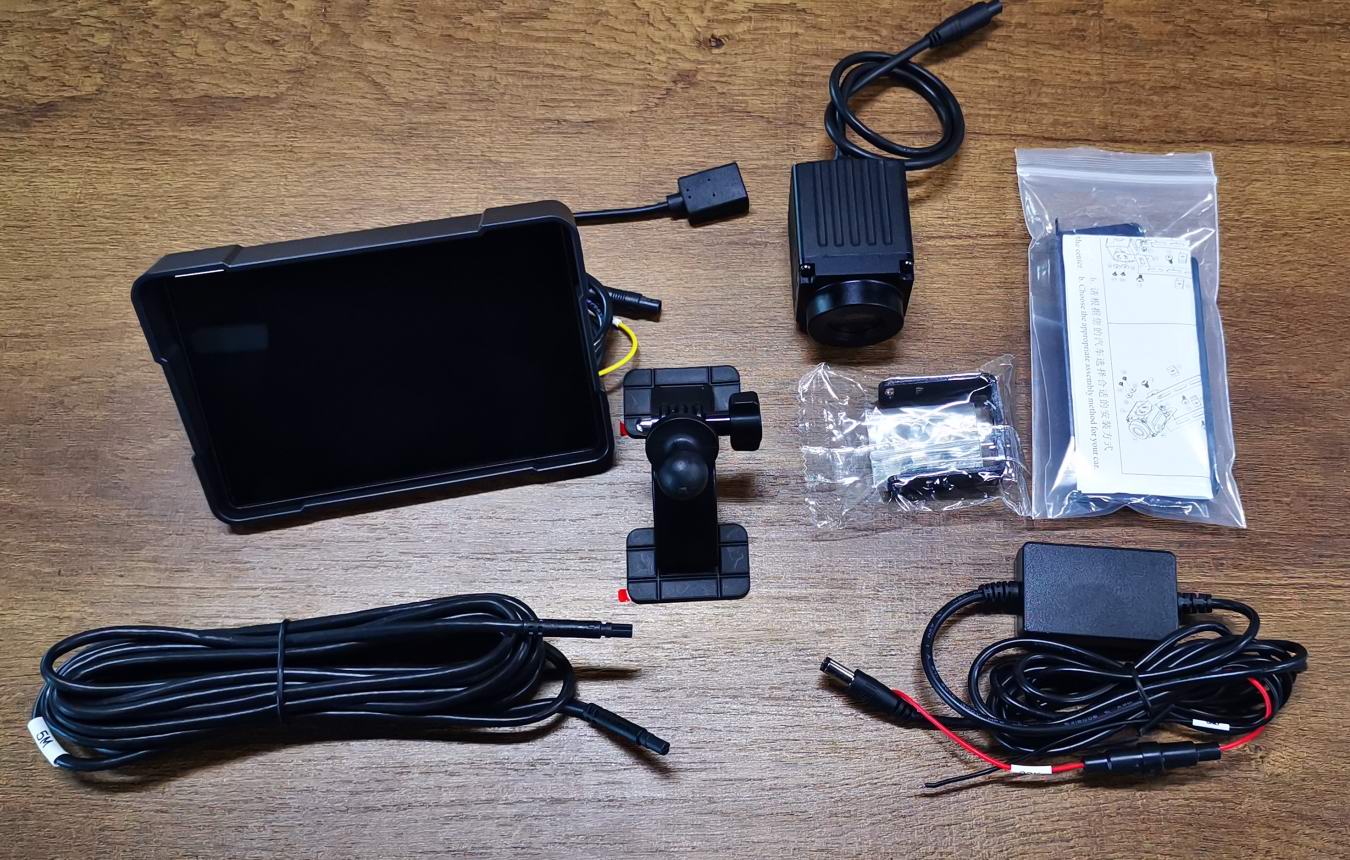

The product list includes:

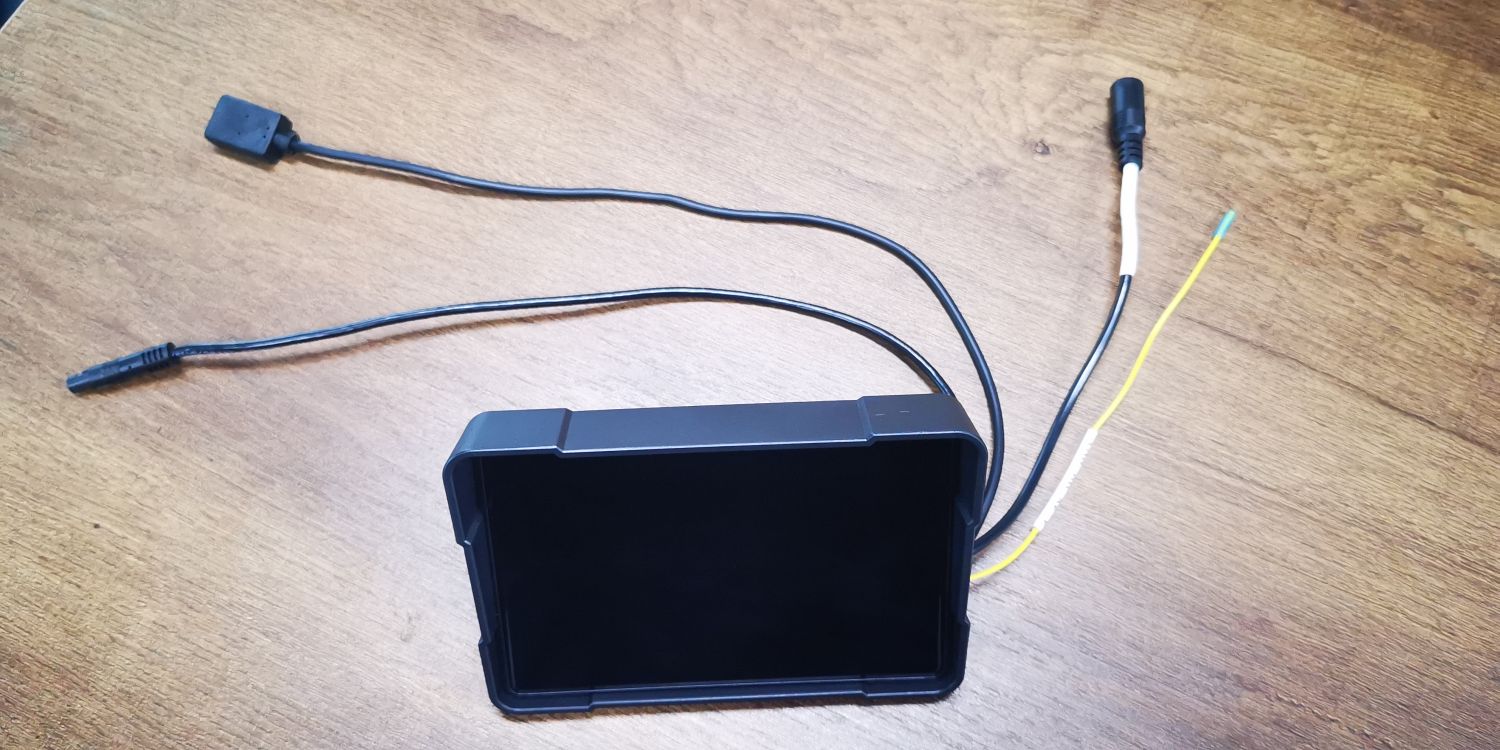

- 5-inch or 7-inch display unit
- Selected thermal camera
- Display mounting bracket
- Power accessory
- 5 m camera extension cable
- Camera mounting accessories
Confirm the final package contents and vehicle installation requirements before ordering. Professional installation is recommended for secure mounting, cable routing and power connection.
Suitable Customers and Applications
The system can be evaluated for:
- Automotive accessory distributors offering aftermarket night vision products
- Installation workshops providing dedicated thermal display systems
- Drivers who regularly travel on poorly lit roads
- Vehicle equipment suppliers assessing thermal recognition and warning functions
- Branding projects requiring customized interface graphics or alert voices
Customers should select the camera and lens according to the intended field of view and recognition requirements rather than choosing by display size alone.
Frequently Asked Questions
What is the VERYTEK AI car thermal imaging night vision system?
It is an aftermarket driving assistance system combining an external thermal camera with a 5-inch or 7-inch touchscreen. It provides thermal imagery, AI recognition, configurable warnings and recording support.
What camera resolutions are available?
The product literature lists 256 × 192, 384 × 288 and 640 × 512 thermal camera options. Lens and defrost availability vary by configuration.
What is the difference between the 5-inch and 7-inch versions?
The main differences listed are display size, unit dimensions and weight. Both displays have a resolution of 1024 × 600. Thermal image detail depends on the selected camera and lens.
How far can the system recognize pedestrians?
The listed AI pedestrian recognition distances range from 15 m to 100 m, depending on configuration. These reference values apply to pedestrians taller than 1.7 m and do not guarantee performance in every road or weather condition.
Does the system recognize small animals at 60 m?
The brochure’s animal distance references apply to animals taller than 1.5 m. They should not be interpreted as guaranteed detection distances for smaller animals such as cats or dogs.
Does every camera have defrost heating?
No. The configuration table excludes window/defrost support for the 256 × 192 camera with a 1.5 mm lens and the 640 × 512 camera with a 4.6 mm lens. Other listed configurations support it.
Does thermal imaging work in complete darkness?
Yes. Thermal imaging does not require visible illumination to form an image. Recognition performance still depends on temperature contrast and operating conditions.
Does the system prevent collisions automatically?
No. It provides viewing and warning assistance. The driver remains responsible for observing traffic, selecting a safe speed and controlling the vehicle.
Can the startup logo and alert voice be customized?
The product literature lists customization of the startup video, interface logo and alert voice. Contact VERYTEK to confirm available options, minimum order quantity and development requirements.
Request a Configuration Recommendation and Quote
Contact VERYTEK with your preferred display size, camera resolution, required field of view, vehicle type, destination market and order quantity.
We can review the available configurations and confirm installation accessories, branding options, pricing and delivery requirements for your project.
