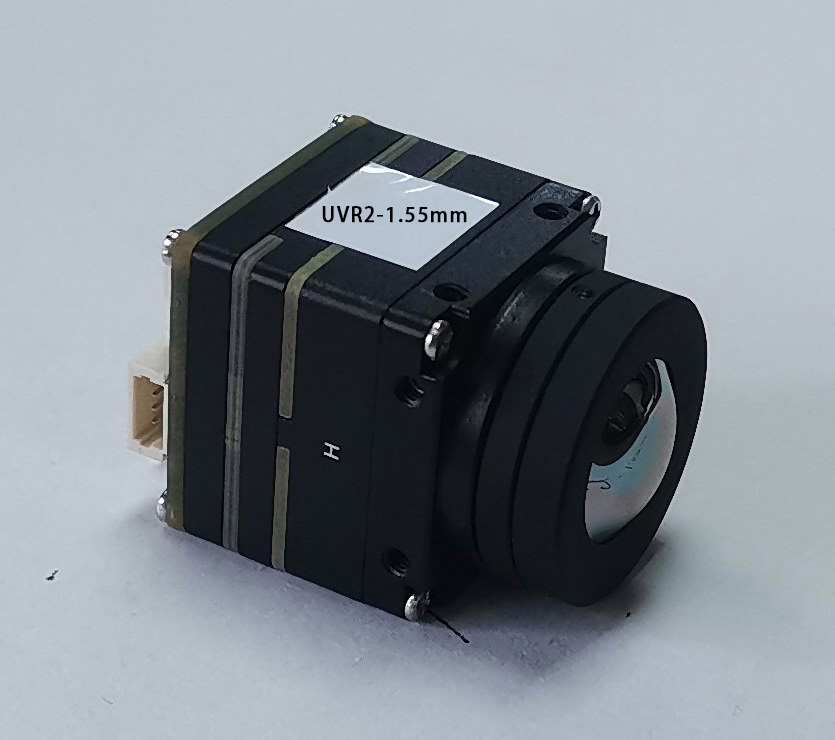

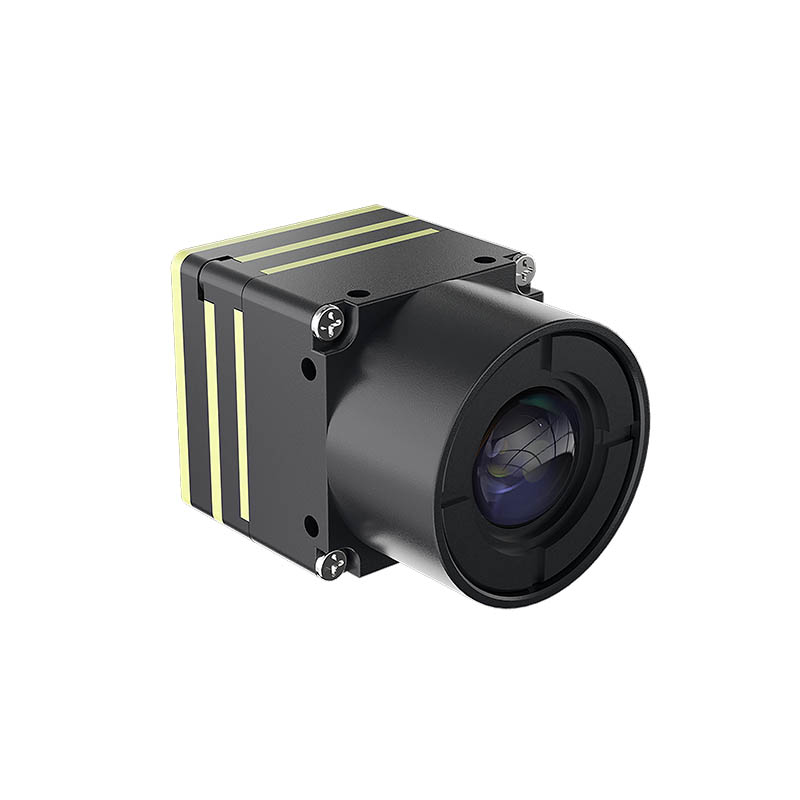

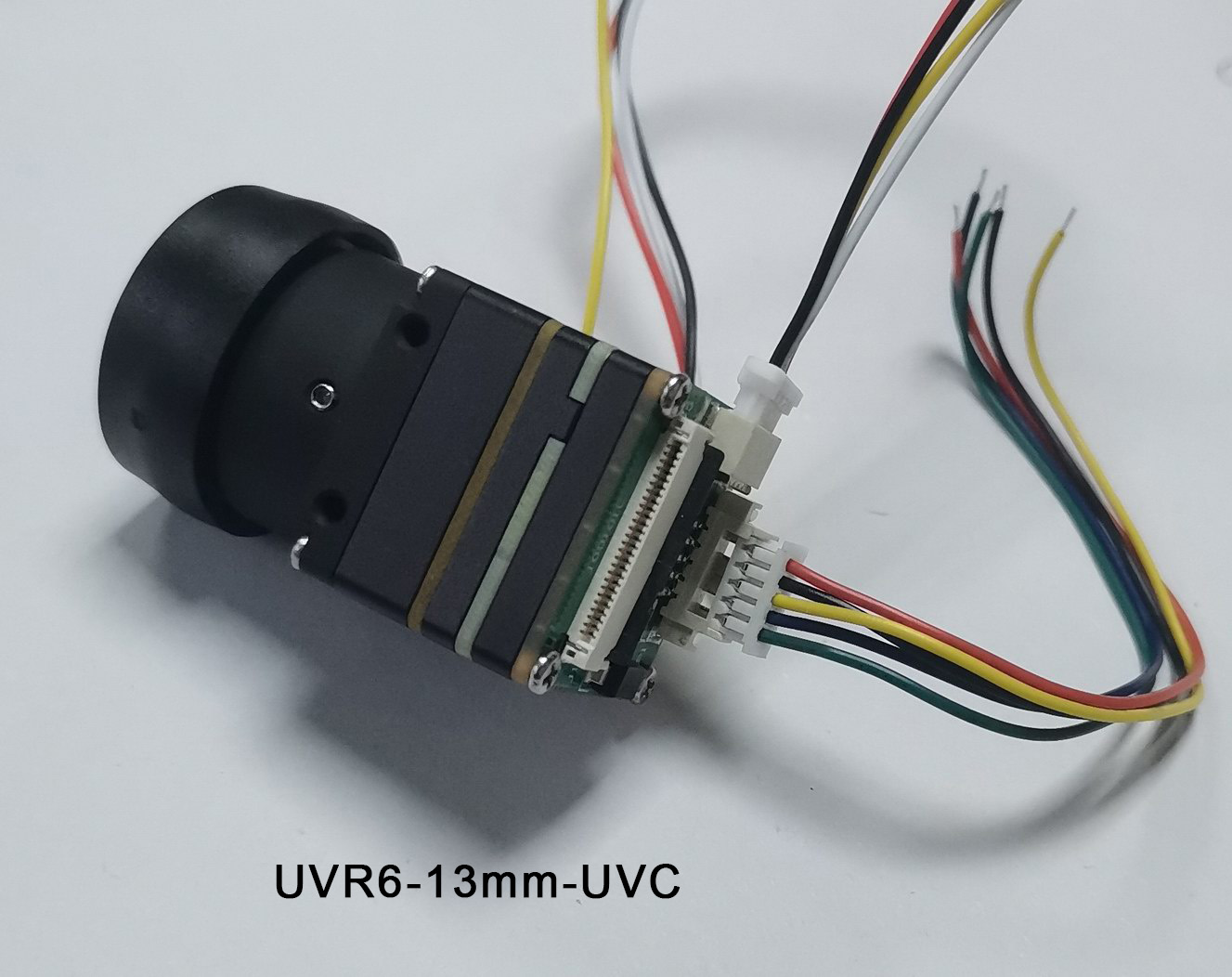

UVR 640/384/256/ LWIR Thermal Camera Module

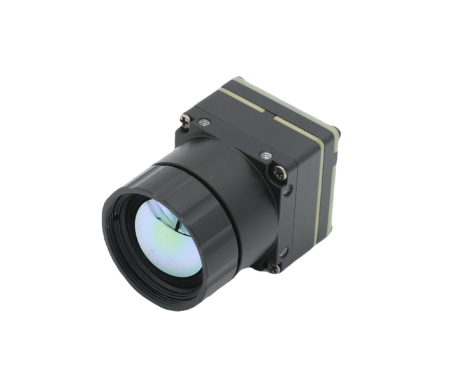

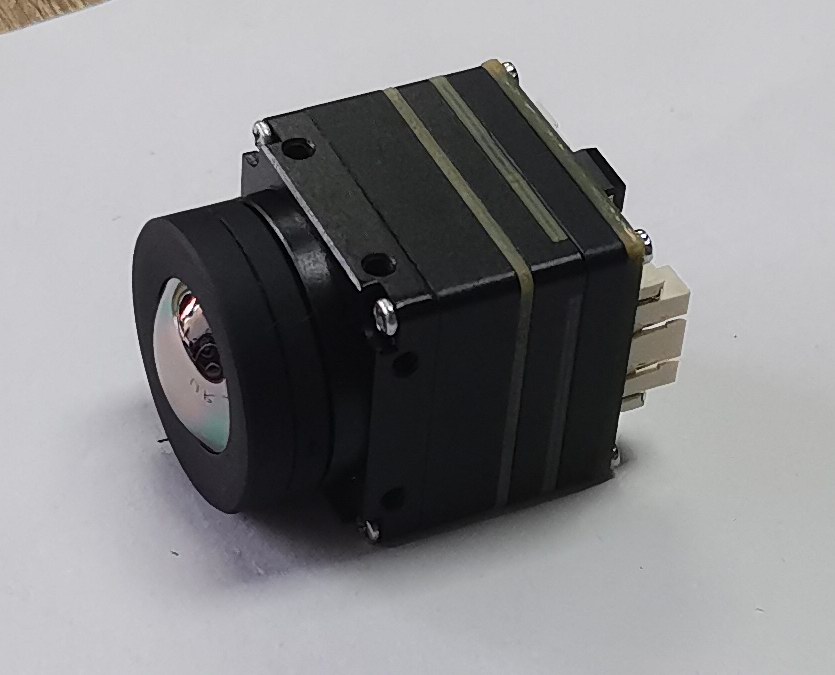

UVR 640/384/256/ LWIR Thermal Camera Module - Image 2

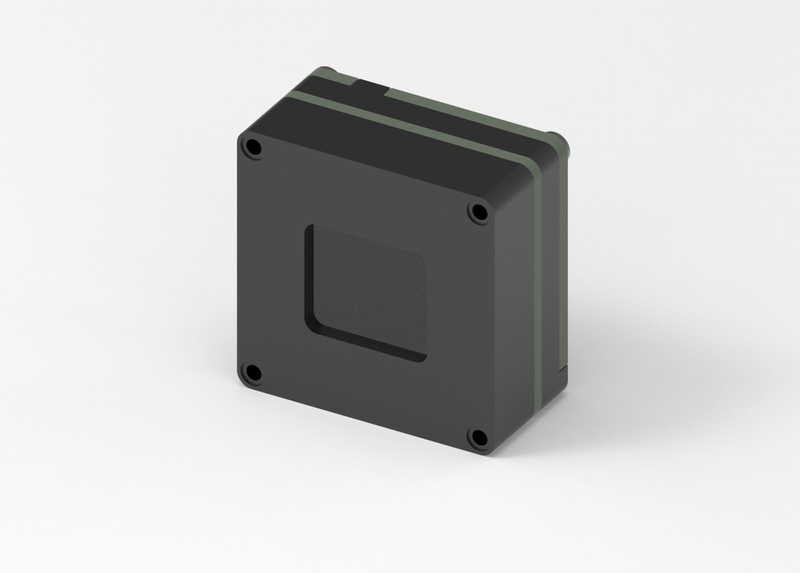

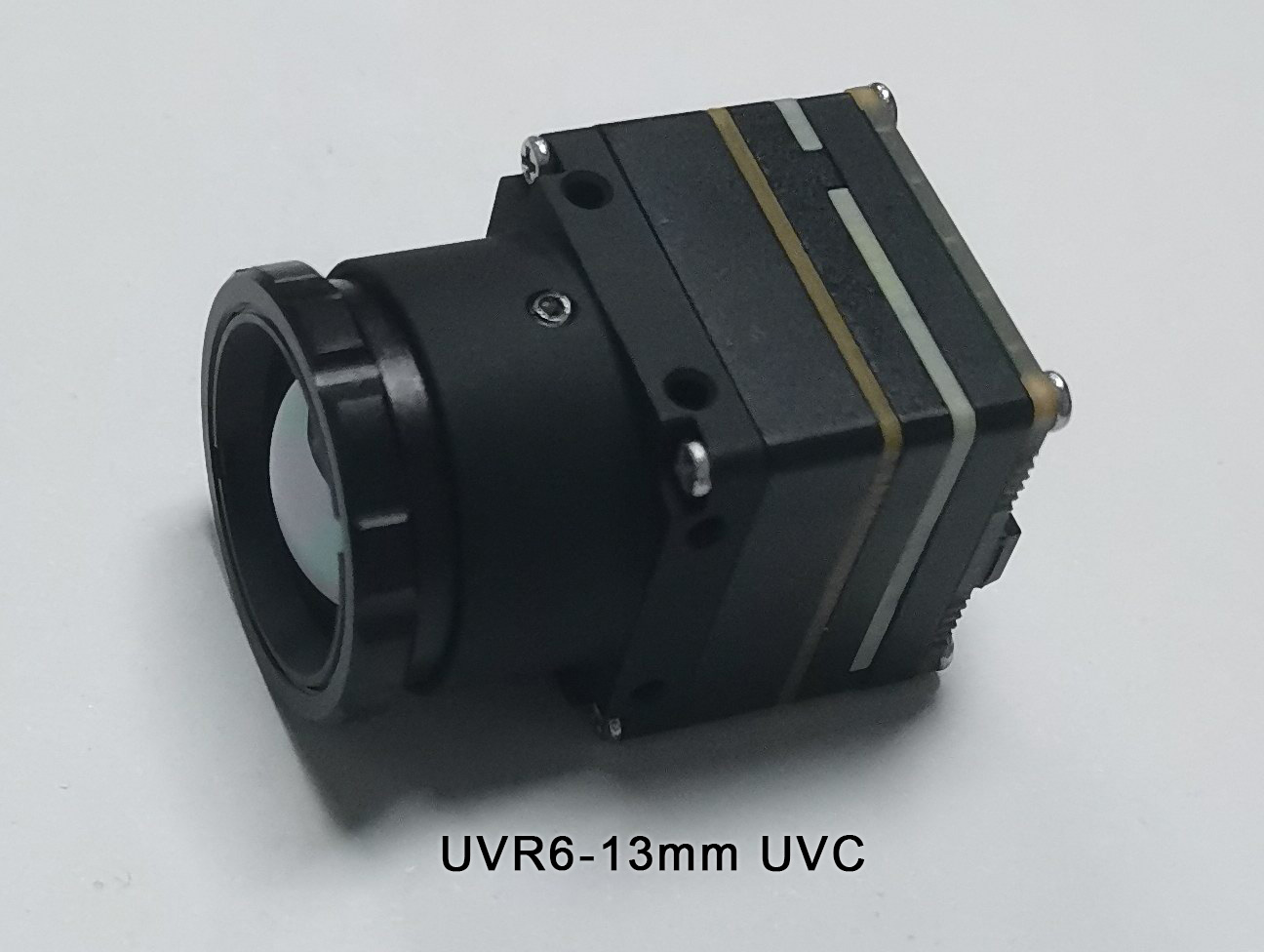

UVR 640/384/256/ LWIR Thermal Camera Module - Image 3

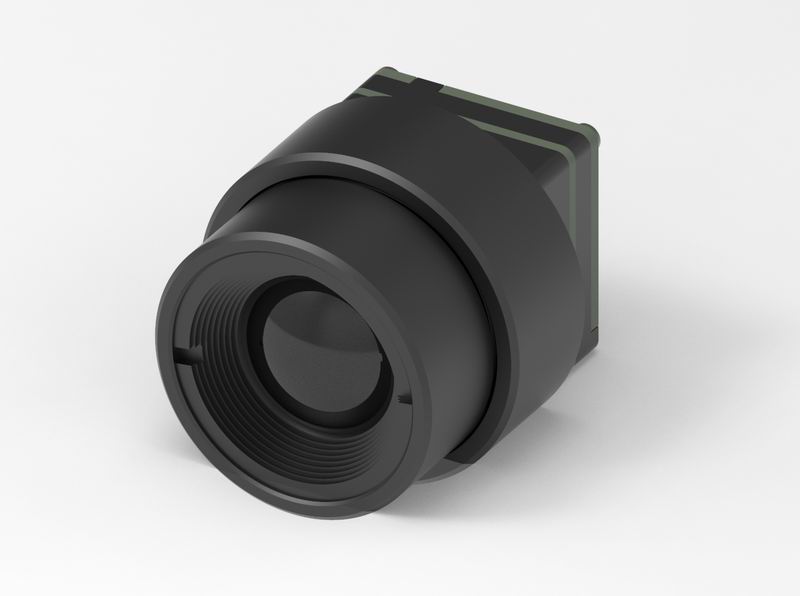

UVR 640/384/256/ LWIR Thermal Camera Module - Image 4

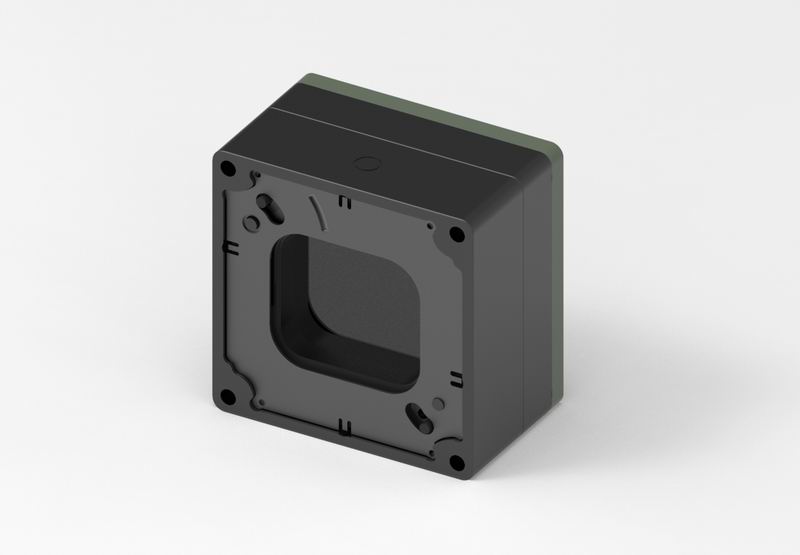

UVR 640/384/256/ LWIR Thermal Camera Module - Image 5

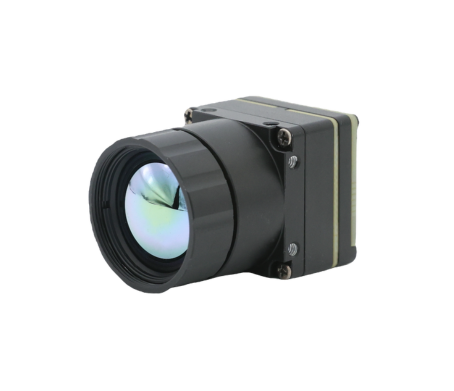

UVR 640/384/256/ LWIR Thermal Camera Module - Image 6

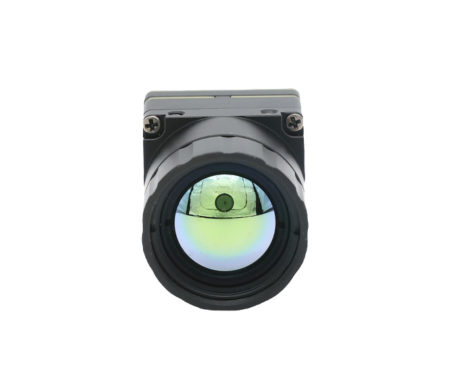

UVR 640/384/256/ LWIR Thermal Camera Module - Image 7

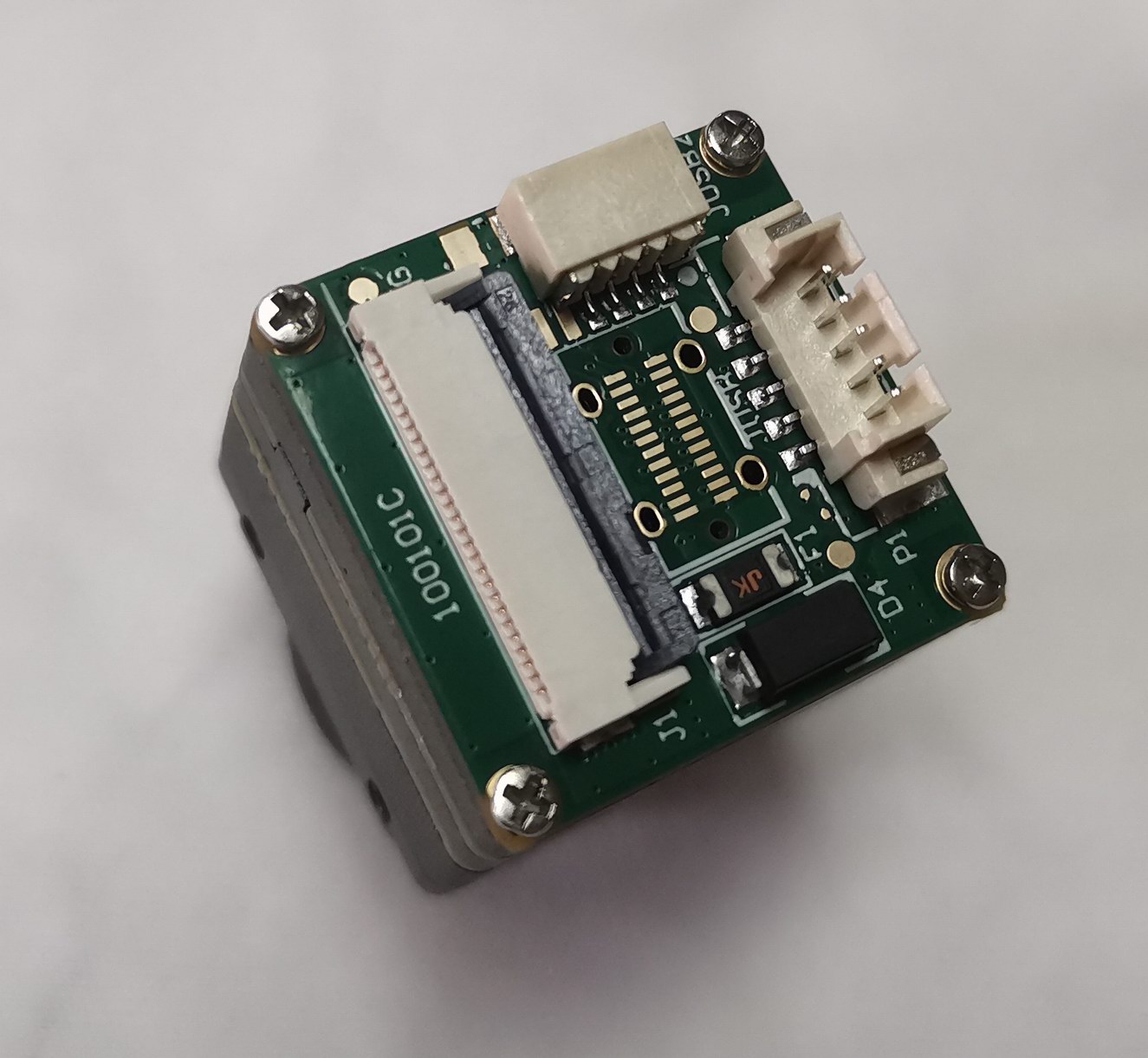

UVR 640/384/256/ LWIR Thermal Camera Module - Image 8

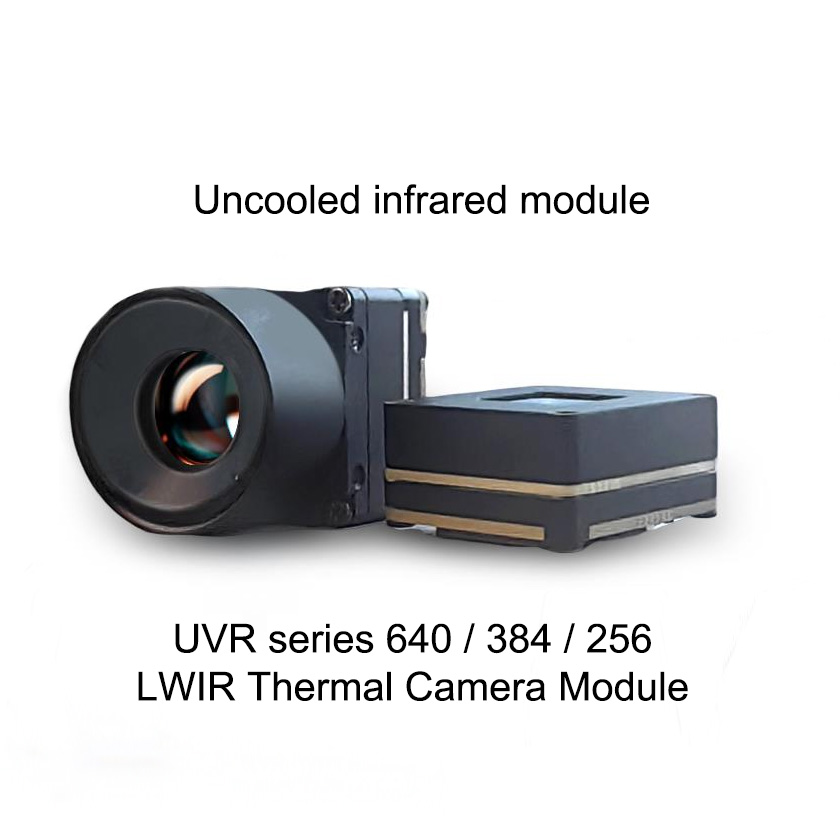

UVR 640/384/256/ LWIR Thermal Camera Module

The UVR series uncooled infrared module is available in 640×512, 384×288, and 256×192 resolutions. It integrates a high-frame-rate 12 μm WLP detector with a second-generation self-developed infrared ISP chip, delivering a balanced combination of performance, compact size, light weight, low power consumption, and cost efficiency. The design fully complies with SWaP (Size, Weight, and Power/Price) requirements for airborne platforms.
The UVR series has been delivered in volume and is already deployed in mass-production UAV platforms. It has been integrated by UAV manufacturers and used in large-scale deployments, with stable performance verified across production batches and real-world flight operations. This makes the UVR series a proven and low-risk choice for drone payload integration.
The entire series adopts a shutter-less architecture, ensuring smooth and continuous imaging without stutter during flight. Combined with a new-generation infrared-dedicated image processing algorithm, the module produces clear and consistent thermal images suitable for long-duration airborne missions.
Multiple digital interfaces are provided, enabling flexible integration with UAV onboard computing and intelligent processing platforms. The module is well suited for standardized UAV payload designs and long-term supply in volume production programs.
Category: Tags: , , , ,

UVR 640/384/256/ LWIR Thermal Camera Module

The UVR series uncooled infrared module features optional resolutions of 640×512, 384×288, and 256×192, using high frame rate 12um WLP package detector, and the second-genera developed infrared ISP chip, which has the characteristics of high performance, small volume, light weight, low power consumption and low cost, and meets the application requirements of SWaP (size, weight, and power/price).
The entire series adopts a shutter-less algorithm, the image is smooth and free from stuttering, and a new generation infrared dedicated image algorithm, generating delicate and clear images.
The module provides multiple digital interfaces and supports flexible access to various intelligent processing platforms.
Product Features
⚫ High frame rate
⚫ Standard shutter-less algorithm
⚫ High quality image display
⚫Higher cost performance
⚫Resolution : 256×192/ 384×288/640×512
⚫Pixel Pitch : 12um
⚫Detector Framerate : 25/50Hz / 30/60Hz / 30/60Hz
⚫Typical Power Consumption : <0.35W /<0.42W / <0.7W
⚫Weight (without lens) : <8.6g
⚫Dimensions (without lens) : 21x21x10.3mm
Application Scenarios
⚫ UAV Search: photoelectric pod.
⚫ Portable terminal: outdoor handheld, helmet night vision.
⚫ Security/fire inspection: industrial monitoring, perimeter scanning, inspecwarning, fire helmets.
⚫Intelligent integration: assisted driving, smart home appliances.

Specifications

UVR Technical Specifications
Overview UVR2 UVR3 UVR6
Detector Type Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution 256×192 384×288 640×512
Effective Frame Rate 25/50Hz 30/60Hz 30/60Hz
Pixel Pitch 12μm
Spectral Band 8～14μm
Noise Equivalent Temperature
Difference (NETD)		 ≤40mK@25℃,F#1.0,25Hz
Thermal Time Constant ＜12m
Image Adjustment
Non-uniformity Correction Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment 0~100, optional
Polarity/Palette White-hot/Black-hot/Various palettes supported
Digital zoom 1.0~8.0×continuous zoom (step size: 0.1)
Image Mirroring Vertical/Horizontal/Diagona
Electricity Parameters
Analog Video PAL/NTSC
Digital Video DVP/BT656/ USB2.0/MIPI
Communication Interface UART/I2C/USB2.0
Power Supply Input 5V
Typical power consumption of USB output @25℃ ＜0.35W ＜0.42W ＜0.7W
Physical Characteristics
Weight (without lens) <7g <8.6g
Dimensions (without lens) 21×21×10.3 mm
Environment Adaptability
Operating Temperature   -40℃～+80℃
Storage Temperature    -50℃～+85℃
Humidity 5%–95%, non-condensing
Vibration 6.06g, random vibration, all axes
Impact 80g, 4ms, final peak sawtooth wave, three axes and six directions
NOTE 1.  The above parameters are measured under laboratory conditions, the actual specifications and test methods are subject to the test report.

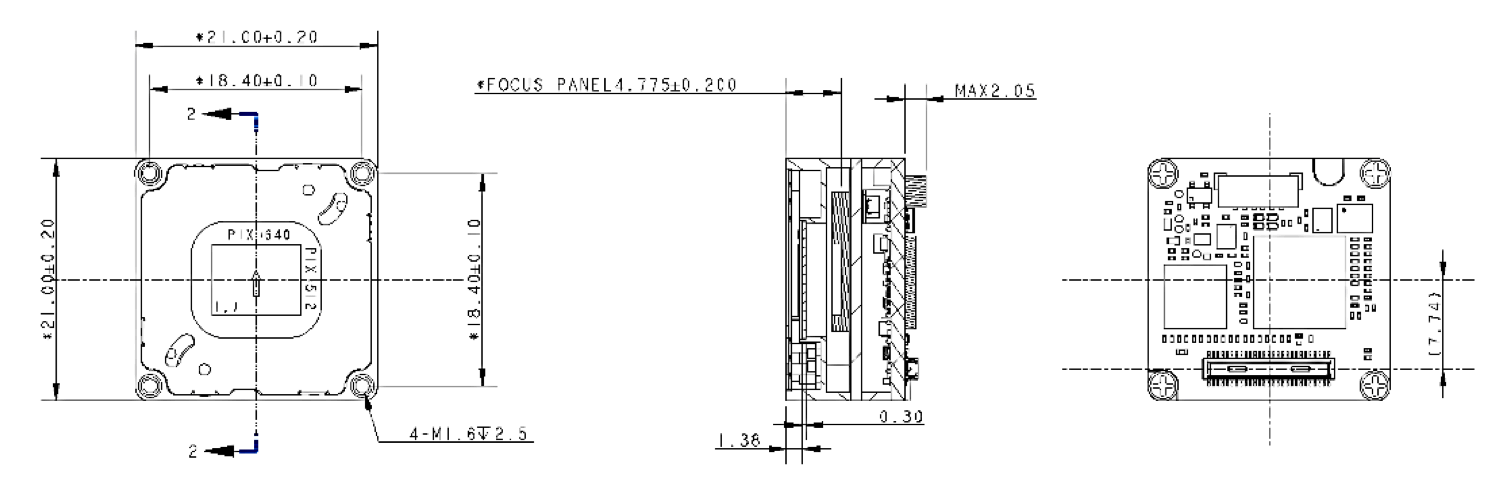

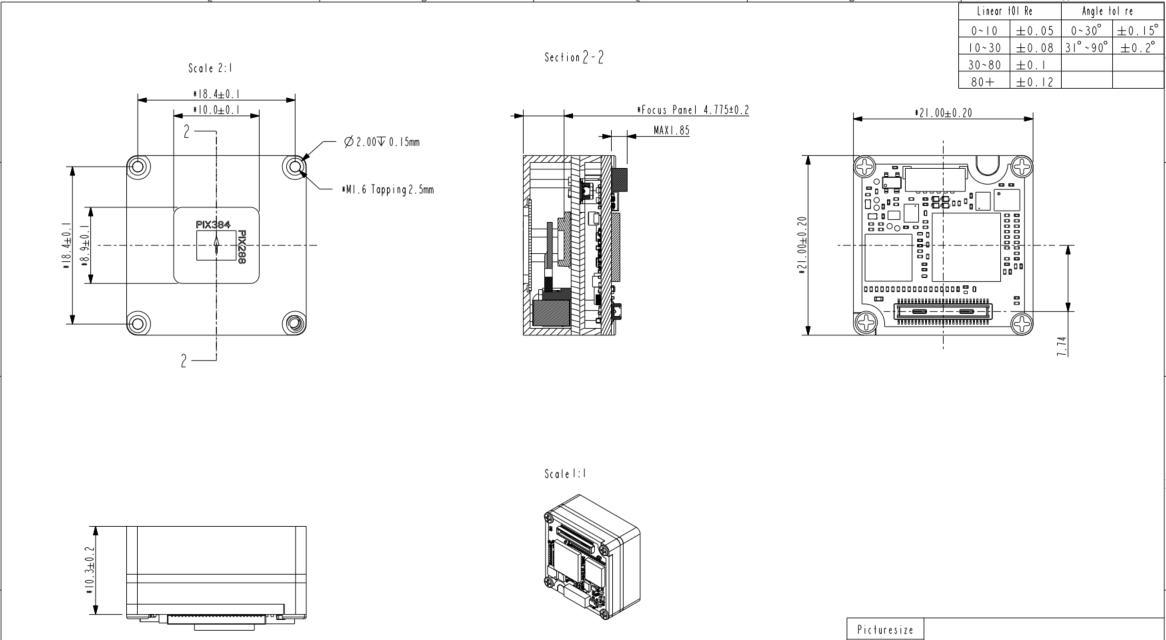

Figure 5 1 V N2 384 Lensless Module Drawing

Figure 5-1 UVR-384 Lensless Module Drawing

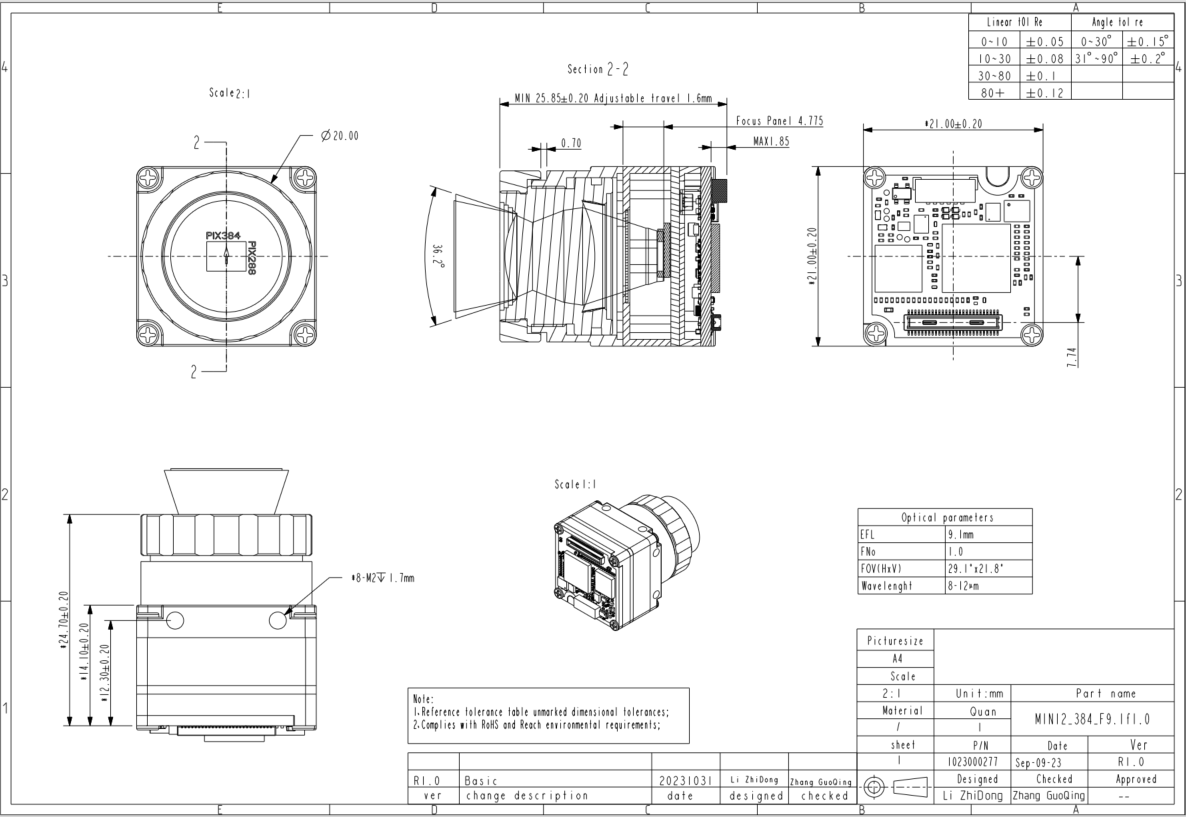

Figure 5 2 V N2 384 9.1 mm Lens Module Structure Drawing

Figure 5-2 UVR-384 9.1 mm Lens Module Structure Drawing



VN2

Lens parameters

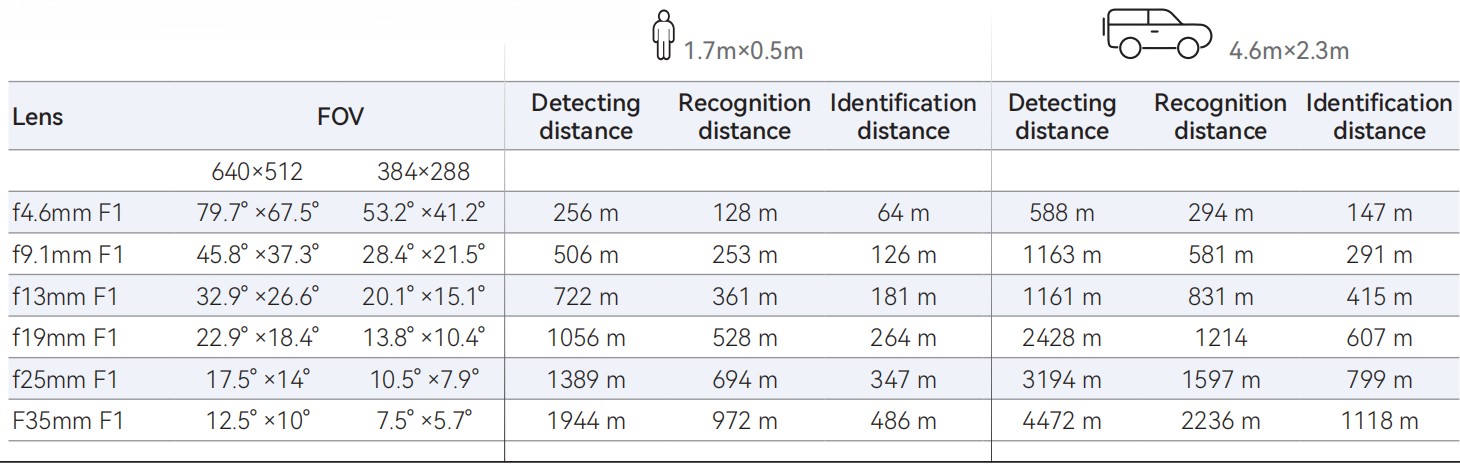

UVN2 Lens parameters

VN UR 01 VN UR 02 VN UR 03
