Thermal Monoculars for Spain: Wildfire Detection, Solar O&M, and Agricultural Drones

Spain’s combination of an increasingly severe wildfire season, Europe’s largest installed solar energy base, and a vast agricultural sector spanning olive groves, vineyards, and citrus orchards creates converging high-priority demand for thermal monocular technology across environmental, energy, and agri-tech domains. The LWIR detector module at the core of every thermal monocular — passively imaging heat signatures in the 8–14 μm band — delivers actionable thermal intelligence through smoke, darkness, and glare that renders optical cameras ineffective. As explained by thermographic camera technology, LWIR-based sensing enables Spain’s drone operators, solar O&M contractors, and agri-tech companies to monitor assets and environments that visible-light cameras simply cannot cover.

MarketsandMarkets’ infrared imaging market research identifies Southern Europe — and Spain specifically — as a high-growth market for LWIR module adoption in renewable energy inspection and environmental monitoring. Verytek’s UVR Series LWIR modules are the sensing core designed for Spanish OEMs, drone platform manufacturers, and energy sector integrators building thermal monoculars and inspection systems for Spain’s most demanding field environments.

Thermal Monocular Technology for Spanish Field Conditions

Spain’s deployment environments test LWIR modules at both thermal and mechanical extremes. Andalusian summer temperatures regularly reach 45 °C, solar farm inspection drone operations expose modules to intense solar loading, and wildfire patrol missions demand sustained operation in smoke and ash-laden air. Verytek’s UVR Series employs a vanadium oxide microbolometer focal plane array with 12 μm pixel pitch and NETD ≤ 40 mK, operating reliably from −40 °C to +80 °C — conditions that encompass Spain’s Pyrenean winter inspection sites through Canarian summer field deployments. The 80 g shock and 6.06 g vibration tolerance qualifies UVR modules for the fixed-wing UAV and multirotor platforms used in Spanish solar and wildfire monitoring operations.

Key UVR Series Advantages for Spanish Thermal Monocular Applications

• +80°C maximum operating temperature: sustains reliable imaging during Spanish summer solar farm O&M where equipment surface temperatures exceed ambient air temperatures by 20–30 °C.
• Shutterless algorithm correction: continuous thermal video without NUC blackout — essential for wildfire patrol drones where a single missed frame over a hotspot could delay detection.
• Compact SWaP profile: 21×21×10.3 mm and <8.6 g enables integration into lightweight long-endurance UAV platforms suited to Spain’s large-scale wildfire patrol routes and multi-hectare solar farm surveys.
• MIPI CSI-2 and USB 2.0 interfaces: supports integration with NVIDIA Jetson AI platforms for automated defect classification in solar O&M and smoke detection in wildfire applications.
• Low power consumption: <0.35–0.7 W enables solar-backed autonomous monitoring nodes deployed along forest perimeters and on rural solar farm infrastructure.

Wildfire Early Warning and Forestry Monitoring

Wildfire Detection Drones

Spain is one of Europe’s most wildfire-affected countries, with recent years recording hundreds of thousands of hectares burned annually across Galicia, Extremadura, and Catalonia. Drone-mounted thermal monoculars operating through smoke and at night provide the earliest achievable ignition warning, capable of detecting a smouldering hotspot from over 800 metres altitude before it develops into a spreading crown fire. The UVR3 (384×288, 30/60 Hz, shutterless) is the preferred module for long-endurance wildfire patrol drones — its <0.42 W power draw extends battery-powered flight time, and the shutterless correction ensures uninterrupted thermal video over multi-hour overnight patrols. FLIR’s drone thermal imaging resources describe the frame rate and sensitivity requirements for aerial fire detection that the UVR Series meets. For drone operations within Spanish airspace over forested zones, the EASA civil drones regulatory framework governs the operational parameters for thermal UAV payloads.

Solar Farm Photovoltaic O&M Inspection

Spain installed over 30 GW of solar photovoltaic capacity by 2025, with large utility-scale parks across Extremadura, Castile-La Mancha, and Murcia requiring regular thermographic inspection to detect hotspot cells, bypass diode failures, and soiling anomalies. Drone-mounted thermal monoculars equipped with UVR6 (640×512, 30/60 Hz) modules can survey hundreds of panels per flight, with the shutterless algorithm ensuring no panel is missed between NUC intervals. Guide Infrared’s thermography knowledge base describes the panel defect detection sensitivity requirements that align with the UVR Series’ NETD ≤ 40 mK specification. The MIPI CSI-2 interface enables connection to edge-AI systems that classify detected panel faults and geotag them automatically for maintenance dispatch.

Agricultural Drone Monitoring and Smart Farming

Spain is Europe’s largest olive oil producer and the world’s second-largest wine exporter — agricultural sectors where precision monitoring of crop canopy temperature, water stress, and disease incidence using drone-mounted thermal monoculars delivers measurable yield protection. Thermal UAV surveys of Andalusian olive groves identify irrigation failures and verticillium wilt heat signatures at distances where visible cameras provide no diagnostic information. The UVR2 (256×192, <7 g, <0.35 W) provides the lowest SWaP option for multi-sensor agri-drone payloads where battery endurance across large land parcels is the primary constraint. InfraTec’s industrial thermography documentation covers how LWIR sensors enable non-contact temperature measurement of agricultural targets at drone altitude — an approach directly applicable to Spain’s diverse crop monitoring needs. The Mordor Intelligence uncooled infrared imaging market report identifies precision agriculture as one of the fastest-growing application segments for thermal UAV modules in Southern Europe.

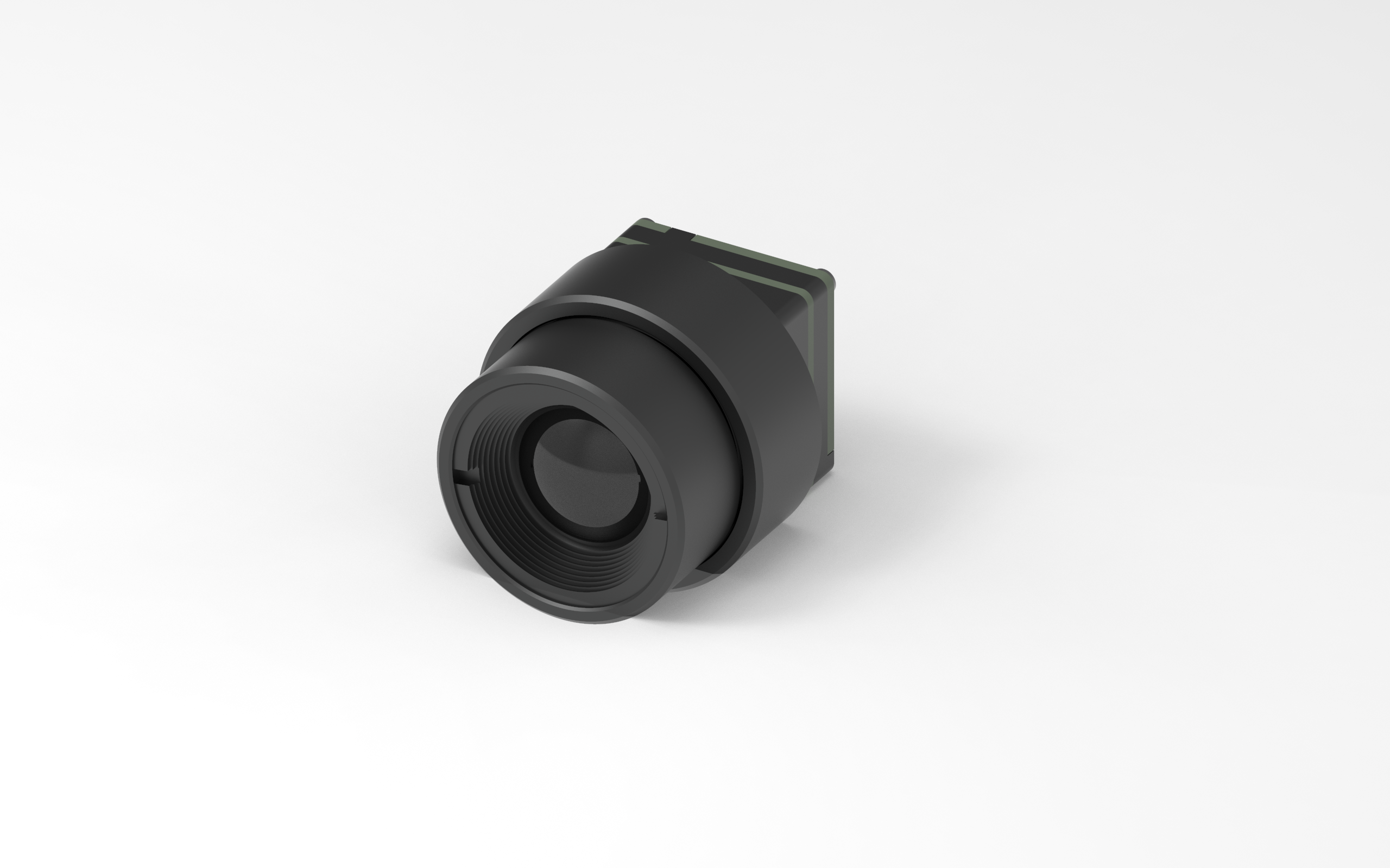

Choosing the Right Thermal Monocular Module for Spanish OEMs

The complete UVR Series specification table, sourced from Verytek’s official product page, provides the baseline data for Spanish procurement and integration decisions.

Model	Resolution	Frame Rate	Pixel Pitch	NETD	Power (USB @25°C)	Weight (w/o lens)	Dimensions
UVR6	640×512	30/60 Hz	12 μm	≤40 mK	<0.7 W	—	21×21×10.3 mm
UVR3	384×288	30/60 Hz	12 μm	≤40 mK	<0.42 W	<8.6 g	21×21×10.3 mm
UVR2	256×192	25/50 Hz	12 μm	≤40 mK	<0.35 W	<7 g	21×21×10.3 mm

1. Wildfire patrol UAV: UVR3 (384×288, shutterless) via USB 2.0 or MIPI; low power extends overnight battery endurance essential for multi-hour forest patrol routes in Galicia and Extremadura.
2. Solar farm O&M drone: UVR6 (640×512, 30/60 Hz) via MIPI CSI-2 for edge-AI panel fault classification; shutterless ensures 100% panel coverage per automated survey pass.
3. Agricultural multi-sensor drone: UVR2 (<7 g, <0.35 W) via UART/I2C for agri-IoT MCU integration across Andalusian olive and vineyard monitoring platforms.
4. Coastal or border surveillance: UVR6 via DVP/BT656 for SCADA integration; high resolution for vessel identification at Mediterranean coastal standoff distances.

“The UVR series delivers a balanced combination of performance, compact size, light weight, low power consumption, and cost efficiency — fully compliant with SWaP requirements for airborne platforms.” — Verytek Product Documentation
