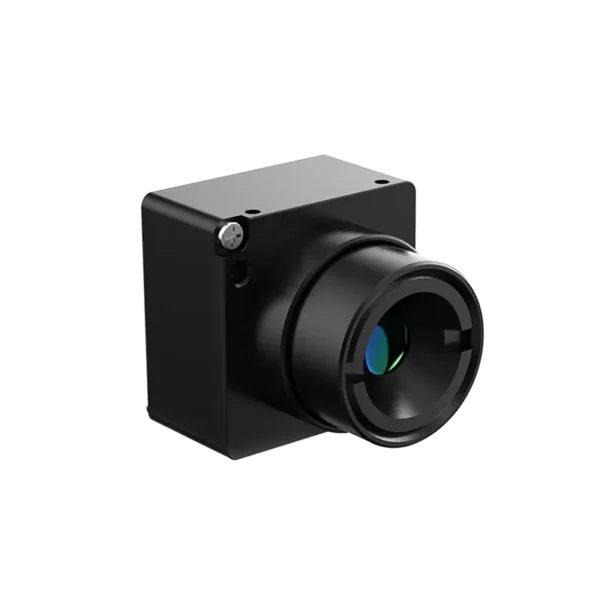

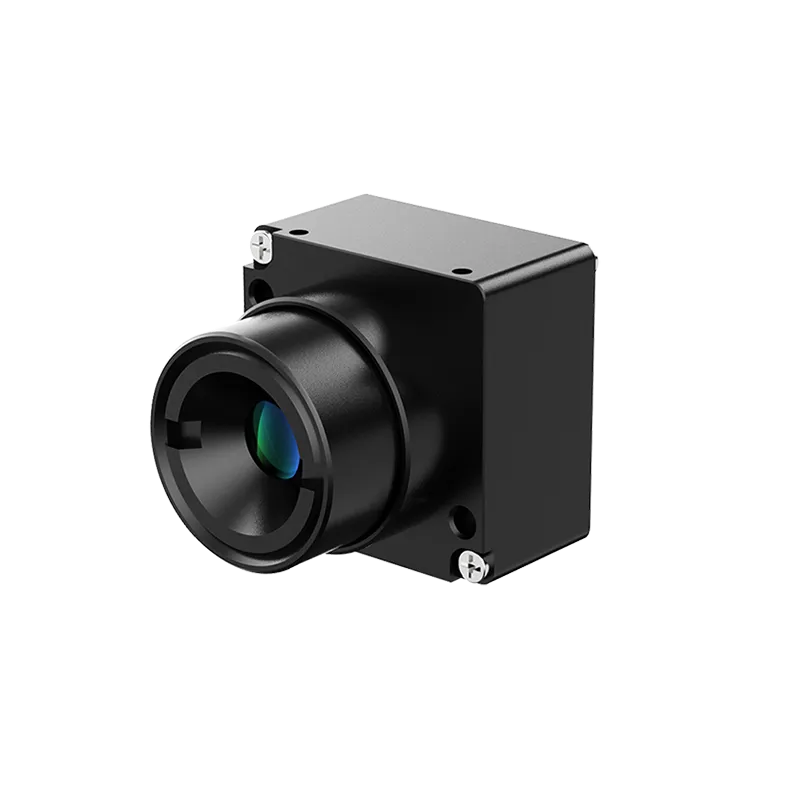

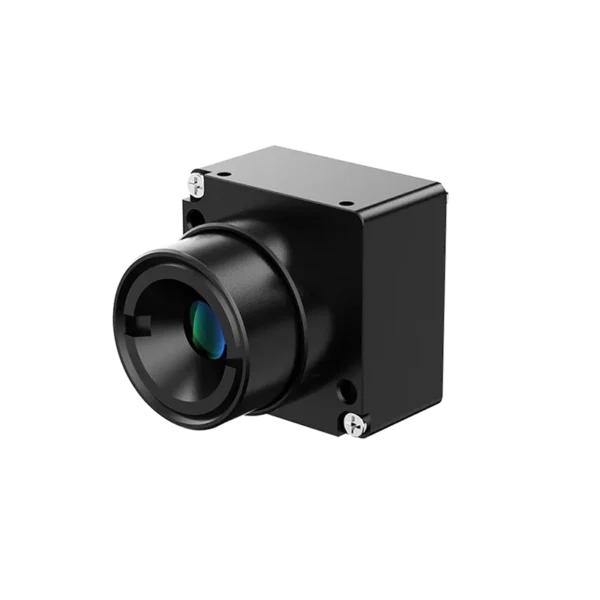

Turing L384 Uncooled Infrared Module (Temperature Measurement)

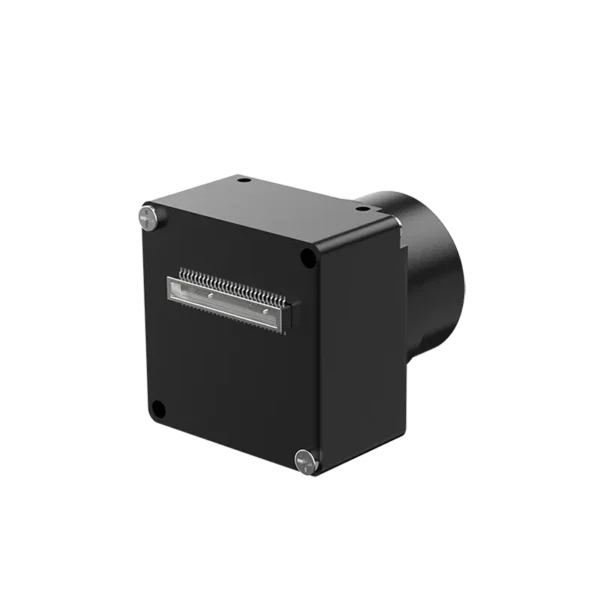

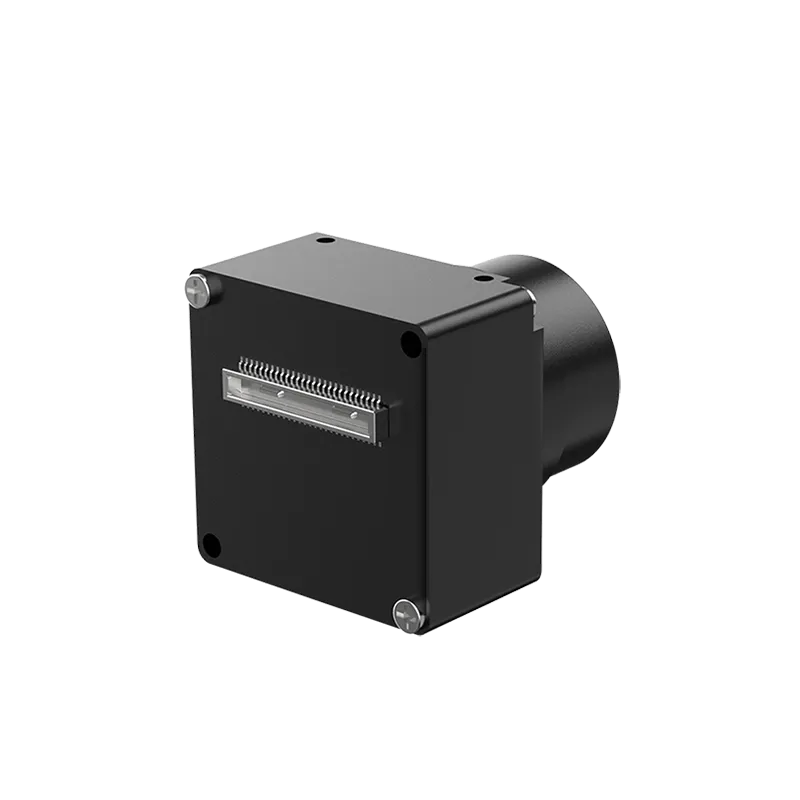

Turing L384 Uncooled Infrared Module (Temperature Measurement) - Image 2

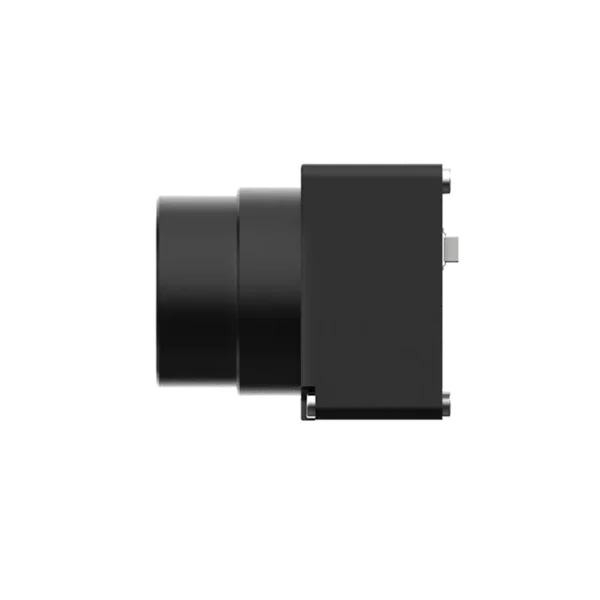

Turing L384 Uncooled Infrared Module (Temperature Measurement) - Image 3
Turing L384 Uncooled Infrared Module (Temperature Measurement) - Image 4

Turing L384 Uncooled Infrared Module (Temperature Measurement)

  • Turing L384 uncooled infrared module has made further technical breakthroughs, redefining the new standard of weight, dimensions, and power consumption (SWaP³) in the infrared OEM module industry.
  • It meets professional needs in the fields of routine inspection, security, search and rescue, and industrial monitoring and provides excellent miniaturized high-resolution solutions for consumer products.
Categories: , Tags: , , , , , ,

Turing L384 Uncooled Infrared Module (Temperature Measurement)

Feature

SWaP3 Design

  1. Its resolution is 384×288, dimension is 18×18mm, and weight is 3.5g, and it is a low-cost solution.

Excellent Performance

  1. It supports shutterless correction algorithm to provide a smooth and continuous user experience.

Multiple Selections

  1. Its FOV covers 10°~90°, and it supports multiple interfaces, such as MIPI/USB/BT.656/analog video.
  2. Equipped with leading programmable modules, it features flexible architecture, multiple functions, and high customizability

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 384×288
Detector Frame Rate 25Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK at 25°C (≤40mK, optional)
Image Adjustment
Brightness/Contrast Adjustment Manual/Auto
Polarity Black-hot/White-hot
Palette Multiple types support
Reticle Display/Blank/Move
Image Processing TEC-less temperature control algorithm, digital filtering noise reduction, and digital detail enhancement.
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.8～5.2VDC / 1.8V / 3.3V
Typical Power Consumption at 25°C Without Extension ≤0.25W (Typical, @25°C, Without Extension)
Interface
Digital Video BT.656/BT.1120/LVCMOS
Serial Communication Interface UART
Extension Components USB 2.0 / Analog video
Temperature Measurement Performance
Measurement Range For measurement series, -20°C~+550°C (+650°C customizable)
Measurement Accuracy For measurement series, ±3°C or ±3% of reading (The greater shall prevail) at Ambient temperature of -20°C~+60°C±2°C (optional)
Measurement Tool Temperature measurement series: Secondary analysis of points, lines, and areas
Physical Characteristics
Dimensions (Without lens and extension components) 18×18mm
Weight (3.2mm, without extension components) 3.5g
Lens Model 2.88mm, 5.3mm, 10.4mm, 19mm, expandable to 45mm
Environment Adaptability
Operating Temperature -40°C~+80°C (-20°C~60°C measurement)
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Product Certification RoHS

Application Scenarios



Fire Rescue
Fire Rescue


Security Monitoring
Security Monitoring


UAV Pod
UAV Pod


Wearable Device
Wearable Device
