13 inch Android Auto Car Radio Stereo Car DVD Player
13″ inch 2.5K Panel,
Qualcomm 680,
Android Auto Car Radio Stereo Car DVD Player,
Universal Multimedia Stereo Head Unit
| TS7 Wifi version comes standard with AHD | |
| Configuration | |
| Wifi/4G/3G | WIFI |
| Motherboard chip | Spreadtrum UIS8141E 4-core ARM CoretexTM-A7,main frequency can reach 1.3GH |
| System | Android 9 system can be upgraded to Android 12 |
| RAM | 1G /2G |
| Memory ROM | 16G/32G |
| Touch screen | 2.5D curved surface anti-scratch |
| Radio chip | built-in |
| Radio band | Single-band FM |

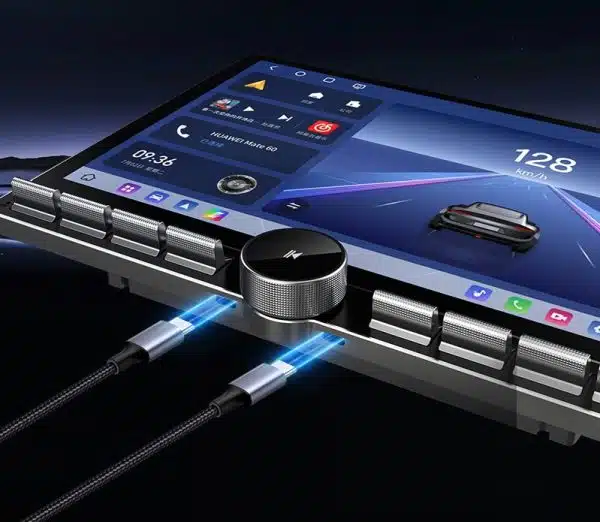

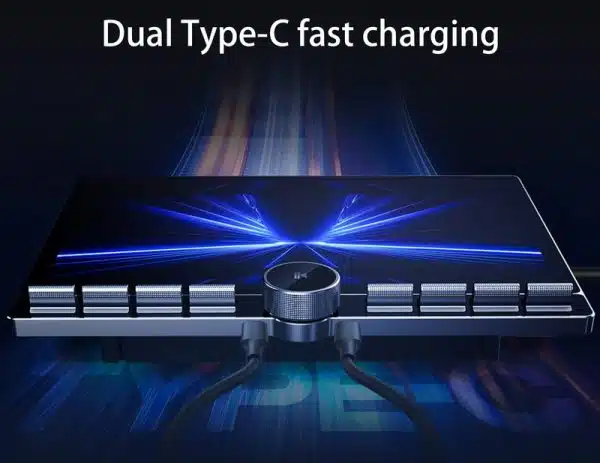

| USB | two USB ports share one USB function |
| Bluetooth | Bluetooth 4.0 |
| Titanium star support | support |
| Amplifier IC | 7388 |

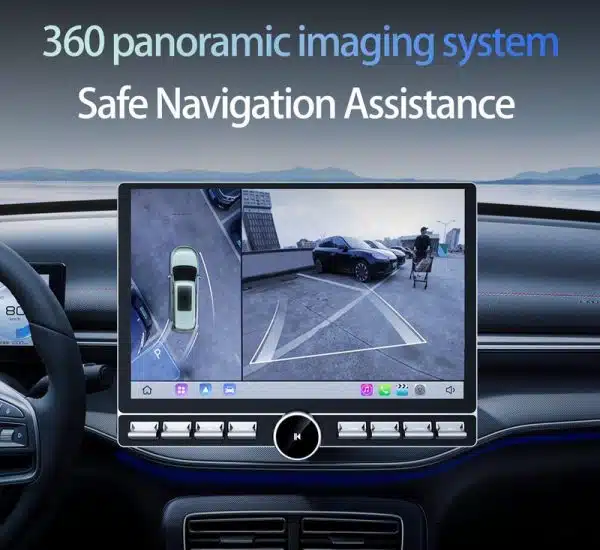

| Reverse input | CVBS/AHD signal 1080p signal automatic recognition display |
| Audio RCA input | two RCA inputs |
| Video RCA input | CVBS/AHD signal |
| Video RCA output | none |
| Subwoofer RCA output | none |
| Audio RCA output | two RCA outputs |

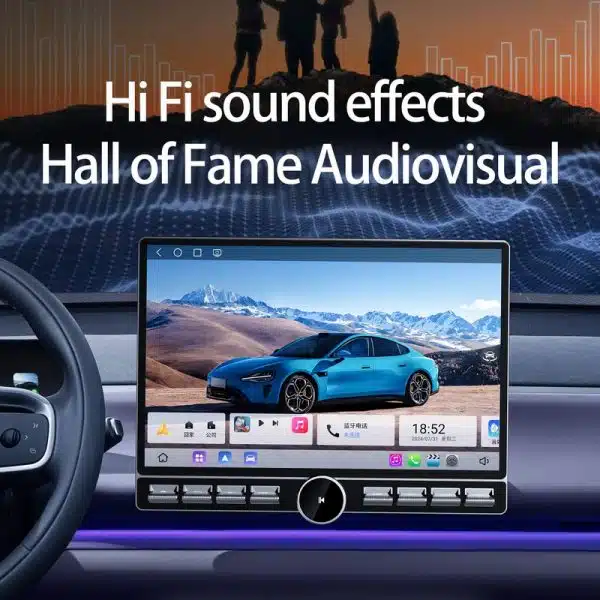

| Audio EQ | 12-band EQ (60HZ-15KHZ) |
| carplay | Optional |
| Remarks | 1. The motherboard has only a single USB
2. The motherboard has no video output 3. The motherboard supports the CARPLAY function (optional 2022.3.19)” |
| T3 overseas 1+16G, 2+16G 2+32G (with AHD and without AHD | |
| Configuration: | |
| Wifi/4G | WIFI |
| Motherboard chip | T303L |
| System | Android 9 system can be upgraded to Android 12 |
| RAM+ROM | 1G+16G / 2G+16G / 2G+32G |
| Display | TN:1024*600 IPS:1024*600 |
| Touch screen | 2.5D curved surface anti-scratch |
| Radio chip | single band 8035/dual band 4754 |
| Radio band | single band FM/dual band FM+AM |
| Bluetooth | 4.0 |
| Timaxing | Support |
| Amplifier IC | 7388 |
| Reverse input: | CVBS signal when no AHD motherboard is used,
AHD signal when AHD motherboard is used |
| Audio RCA input: | 2-way audio input |
| Video RCA input: | CVBS signal when no AHD motherboard is used,
AHD signal when AHD motherboard is used |
| Video RCA output: | 1-way video output |
| Subwoofer RCA output: | Single-band without subwoofer output
(dual-band with 1 RCA subwoofer output) |
| Audio RCA output: | 2-way RCA output |
| Audio EQ: | 12-band EQ (60HZ-15KHZ) |
| External microphone: | Supported |
| Carplay | Optional |
