Thermal Monoculars in France: Essential Tools for Industrial & Public Safety Sectors

France operates the world’s largest share of nuclear energy in its electricity mix, maintains vast wine and cereal agricultural regions demanding precision monitoring, and runs one of Europe’s most advanced civil protection and firefighting services — three sectors where thermal monocular technology is moving from optional to essential. At the core of every effective thermal monocular used in these environments is an LWIR detector module whose NETD, resolution, and operating range determine whether the device delivers actionable thermal intelligence or misses the anomaly that matters. The physics underpinning thermographic camera technology — passive detection of infrared radiation in the 8–14 μm band — makes it uniquely suited to all three: nuclear equipment anomaly detection, crop canopy temperature mapping, and firefighter thermal navigation through smoke.

According to Mordor Intelligence’s uncooled infrared imaging market report, Western Europe and specifically France’s industrial safety and precision agriculture sectors are among the highest-growth areas for uncooled LWIR sensing adoption. For French tactical equipment distributors, industrial OEMs, and outdoor retailers sourcing the LWIR module at the core of a thermal monocular, Verytek’s UVR Series delivers the specifications France’s demanding applications require.

Thermal Monocular Technology for French Industrial Applications

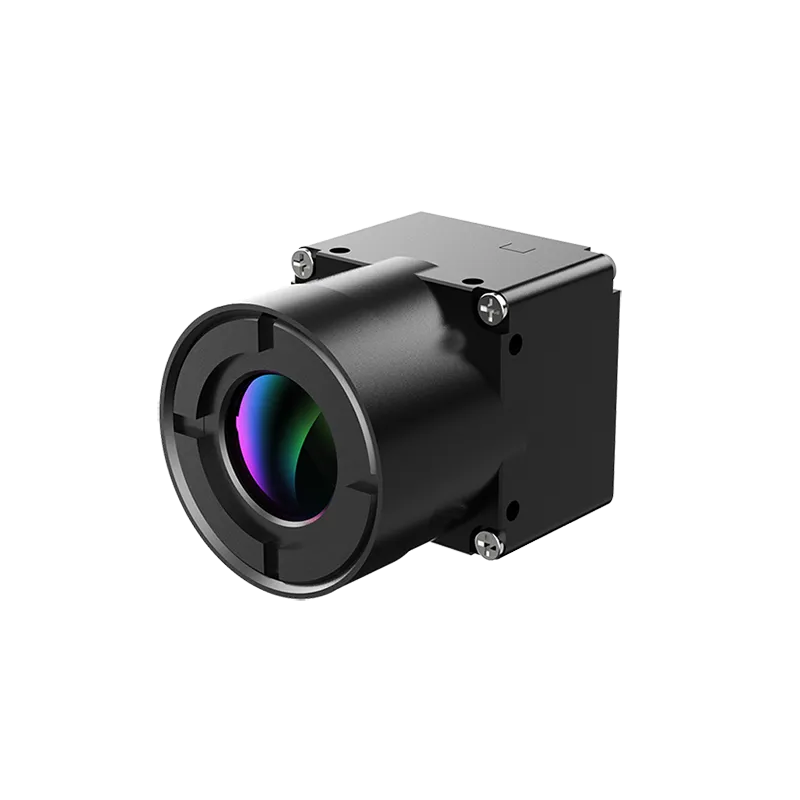

A thermal monocular’s capability is set at the component level: the LWIR module’s pixel pitch determines optical compactness, the NETD determines the minimum detectable temperature difference, and the frame rate determines whether dynamic thermal events are captured without blur. The vanadium oxide microbolometer architecture in Verytek’s UVR Series combines 12 μm pixel pitch, NETD ≤ 40 mK at 25 °C, and frame rates up to 60 Hz into a 21 × 21 × 10.3 mm package weighing less than 8.6 g — enabling French OEMs to build professional-grade thermal monoculars that are light enough for sustained field use by inspectors, agronomists, and first responders.

Core UVR Series Advantages for French Thermal Monocular OEMs

• Shutterless algorithm correction: no NUC blackout during continuous recording — critical for nuclear plant inspection video documentation and live firefighter helmet-cam feeds.
• IP65-compatible module dimensions: 21×21×10.3 mm fits sealed enclosures required for outdoor agricultural drones and firefighting gear exposed to water and particulate.
• Multiple interface options: USB 2.0, MIPI, DVP, UART/I2C — supports both handheld portable designs and integrated drone payload architectures common in French agri-tech and civil protection equipment.
• Wide operating temperature −40°C to +80°C: covers French conditions from Alsatian winter inspections to Mediterranean summer firefighting operations.

Nuclear Plant Inspection and Precision Agriculture with Thermal Monoculars

Nuclear Plant Equipment Inspection

France’s 56 nuclear reactors — operated by EDF across 18 sites — require continuous thermographic monitoring of electrical switchgear, heat exchangers, pipe insulation, and cooling systems to meet the safety standards set by the Autorité de Sûreté Nucléaire (ASN). Thermal monoculars enable inspectors to survey energised equipment non-invasively from safe standoff distances. FLIR’s industrial thermal inspection resources illustrate the sensitivity requirements for detecting electrical hotspots in high-voltage environments — a use case where the UVR Series’ NETD ≤ 40 mK resolves small anomalies that lower-sensitivity modules would miss. The shutterless algorithm ensures uninterrupted documentation video, a requirement for nuclear site safety audit records. For integration with French nuclear industry sensor standards, IEC standards for infrared thermography instruments provide the applicable technical reference framework.

Precision Agriculture Monitoring

France is Europe’s largest agricultural producer, and its precision agriculture sector is deploying drone-mounted thermal monoculars to monitor crop canopy temperatures, detect irrigation anomalies, and identify fungal stress in vineyards and cereal crops before yield losses occur. The UVR3 (384×288, <8.6 g, <0.42 W) is the preferred module for agricultural drone payloads where battery life and payload mass must be minimised. Its UART/I2C interface enables direct integration with the agricultural IoT edge controllers used by French agri-tech companies. InfraTec’s thermography industrial applications document how LWIR sensors enable non-contact temperature measurement of agricultural targets at drone altitude — an approach that scales to the large field sizes characteristic of France’s grain belt.

Firefighting, Rescue, and Smart City Surveillance

France’s Sapeurs-Pompiers deploy thermal monoculars for interior firefighting navigation, victim location through smoke, and post-incident hotspot monitoring. The requirements for firefighting thermal monoculars are exacting: continuous operation under physical shock and vibration, image output unaffected by NUC interruptions, and a SWaP profile that fits helmet-mounted or chest-harness configurations. The UVR2 (256×192, <7 g, <0.35 W) meets all these constraints with the smallest and lightest module profile in the UVR Series, while still delivering NETD ≤ 40 mK sensitivity for reliable victim detection through fire smoke. For urban surveillance and smart city applications — CCTV thermal integration, crowd thermal monitoring at public events — the UVR6 (640×512) provides the resolution for positive identification at the extended ranges required in public space deployments. Hikvision’s public safety thermal integration documentation illustrates how thermal cores of this specification tier are embedded into urban security platforms.

Selecting the Right Thermal Monocular Module for France’s Market

French tactical equipment distributors and outdoor retailers sourcing OEM-built thermal monoculars should evaluate module selection against the end application’s detection range, power budget, and regulatory compliance requirements. The table below provides the full specification baseline from Verytek’s official product page.

Model	Resolution	Frame Rate	Pixel Pitch	NETD	Power (USB @25°C)	Weight (w/o lens)	Dimensions
UVR6	640×512	30/60 Hz	12 μm	≤40 mK	<0.7 W	—	21×21×10.3 mm
UVR3	384×288	30/60 Hz	12 μm	≤40 mK	<0.42 W	<8.6 g	21×21×10.3 mm
UVR2	256×192	25/50 Hz	12 μm	≤40 mK	<0.35 W	<7 g	21×21×10.3 mm

For bulk order enquiries and technical consultation on module integration for French market thermal monocular products, contact Verytek’s sales team. Volume pricing, sample lead times, and EU compliance documentation assistance are available upon request. The Guide Infrared thermal imaging knowledge base and MarketsandMarkets infrared market data provide additional context for French procurement managers evaluating the commercial landscape.

The following integration path is recommended for French thermal monocular OEMs and distributors selecting the optimal UVR variant for each application:

1. Nuclear plant inspection handheld: UVR6 (640×512, shutterless) via USB 2.0; continuous imaging without NUC blackout for audit-grade documentation records required by ASN.
2. Precision agriculture UAV: UVR3 (<8.6 g, <0.42 W) via MIPI or USB 2.0; UART/I2C for agri-IoT controller integration across French vineyard and cereal operations.
3. Firefighting helmet / body-worn camera: UVR2 (<7 g, <0.35 W) — lightest module for chest-harness or helmet mounting in Sapeurs-Pompiers operational gear.
4. Smart city CCTV thermal overlay: UVR6 via DVP/BT656 for existing CCTV backbone integration; high resolution for crowd monitoring at extended urban deployment ranges.

“The UVR series delivers a balanced combination of performance, compact size, light weight, low power consumption, and cost efficiency — fully compliant with SWaP requirements for airborne platforms.” — Verytek Product Documentation
