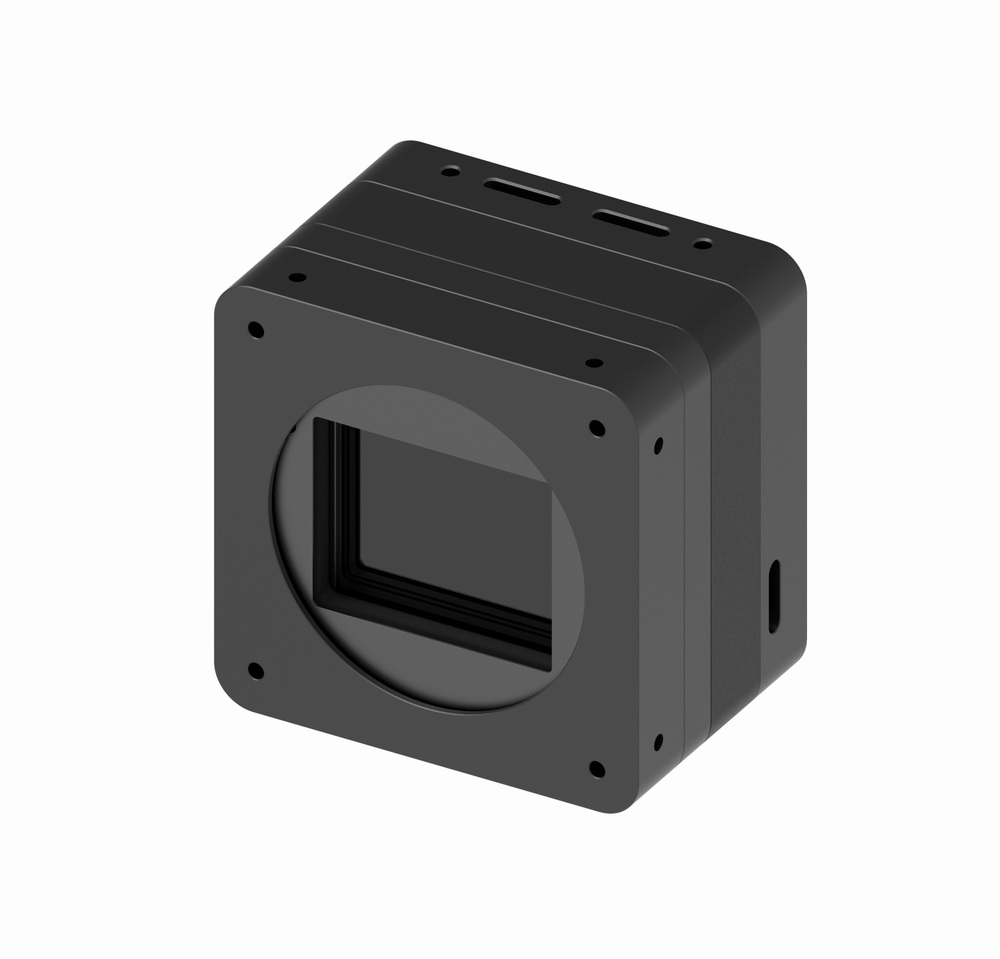

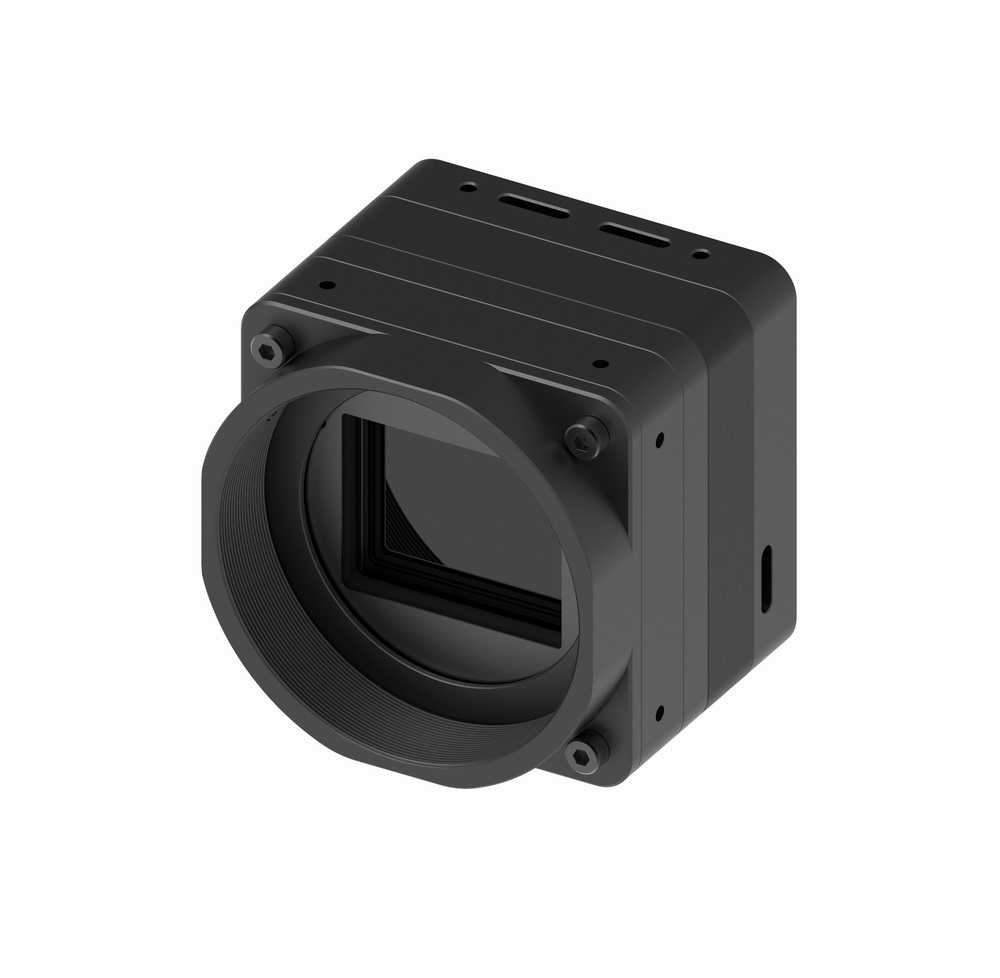

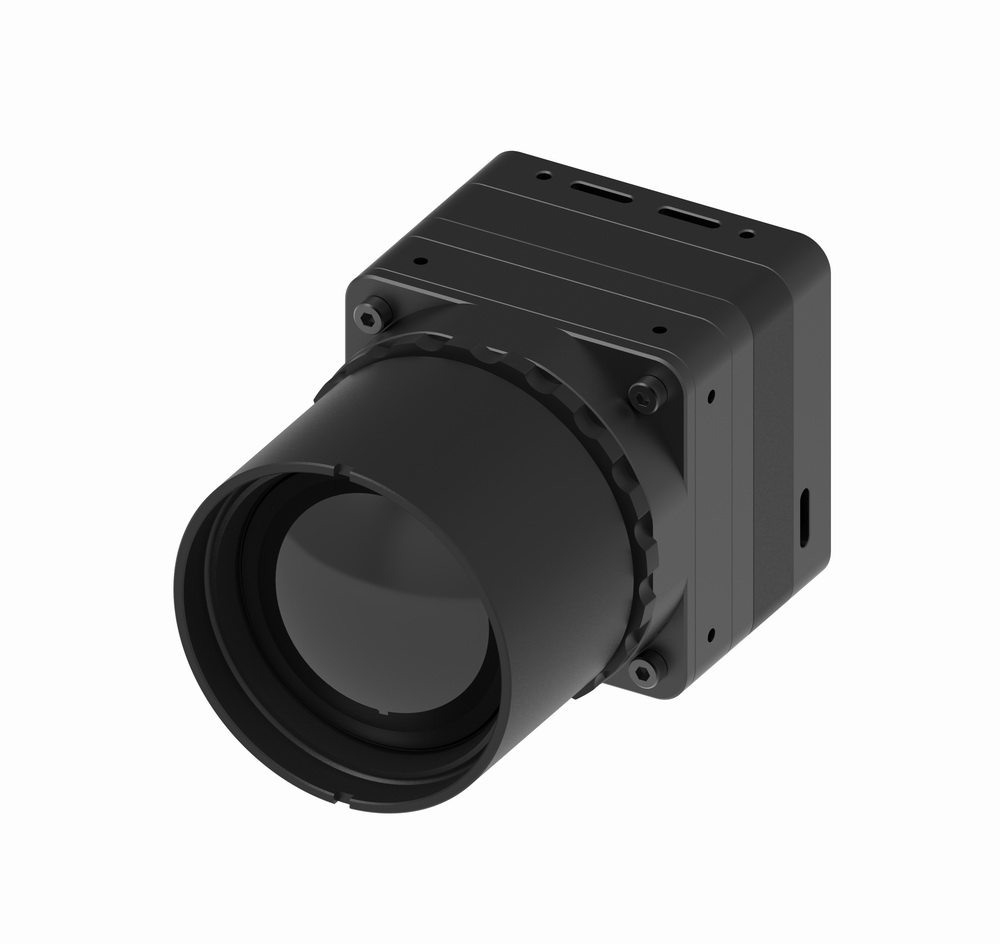

UH Series Uncooled Infrared Imaging Module
The UVH Series Uncooled Infrared Thermal Imaging Core is developed based on a 1280×1024 high-resolution infrared detector. It delivers superior image quality and comprehensive functions, enabling stable and reliable operation in various complex environmental conditions. It meets users’ demands for high-resolution imagery, high frame rate and long-distance detection.
Dedicated ASIC design with high cost performance.
Compatible with a full range of uncooled infrared detectors.
Miniature size, lightweight and ultra-low power consumption.
Embedded with multiple image algorithms for outstanding image quality and stable performance.
Widely applicable in mass production for imaging equipment and optoelectronic system integration, covering security monitoring, vehicle night vision, IoT and Industry 4.0 scenarios.
Specification
| Item | UVH 1280-MCD1-SDI Thermal Imaging Module (RTDS123C) |
|---|---|
| Model | UVH12A |
| Detector Type | Vanadium Oxide (VOx) Uncooled Focal Plane Array |
| Resolution | 1280 × 1024 |
| Pixel Pitch | 12 μm |
| Response Spectral Band | 8 ~ 14 μm |
| Detector Frame Rate | 30Hz / 50Hz |
| NETD | < 40mK (@ 25°C, F/1.0, 30Hz) |
| Thermal Time Constant | < 12 ms |
| Image Adjustment | Brightness / Contrast, Image Enhancement, Image Denoising, etc. |
| Polarity / False Color | White Hot / Black Hot; Multiple false color palettes supported |
| Electronic Zoom | 1× ~ 4× |
| Analog Video Output | AHD |
| Digital Video Output | BT1120 / LVDS / SDI / CameraLink / USB2.0 |
| Communication Interface | RS422 (RS232, TTL optional) |
| Power Input | DC 9~24V, typical 12V |
| Power Consumption | ≤ 3.5W (@ 25°C steady state) |
| Dimensions (excl. lens) | ≤ 44 × 44 × 39 mm |
| Weight (excl. lens) | < 120 g |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -50°C ~ +80°C |
| Humidity | 0% ~ 90% RH |
| Vibration | 6.06g, random vibration, all axes |
| Shock | 80g @ 4ms, post-peak sawtooth pulse, 3-axis 6-direction |
