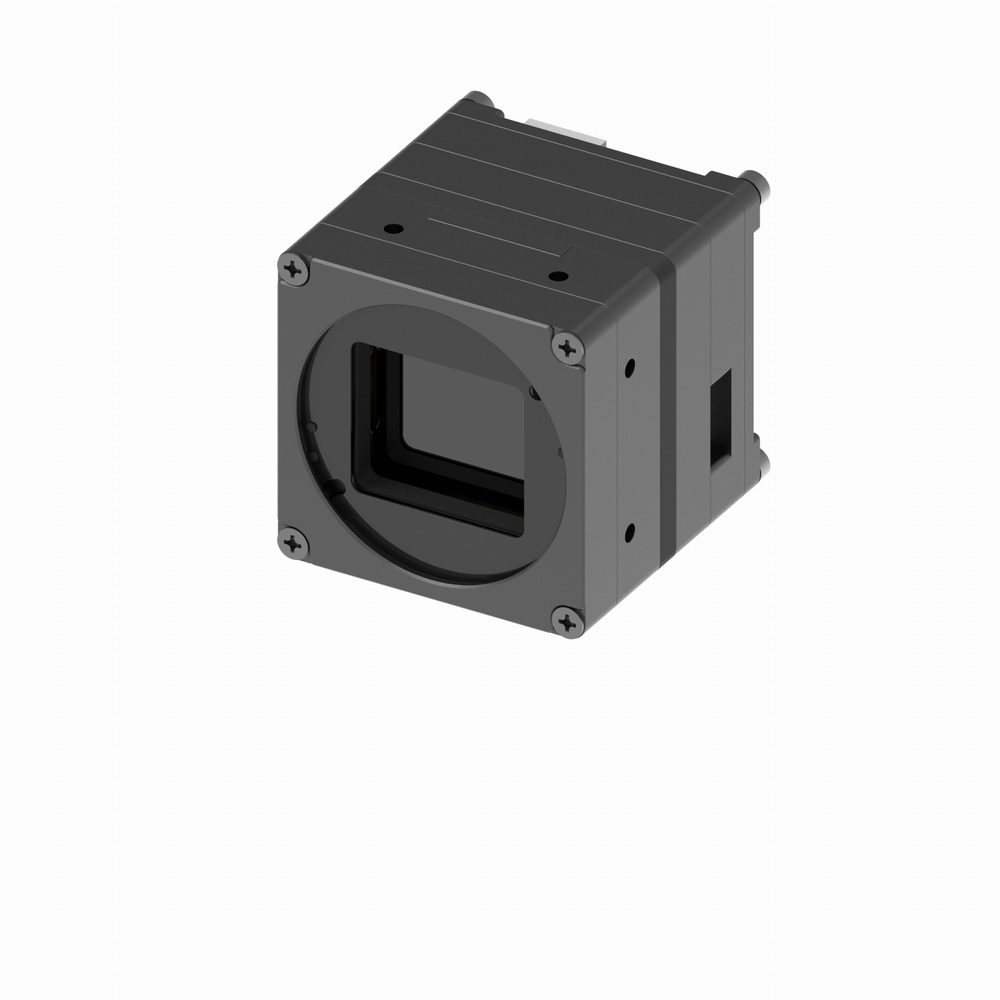

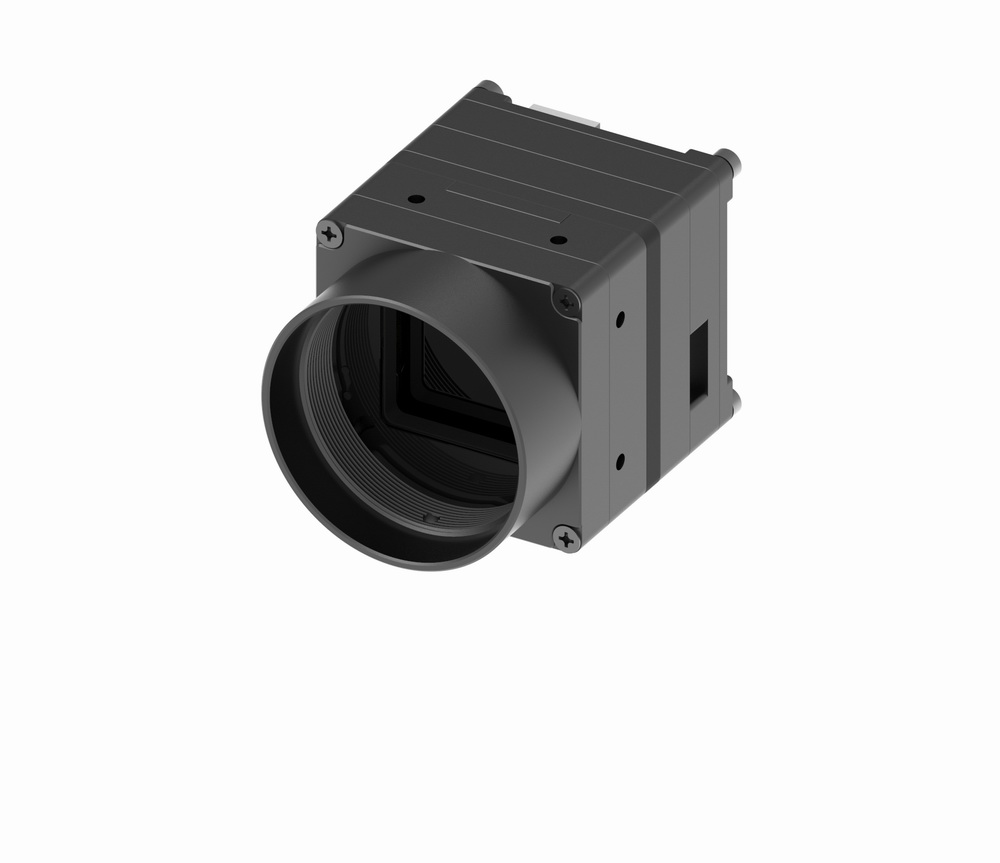

UVS Series High-Performance Thermal Imaging Core for EO/IR Systems
✅Product Overview
The UVS Series High-Performance Thermal Imaging Core is designed for advanced applications requiring superior image quality, system-level integration, and long-term operational stability.
Unlike standard thermal modules, the UVS series is optimized for electro-optical (EO/IR) systems, enabling seamless integration into multi-sensor platforms, long-range surveillance equipment, and professional thermal imaging devices.
Built with support for VOx and a-Si uncooled infrared detectors, the UVS series combines a robust hardware architecture with advanced image processing algorithms to deliver high-contrast, stable, and reliable thermal imaging performance in complex environments.
✅Key Advantages
- High-performance image processing engine for enhanced detail and clarity
- Support for multiple detector types (VOx / a-Si)
- Flexible multi-interface output (SDI, CameraLink, LVDS, USB, BT.1120)
- Wide input voltage range (5–28V DC) for system compatibility
- High stability for continuous and mission-critical operation
- Expandable functions including tracking, OSD, and image enhancement
✅Why Choose UVS Series
The UVS series is engineered for professional system integrators and high-end OEM projects:
- Designed for EO/IR system integration and multi-sensor fusion platforms
- Supports custom firmware, hardware, and interface development
- Enables high-reliability deployment in harsh environments
- Suitable for long-duration operation and demanding use cases
- Provides scalable architecture for advanced imaging systems
✅ Technical Specifications
Below are the key specifications of the UVS series thermal imaging cores:
UVS Series Thermal Imaging Core Specifications
| Model | UVS 312 / 317 | UVS 612 / 617 |
|---|---|---|
| Detector Type | VOx / a-Si Uncooled Infrared Detector | VOx / a-Si Uncooled Infrared Detector |
| Resolution | 384 × 288 | 640 × 512 |
| Spectral Range | 8μm – 14μm | 8μm – 14μm |
| Pixel Pitch | 12μm / 17μm | 12μm / 17μm |
| NETD | ≤ 40 mK | ≤ 40 mK |
| Frame Rate | 50 Hz | 50 Hz |

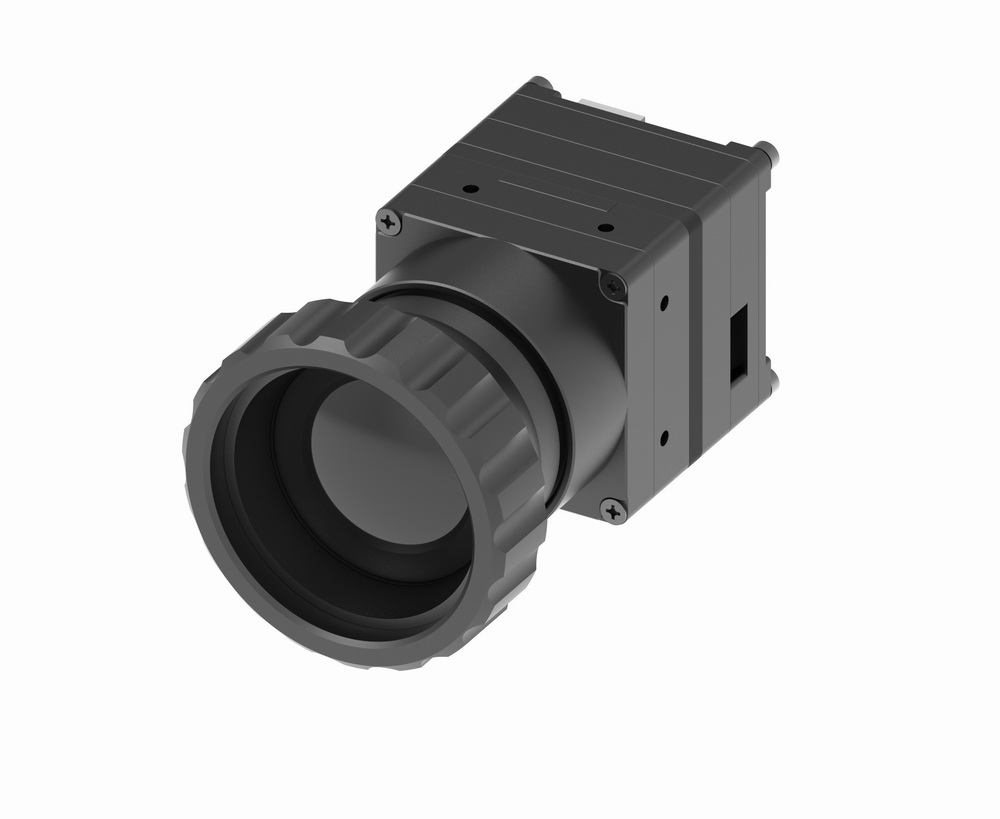

| Lens | Compatible with various lenses | Same |
| Color Palettes | Black Hot / White Hot / Multiple Palettes | Same |
| Video Output | Analog (Standard): CCIR PAL | Same |
| Digital Output (Optional) | SDI, CameraLink, LVDS, BT.601, BT.656, BT.1120, USB 2.0 | Same |
| Functions | Lens motor control (focus, zoom, iris), crosshair overlay, high-precision tracking | Same |
| Alarm output (threshold adjustable), image enhancement, bad pixel correction | Same | |
| Power Supply | 5 – 28 V DC | 5 – 28 V DC |
| Power Consumption | Typical 1 W | Typical 1.2 W |
| Communication Interface | Default: RS-232; Optional: RS-422, RS-485, TTL | Same |

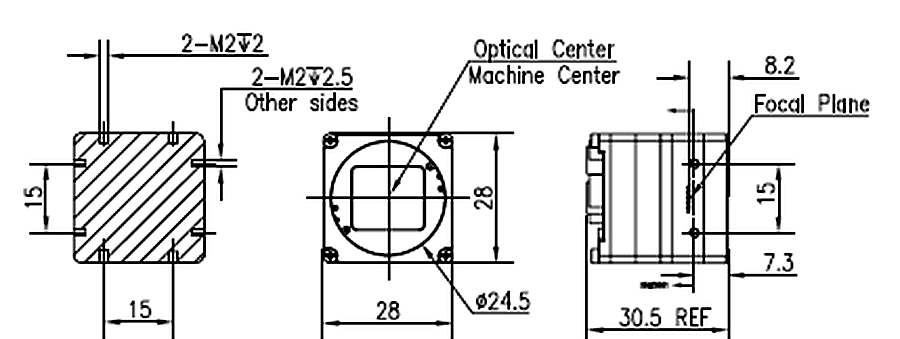

| Dimensions | Standard: 28 × 28 × 30.5 mm | Same |
| Humidity | 5%RH – 95%RH, non-condensing | Same |
| Operating Temperature | -40°C ~ +80°C | -40°C ~ +80°C |
| Storage Temperature | -45°C ~ +85°C | -45°C ~ +85°C |
| Vibration | 6.06 g, random vibration, all axes | Same |
| Shock | 80 g @ 4 ms, half-sine, 3 axes, 6 directions | Same |
| Altitude | 12 km | 12 km |
| Extended Functions | Up to 300 Hz high-frame-rate output*, target centroid extraction | Same |
✅Advanced Functions
- Lens motor control (focus, zoom, iris)
- Crosshair overlay and on-screen display (OSD)
- High-precision target tracking
- Alarm output with adjustable thresholds
- Image enhancement and bad pixel correction (BPC)
- High frame rate output up to 300 Hz*
- Target centroid extraction
✅ Applications
The UVS series is widely used in advanced and professional applications:
- Electro-Optical (EO/IR) Systems
- Long-Range Surveillance & Border Security
- Vehicle-Mounted Thermal Imaging Systems
- Helmet-Mounted Vision Systems
- Multi-Sensor Fusion Platforms
- Industrial Automation and Smart Monitoring Systems
✅ Interfaces & Integration
The UVS series supports comprehensive integration requirements:
- Analog video: CCIR (PAL)
- Digital video: SDI, CameraLink, LVDS, BT.601, BT.656, BT.1120, USB
- Communication: RS-232 (default), RS-422 / RS-485 / TTL (optional)
This ensures seamless compatibility with embedded systems, AI platforms, and complex electro-optical architectures.
✅Customization Services
Verytek offers extensive customization options:
- Interface and protocol customization
- Image processing tuning and optimization
- Firmware and software development
- System-level integration support
✅ Call to Action
Looking for a high-performance thermal imaging core for your EO/IR system?
Contact us for:
- Technical consultation
- OEM / ODM cooperation
- Custom development solutions
