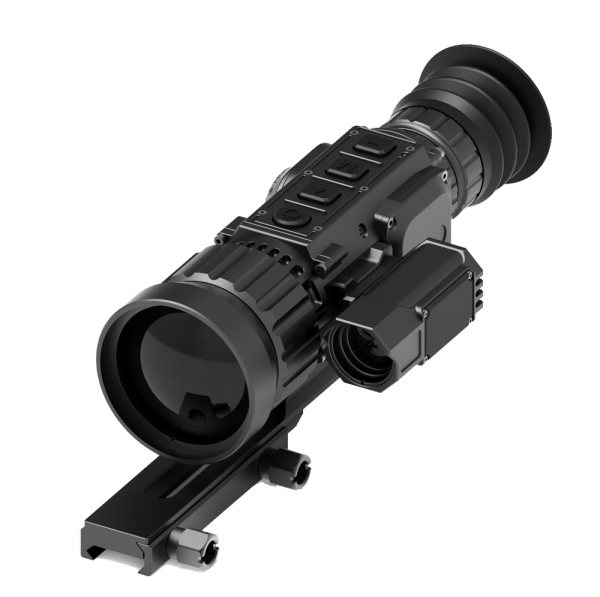

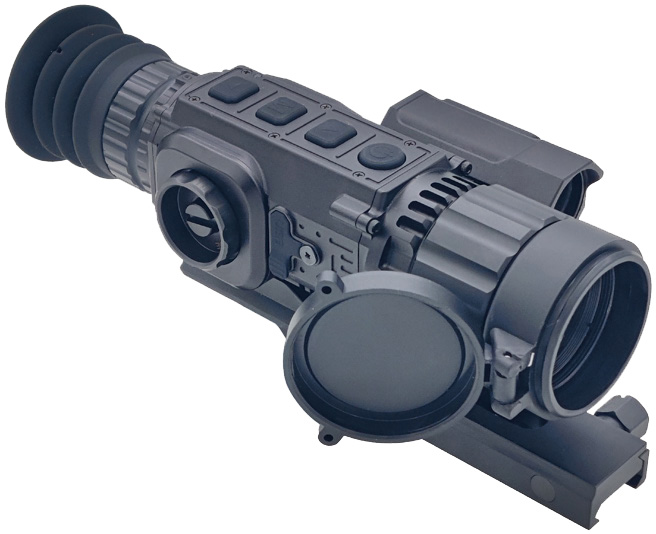

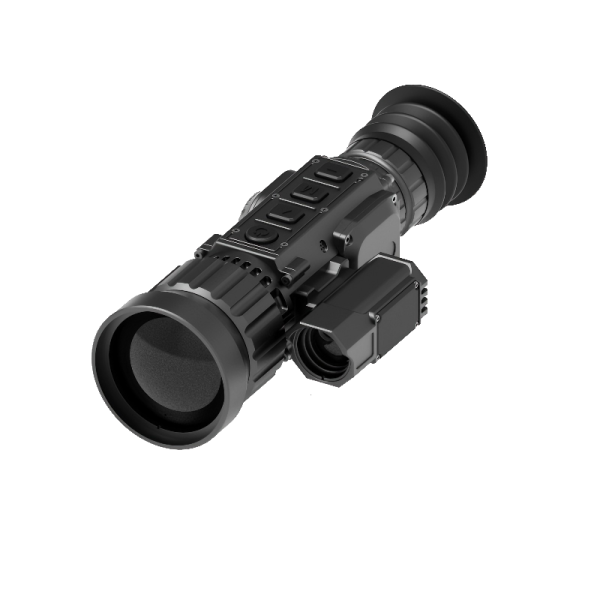

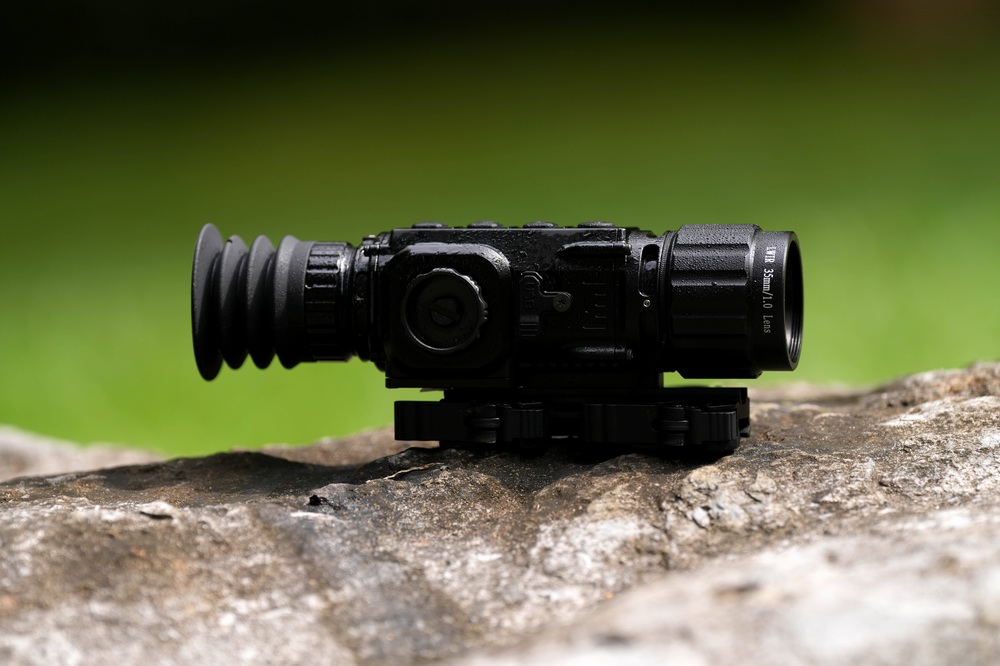

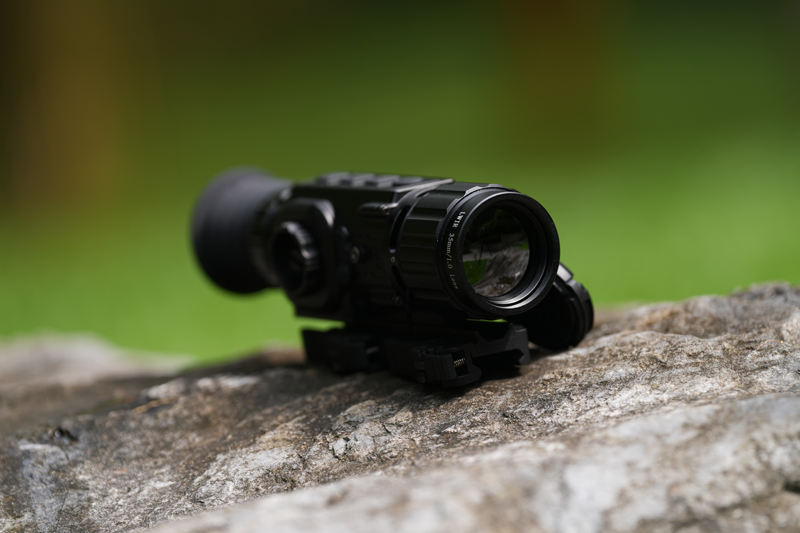

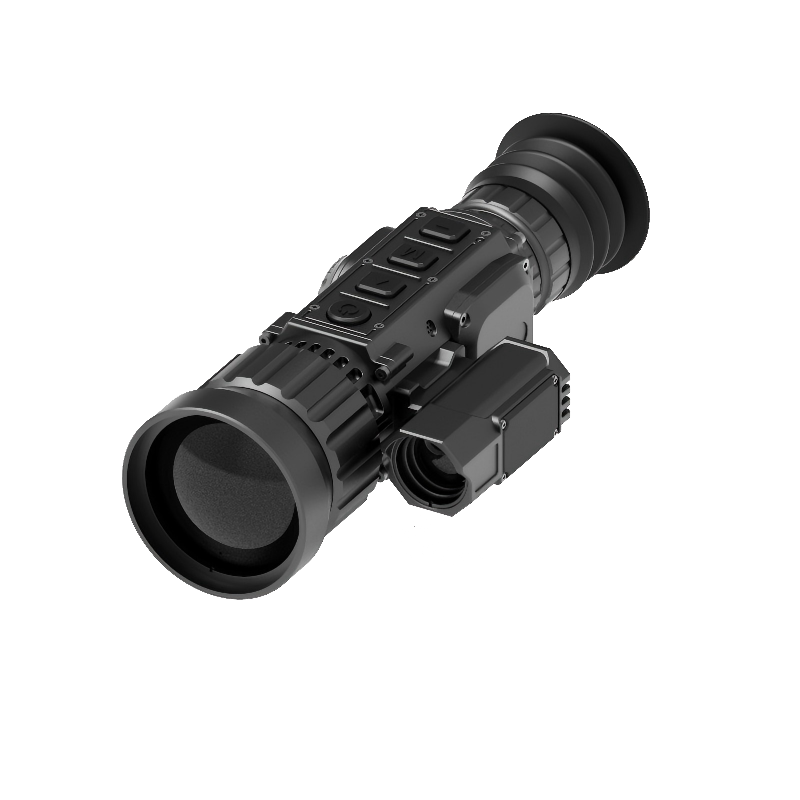

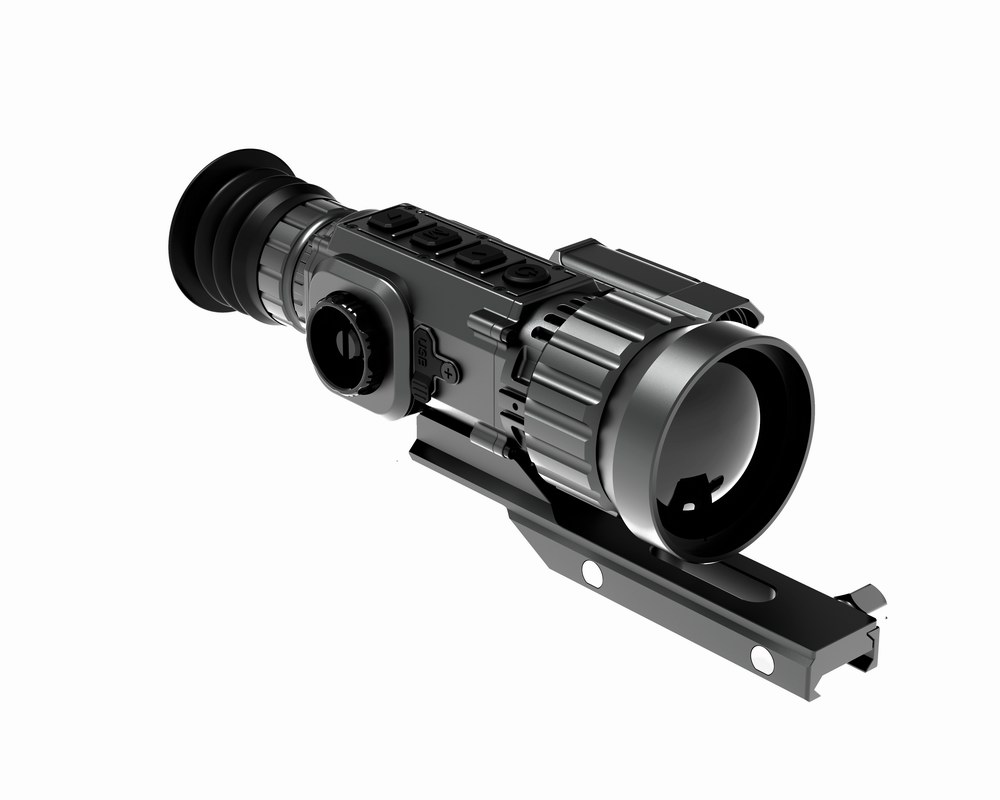

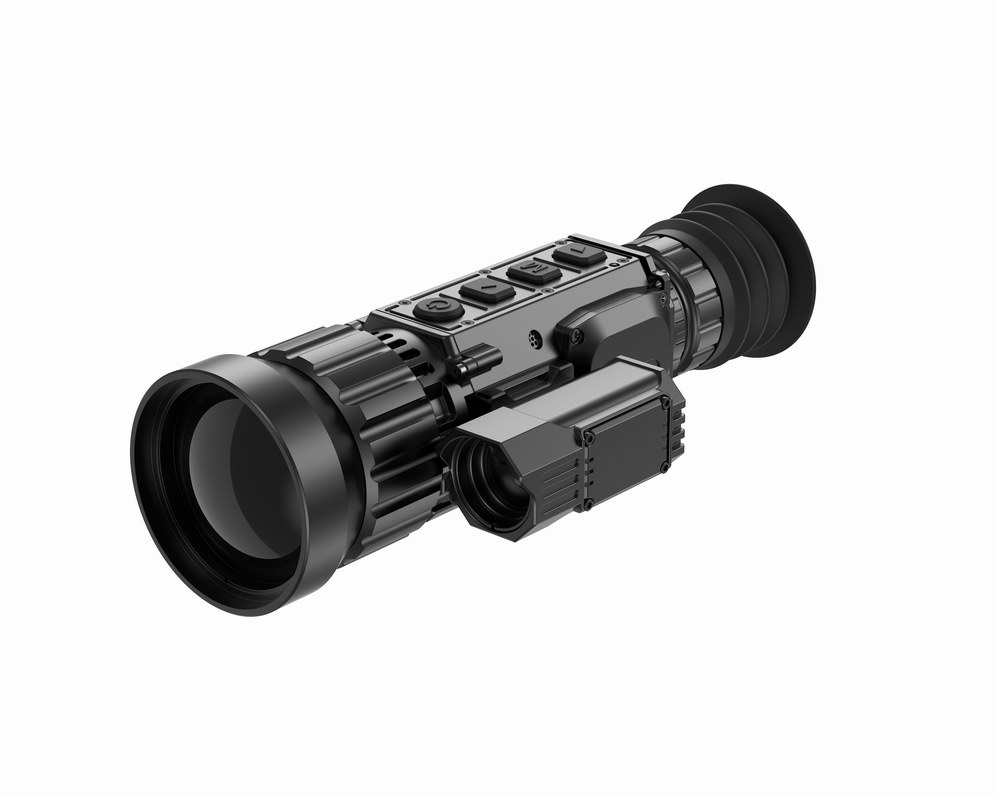

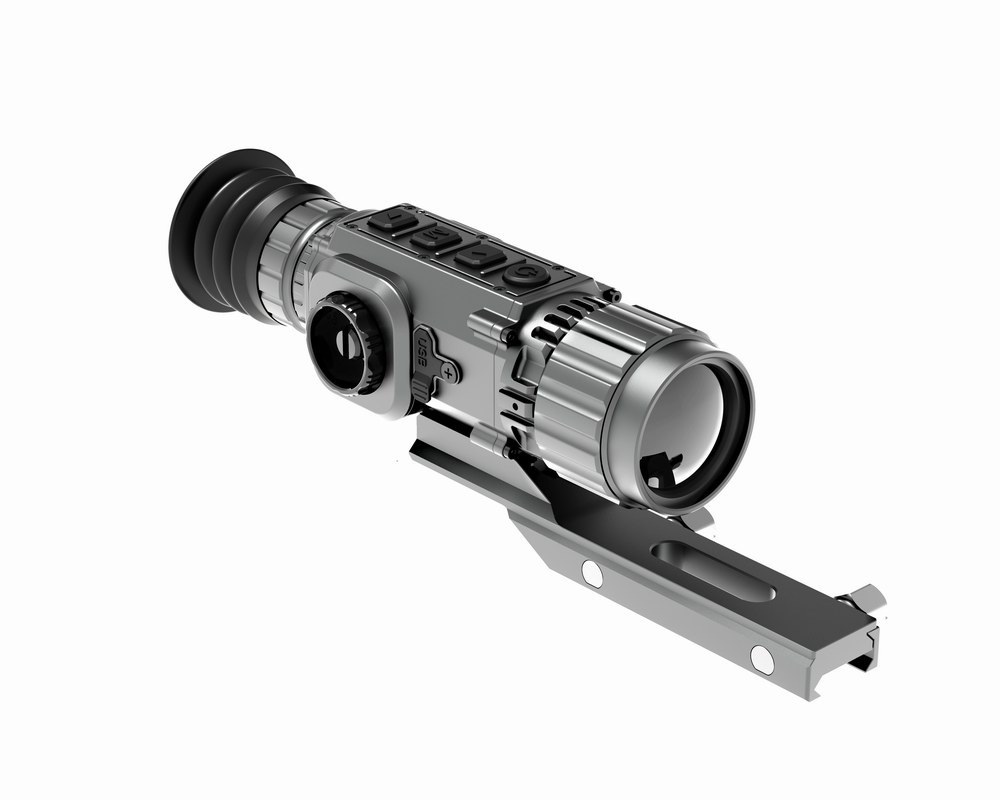

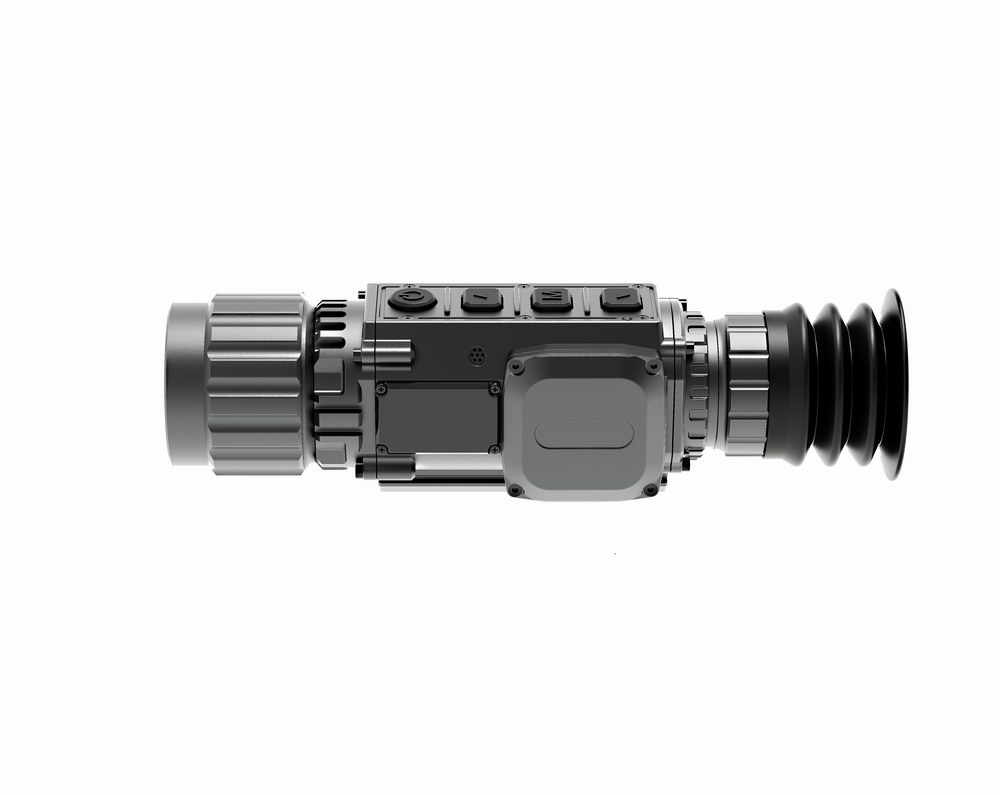

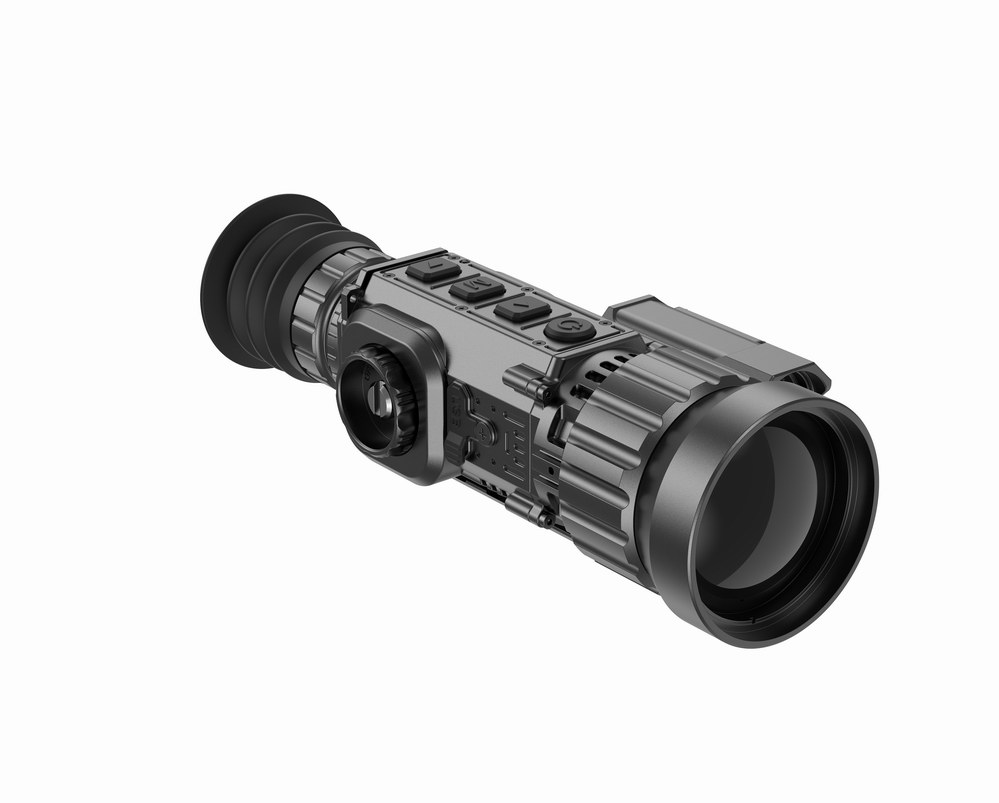

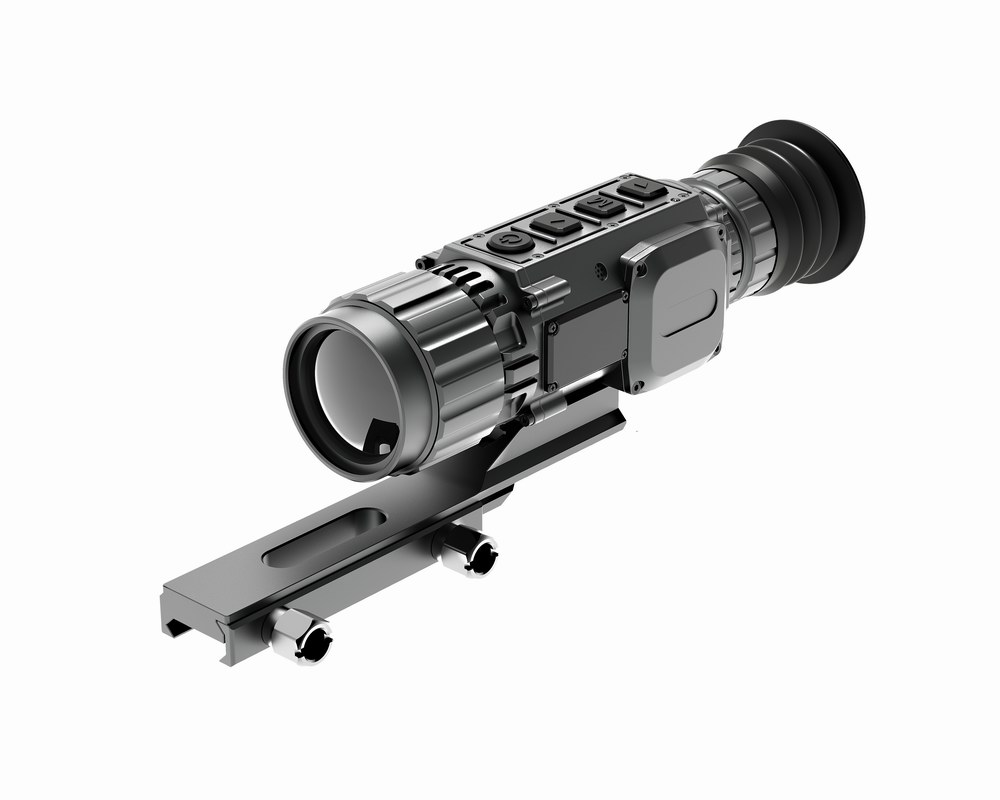

TS Thermal Sight / Thermal scope

Compact Thermal Imaging Sight for Night Detection and Outdoor Operations

Product Overview

The TS Thermal Sight is a compact and rugged thermal imaging sight designed for night-time detection, target recognition, and situational awareness in low-light or no-light environments. Equipped with uncooled VOx infrared sensors and available in 384×288 and 640×512 resolutions, TS delivers stable thermal imaging performance across a wide range of outdoor and security applications.

Operating in the 8–14 µm spectral range, TS Thermal Sight detects heat signatures independent of ambient light, making it suitable for environments where traditional optical devices fail. Its lightweight design, multiple lens options, and real-time image output make it a practical choice for both professional users and system integrators.

High-Performance Thermal Imaging Core

TS Thermal Sight uses an uncooled VOx microbolometer with up to 640×512 resolution and 50 Hz refresh rate, providing clear thermal images and smooth motion rendering. This ensures reliable detection of human, animal, and equipment heat signatures during night operations.

Flexible Optical Configuration

Multiple objective lens options (such as 25 mm, 35 mm, and 50 mm) allow users to balance field of view and detection distance based on real-world usage requirements. This flexibility simplifies SKU selection for distributors and procurement teams.

Compact, Lightweight, and Field-Ready

With a compact form factor and lightweight housing, TS Thermal Sight is suitable for handheld use or mounting on standard platforms. The rugged design supports outdoor deployment across varying environmental conditions, reducing replacement and maintenance costs.

Real-Time Connectivity and Storage

Built-in Wi-Fi transmission, onboard storage support, and a Type-C interface enable real-time image sharing, recording, and data review. These features support training, post-analysis, and remote viewing scenarios.

Multiple Imaging Modes for Practical Use

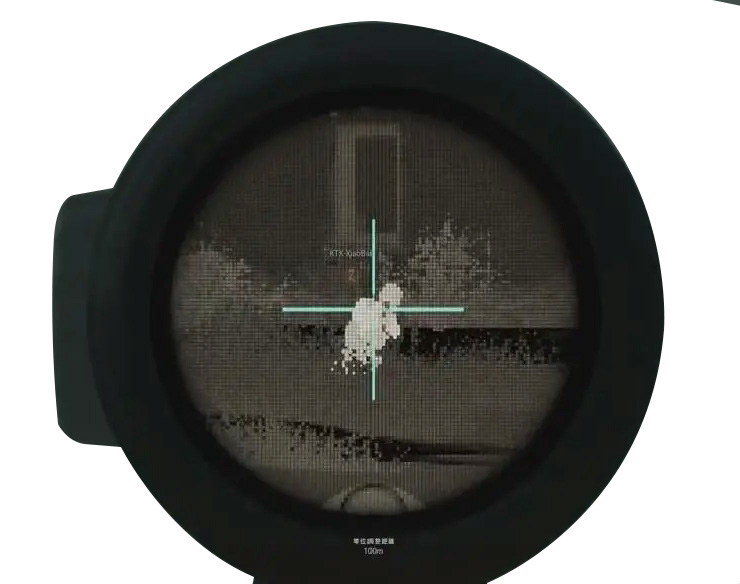

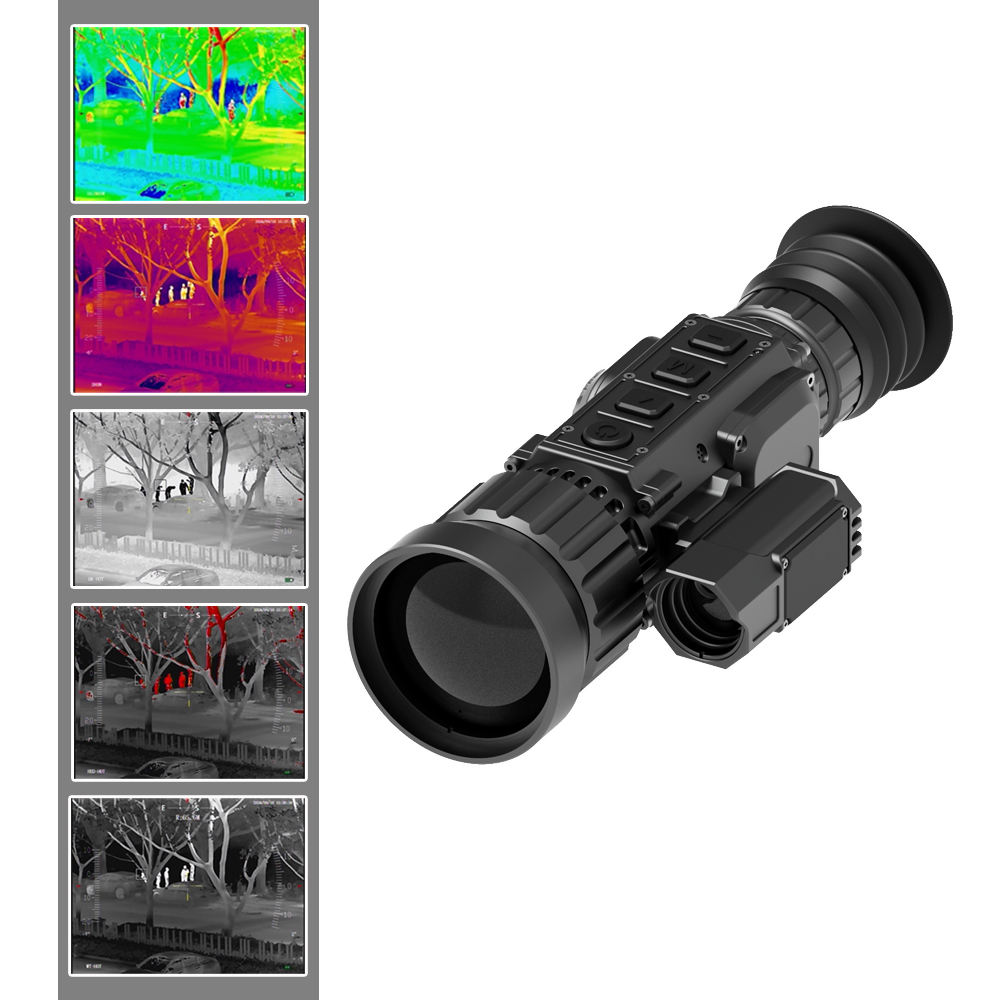

TS offers White Hot, Black Hot, and pseudo-color modes, along with electronic zoom options, allowing operators to adapt image contrast and detail presentation to different terrains and operational needs.

Typical Application Scenarios

Night-time Surveillance and Security Patrols
Outdoor Exploration and Navigation
Search and Rescue Assistance in Low Visibility
Wildlife Observation and Monitoring
Thermal Detection for Remote or Unlit Areas

These scenarios align with procurement requirements for portable, reliable, and easy-to-deploy thermal imaging equipment.

Why Choose TS Thermal Sight

TS Thermal Sight focuses on deployability and consistency, not experimental features:

Standardized configurations for easier sourcing
Proven uncooled thermal technology
Low learning curve for end users
Balanced performance-to-cost ratio
Suitable for both individual and bulk procurement

TS Thermal Sight is positioned as a ready-to-use thermal imaging solution, not a concept device.

Versatile Uses

Thermal sight ,scope thermal,thermal rifle scope,best thermal scopes,thermal pistol sight,thermal weapon sight,
thermal sight,thermal scope,thermal rifle scope,thermal weapon sight,

TS Series thermal sight Models Specification Table
Models		TS2	TS3	TS6
Detector Type		VOx Uncooled Microbolometer
Resolution		256×192	384×288	640×512
Spectral Range		8 μm ~ 14 μm
Pitch Size		12 μm
NETD		≤ 40mK@ 25° C, @ F/1.0
FPS		50Hz
Lens Focal Length		19mm F1	35mm F1
		(25mm F1 Optional)	(25mm F1/50mm F1 Optional)
FOV		9.2° ×6.9° (19mm)	10.5° ×7.9° (25mm)	12.5° ×10° (35mm)
		7.5° ×5.3° (25mm)	7.5° ×5.6° (35mm)	8.8° ×7° (50mm)
			5.3° ×3.9° (50mm)
Focusing		Manual
Display		Monocular Color OLED, 0.39”,1024×768
Diopter		-8~+3
Exit pupil		38mm
Detection distance	Upright adult	800m(19mm) / 1000m(25mm) / 1450m(35mm) / 2000m(50mm)
	Mid truck	1800m(19mm) / 2400m(25mm) / 3400m(35mm) / 4800m(50mm)
Recognition distance	Upright adult	400m(19mm) / 500m(25mm) / 730m(35mm) / 1000m(50mm)
	Mid truck	900m(19mm) / 1200m(25mm); / 1700m(35mm) / 2400m(50mm)
Image Patterns		Black Hot / White Hot / pseudo color
Digital zoom		1×/2×/ 3× /4×
PIP		//	support
WIFI		Image transmission（Android only）
Power supply		CR123A Rechargeable lithium battery, 4 batteries
Battery Life		≥ 4 h
Memory		64G（512GB Max）
Mounting Interface		Picatinny mount(Three segments adjustable)
Weight		≤ 650g (Battery included)
Language		Simplified Chinese / English / Russian etc.
Size (L ×W ×H)		≤ 260mm × 60mm × 80mm
Electrical interface		Type-C(Power supply, Cvbs output, Media management)
Shock		≤ 1000g
Operating temperature		-20℃ ~ + 55℃
Storage Temperature		-40℃ ~ + 70℃

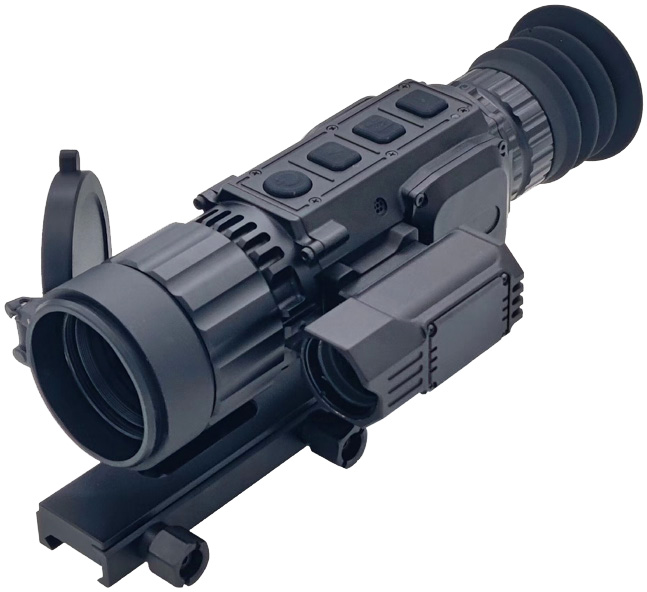

Optional Function (*)		Laser rangefinder（1.0km Max）
