U13.5 Thermal Camera
U16 Thermal Camera

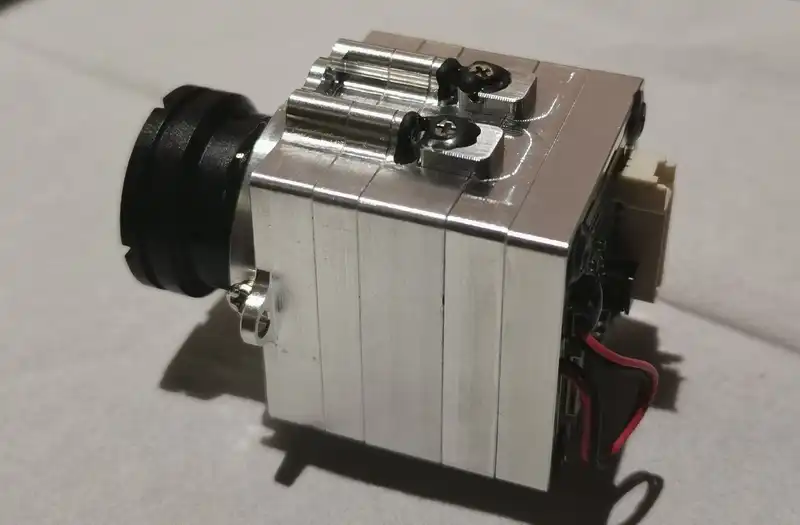

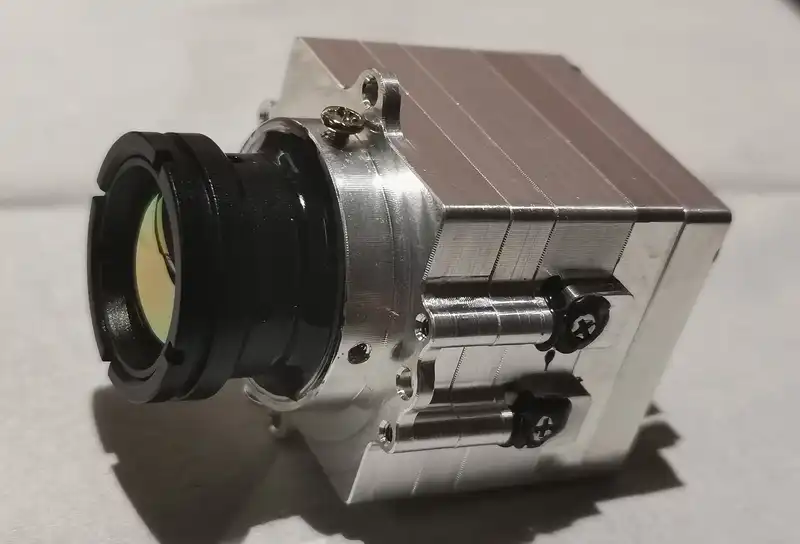

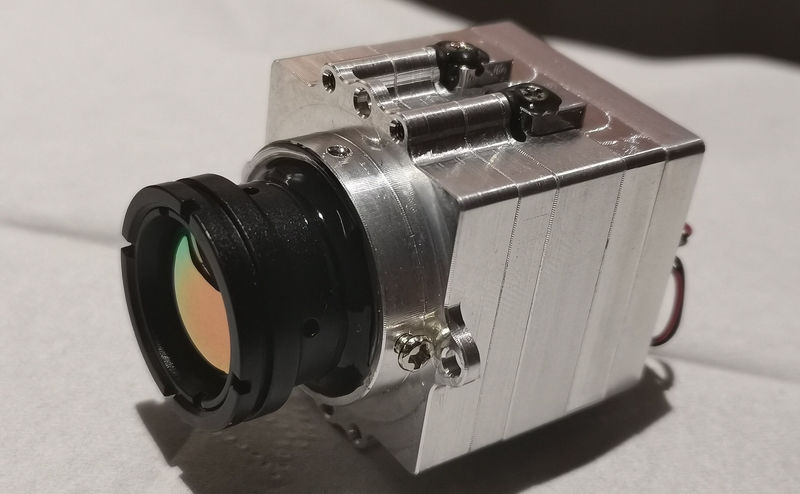

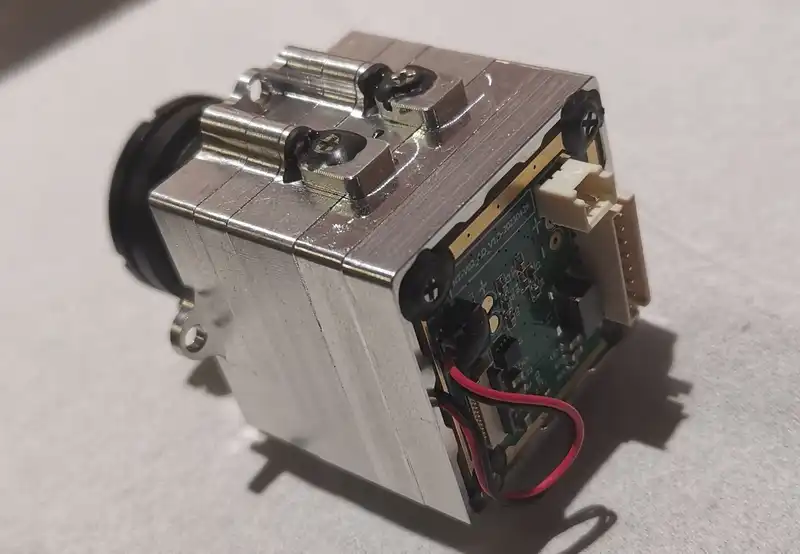

As a leading manufacturer of cooled uncooled infrared detectors & thermal modules, iSun digitech developes a tiny size and lightweight infrared thermal imaging core , which is the compact version of infrared camera core U13.5 / U16.
Fully oriented for SWaP-C (size-weight-and- power-cost), the size and weight of iSun-U13.5 infrared camera core has already been at the forefront in the industry.It is the best choice for customers who have restrict requirements on size and weight when integrating their own drones.
Providing 640×512/12μm self-developed wafer-level infrared detector, lens protection grade IP67, imaging and temperature measurement version, and various SDK solutions, the iSun-U13.5 thermal module responds to space constraints with smaller size and lighter weight, achieves longer battery life with lower power consumption, overcomes integration problems in the consumer electronics field, and provides more solutions for compact and portable products.
It is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Disaster Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
Main Features:
Compact & Lightweight Design
• Size: L35*W35*49mm
• Weight: 55g
• Power consumption as low as 1.3W(5V/260mA)
• Clear Image & Accurate Radiometry
• Support Windows/Linux/ARM SDK
• Support regional, point & isotherm temperature measurement
• Various Interfaces for Easy Integration
Specification :
| Model: | iSun-U13.5 | iSun-U16 | |
| Thermal sensor | Sensor type | VOX | VOX |
| Resolution | 384×288 | 640×512 | |
| Pixel size | 12μm | 12μm | |
| Working band | 8~14μm | 8~14μm | |
| NETD | ≤40mK @25℃，F#1.0，25Hz | ≤40mK @25℃，F#1.0，25Hz | |
| Thermal time constant | ＜12ms | ＜12ms | |
| Frame rate | 50Hz | 50Hz | |
| Non-uniformity correction | Automatic shutter correction | Automatic shutter correction | |
| Lens | Focusing method | Manual focus | Manual focus |
| Lens aperture | 1.0 | 1.0 | |
| Focal length | 13.5mm | 16mm | |
| FOV(H*V) | 20°×15° | 28°×22° | |
| Focus range | ＞ 5.0m | ＞ 5.0m | |
| Detection distance | Human | <1350m | <1600m |
| vehicle | <1720m | <2050m | |
| Recognition distance | Human | <340m | <400m |
| vehicle | <430m | <510m | |
| System features | Color palettes | White Hot | White Hot |
| Hotspot tracking | Turn on or off(Default off) | Turn on or off(Default off) | |
| Video output | Format | PAL | PAL |
| Resolution | 720×576 | 720×576 | |
| Power | Operating voltage | 5.0V±0.2V | 5.0V±0.2V |
| Power consumption | 1.3W(5V/260mA) | 1.3W(5V/260mA) | |
| Work/storage environment | Operating temperature | -20℃ ~ +50℃ | -20℃ ~ +50℃ |
| Storage temperature | -30℃ ~ +70℃ | -30℃ ~ +70℃ | |
| Dimensions/weight | Size(Bracket not included） | L35*W35*49mm | L35*W35*49mm |
| Weight(Bracket not included） | 55g | 55g | |
