U01-10 Thermal imaging Camera

Detector Type: Vanadium Oxide non-cooling Infrared Focal Plane Detector

Thermal imaging camera can be used on field equipment such as drones, aircraft and vehicles

Thermal imaging camera

Thermal imaging camera can be used on field equipment such as drones, aircraft and vehicles.

Detector Type: Vanadium Oxide non-cooling Infrared Focal Plane Detector



Specification:

Model: U01-3.6 U01-10
Thermal sensor Sensor   type VOX
Resolution 256×192
Pixel size 12μm
Working band 8~14μm
NETD ≤50mK @25℃,F#1.0,25Hz
Thermal time constant <10ms
Frame rate 25Hz
Non-uniformity correction Automatic shutter   correction
Lens Focusing   method Manual focus
Lens aperture 1.0
Focal length 3.6mm 10.0mm
FOV(H*V) 48.9°×36.67° 17.46°×13.14°
Focus range > 1m > 3.0m
Detection distance Human <340m <944m
vehicle <500m <1389m
Recognition distance Human <85m <236m
vehicle <125m <347m
System features Color   palettes White   hot
Hotspot tracking /
Video output Format PAL
Resolution 720×576
Power Operating   voltage 5.0V±0.2V
Power consumption 0.4W(5V/80mA)
Work/storage environment Operating   temperature -20℃ ~   +50℃
Storage temperature -30℃ ~   +70℃
Dimensions/weight Size(Bracket not included) L21*W21*H30mm
Weight(Bracket not included) 18g

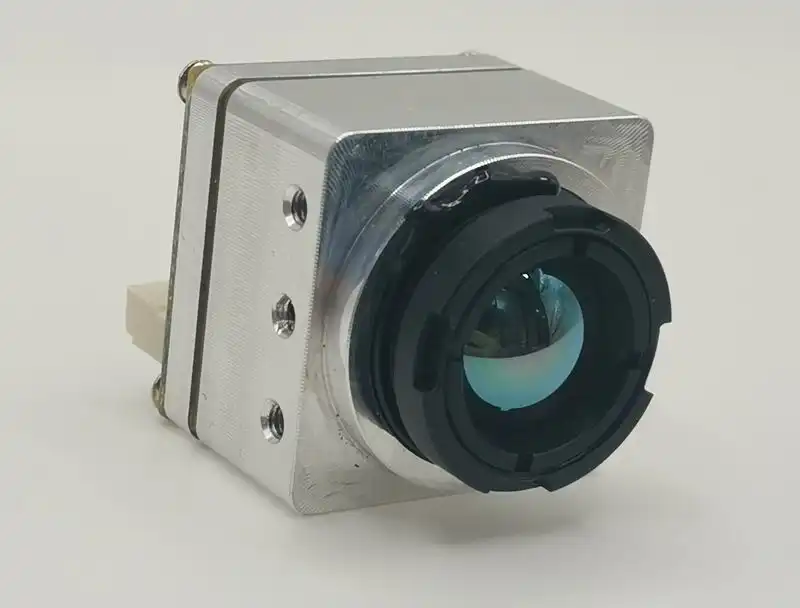

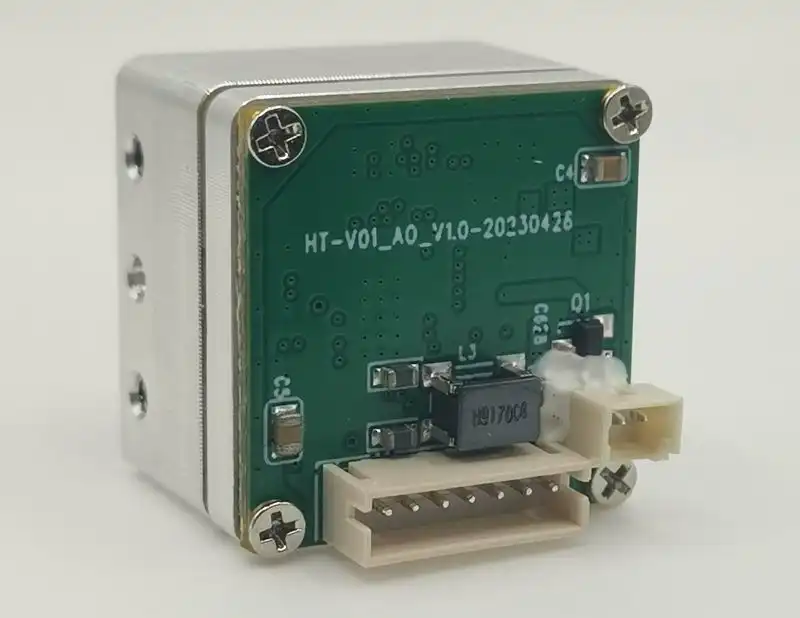

iSUN Thermal imaging camera

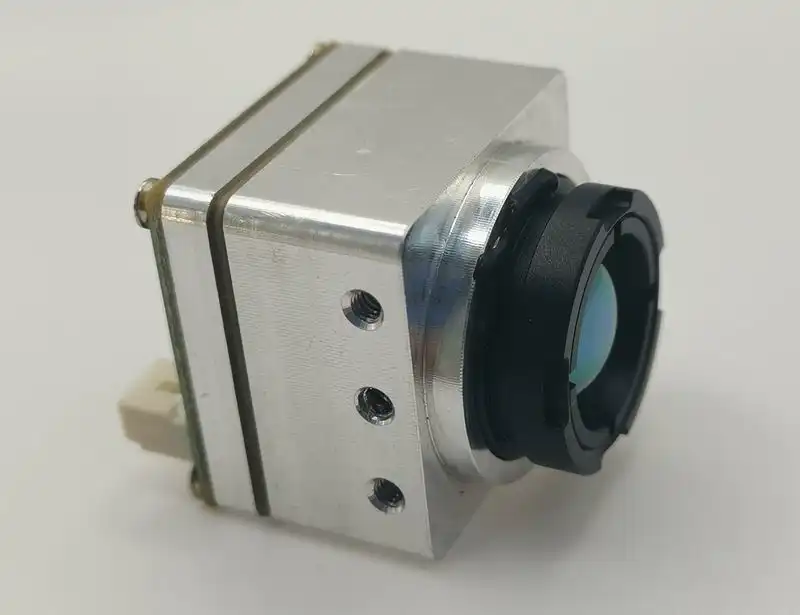

iSUN Thermal imaging camera

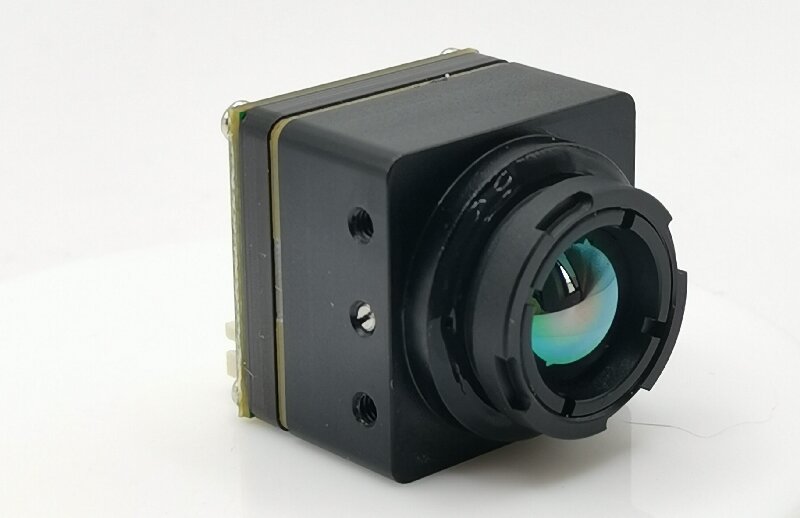

iSUN Thermal imaging camera

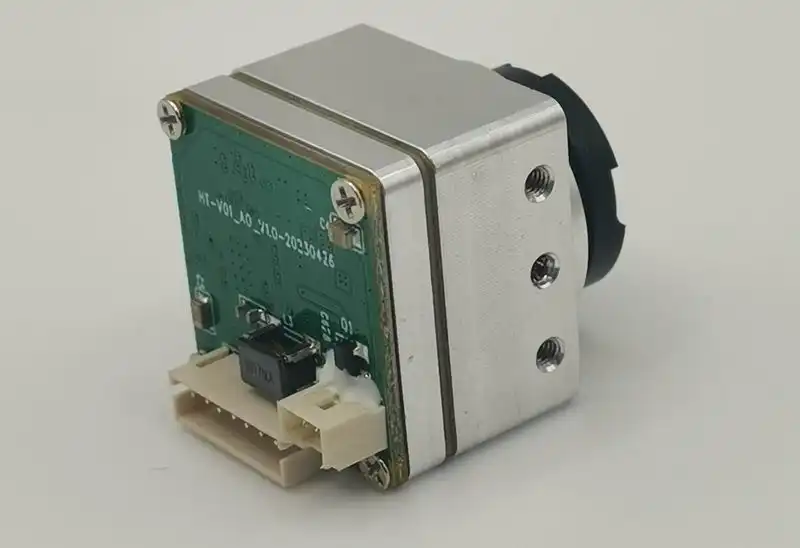

iSUN Thermal imaging camera

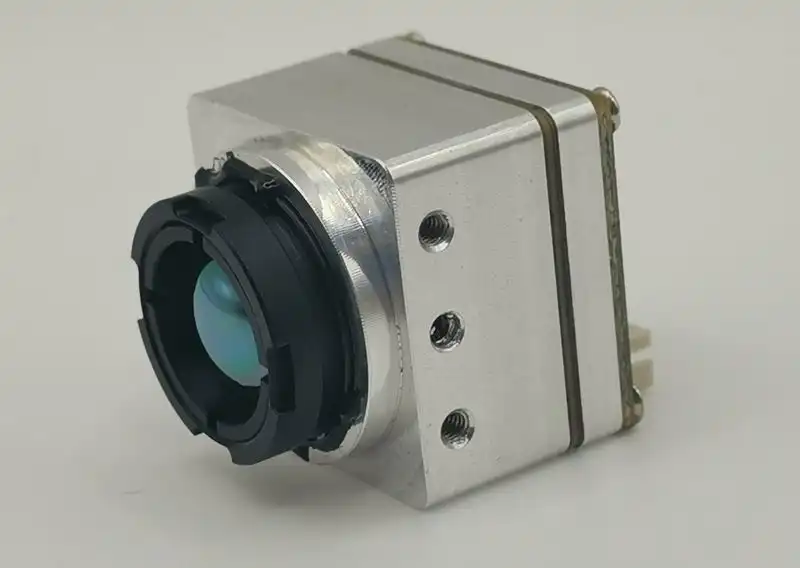

iSun Thermal imaging camera

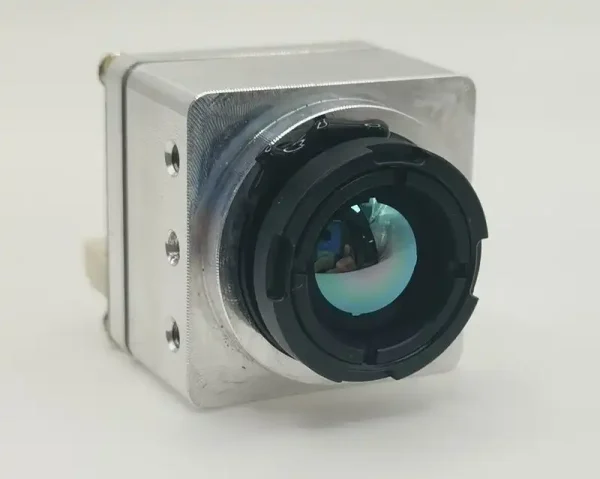

iSun Thermal imaging camera

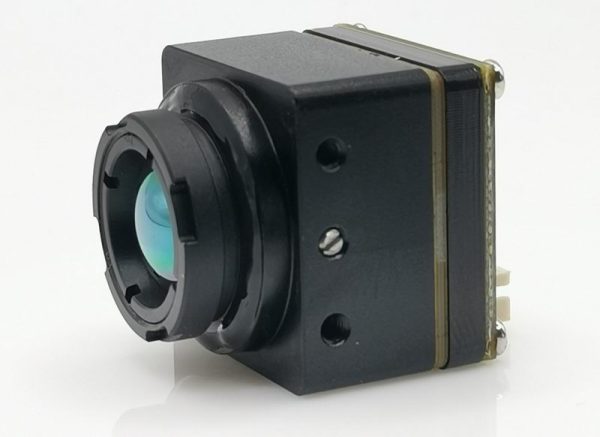

iSun Thermal imaging camera

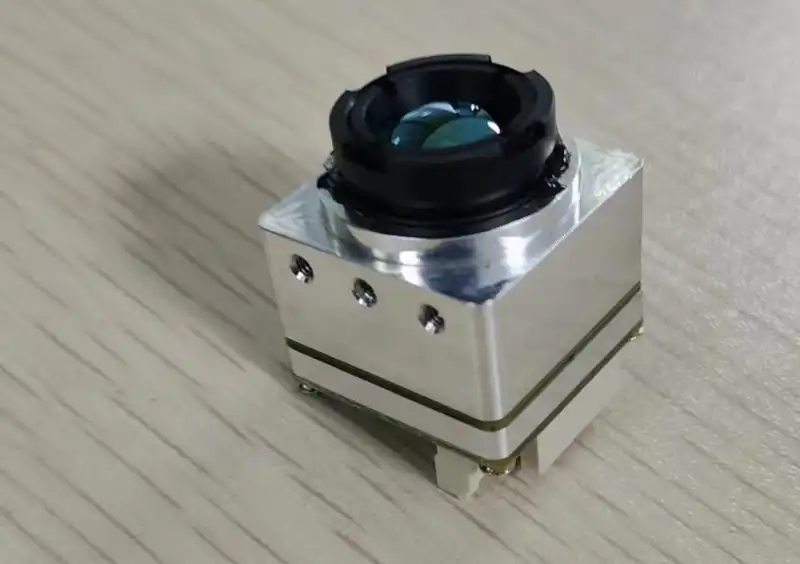

iSun Thermal imaging camera
