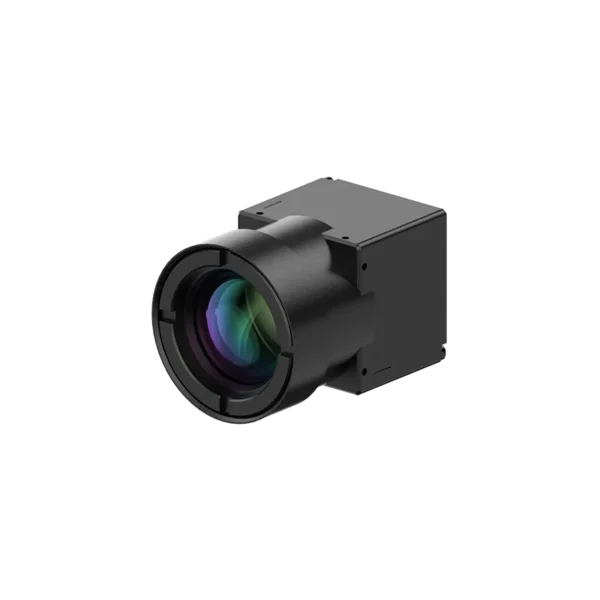

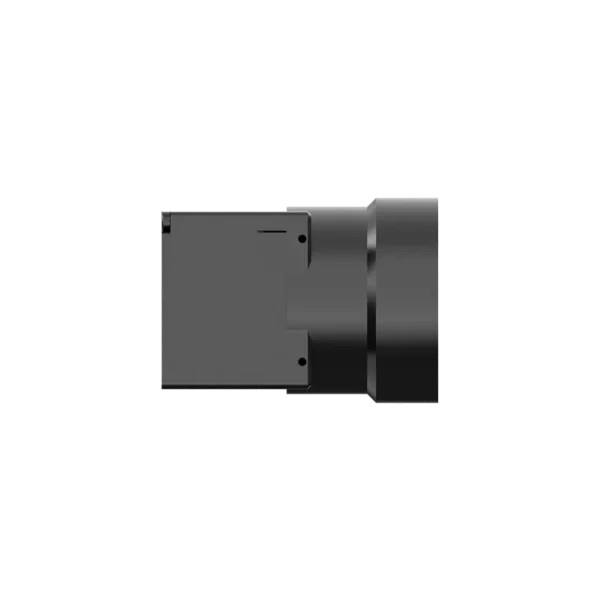

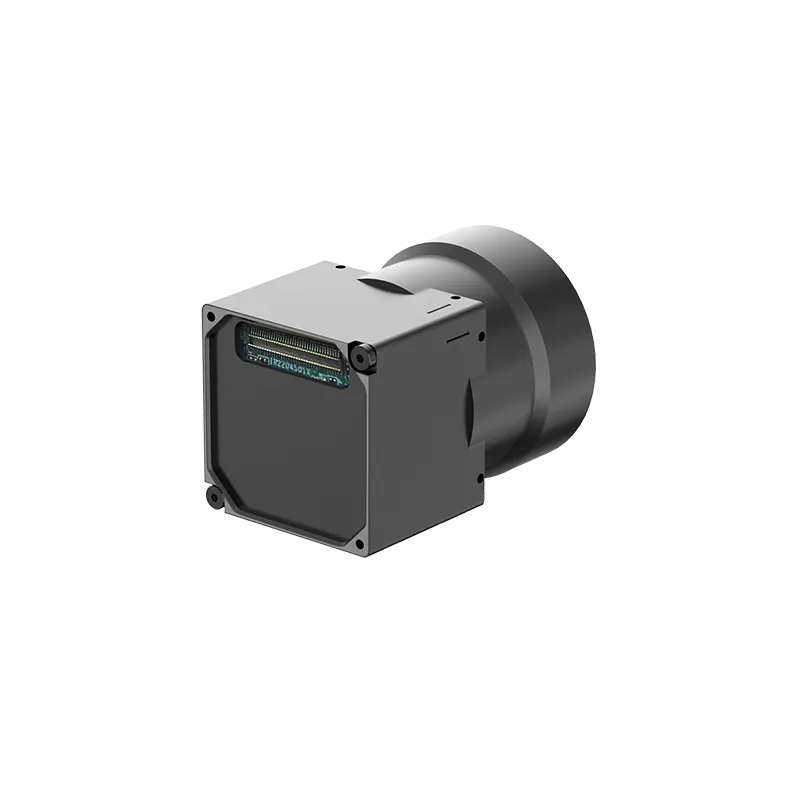

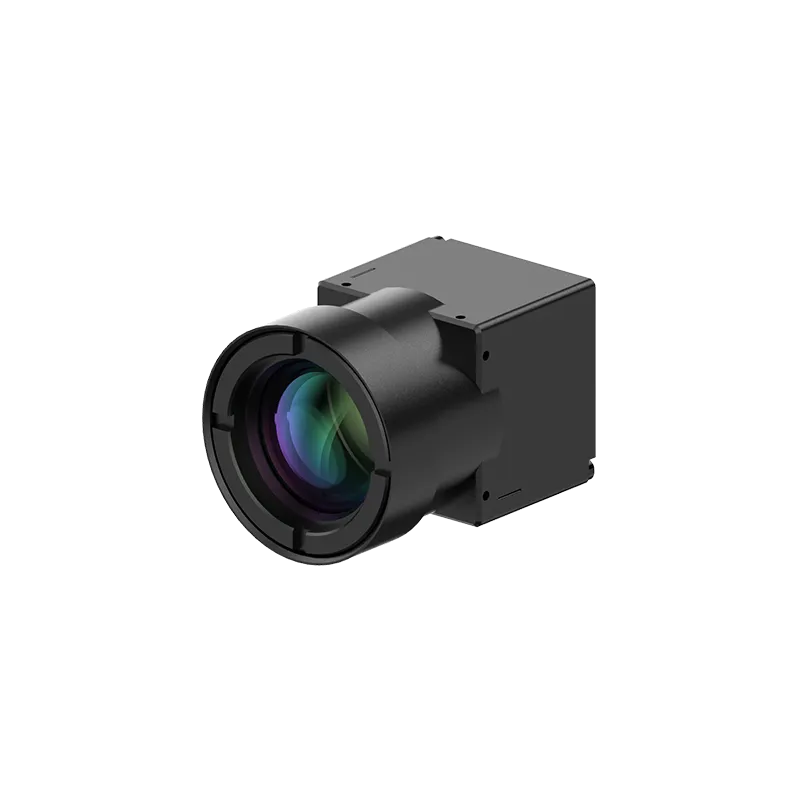

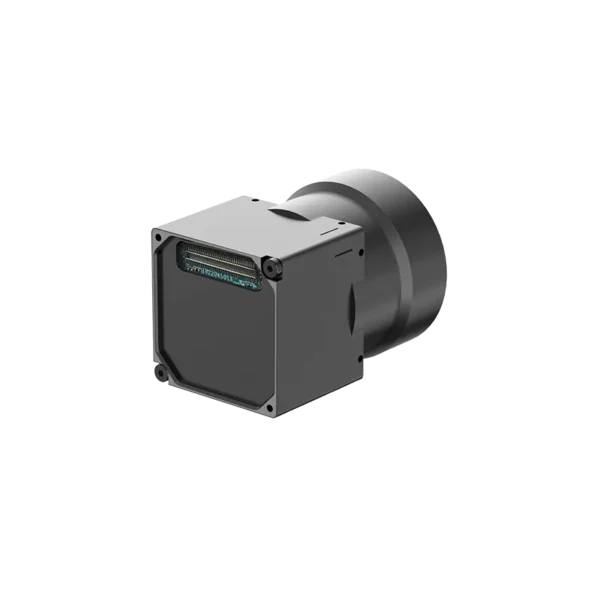

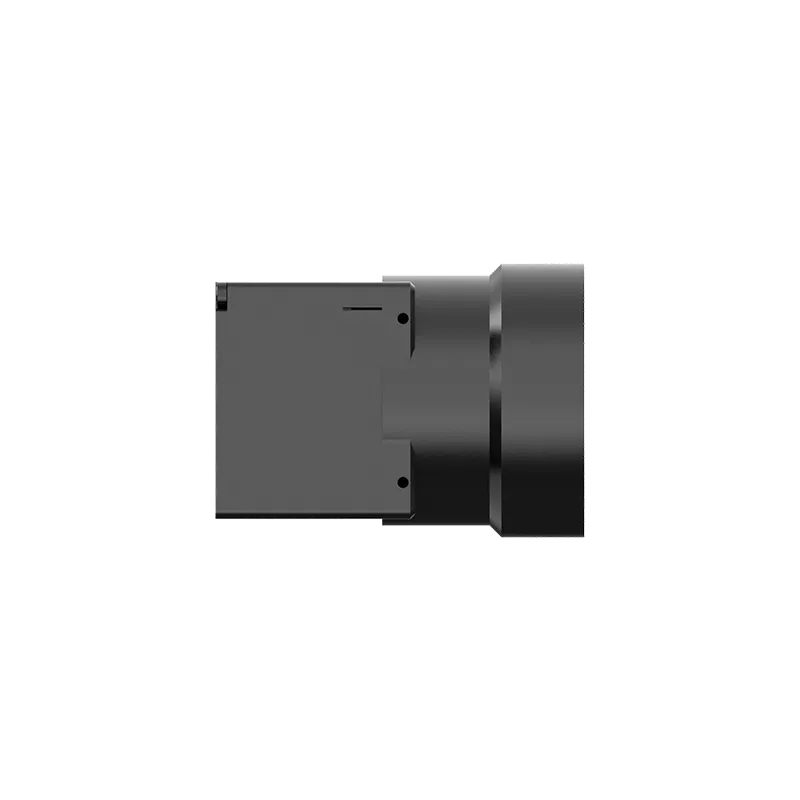

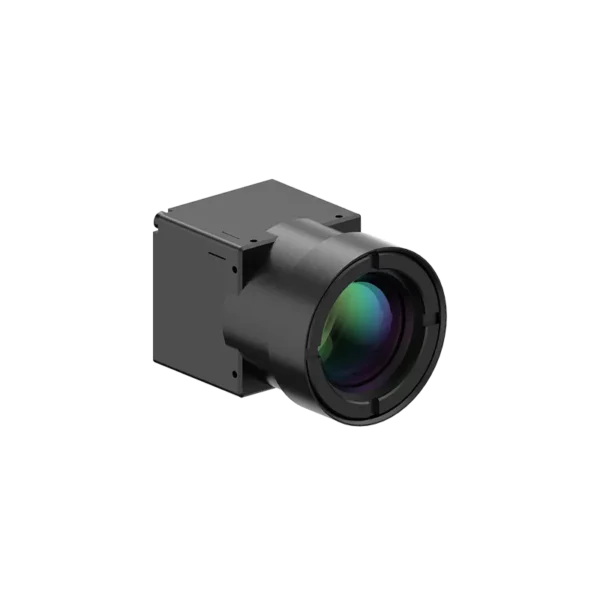

Turing A640 Uncooled Infrared Module
(Temperature Measurement)
Feature Multiple Selections
Provide 10+ a thermalized lenses applicable to different distance apps.
Excellent Temperature Measurement Characteristics
Measurement range of -20°C~+550°C; Provide precise and rapid temperature assessment capability.
Flexible Extension
Flexible USB, MIPI, DVP, LVDS, Camera Link and analog video output interfaces,Provide SDK to support secondary development.
Specification
Performance Indicators
Detector Type
Uncooled VOx infrared detector
Resolution
640×512
Frame Rate
25Hz
Pixel Pitch
12μm
Spectral Band
8~14μm
NETD
≤50mK at 25°C (≤40mK, optional)
Image Adjustment
Brightness/Contrast Adjustment
Manual/Automatic/Linear
Polarity
Black-hot/White-hot
Palette
Support
Reticle
Display/Blank/Move
Digital Zoom
1.0~4.0× continuous zoom (step size: 0.1)
Image Processing
Tecless Scenario-based nonuniformity correction, digital filtering noise reduction, and digital detail enhancement
Mirroring
Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical)
3.5~18V DC supported by user extension components, 4~5.5V DC
Typical Power Consumption at 25°C Without Extension
＜0.7W
Power Protection
Overvoltage, undervoltage, and reverse connection supported by user extension components
Interface
Digital Video
BT.656/BT.1120/14Bit or 8Bit LVCMOS/LVDS
Analog Video
1-channel PAL system
Serial Communication Interface
UART (3.3V)/RS232
Extension Components
MIPI/USB/Camera Link/Analog video/BT.656/LVDS
Temperature Measurement Performance
Measurement Range
For measurement series,-20°C +150°C,+100°C~+550°C
Measurement Accuracy
For measurement series, ±3°C or ±3% of reading (The greater shall prevail) at Ambient temperature of -20°C~+60°C±2°C (optional)
Measurement Tool
Secondary analysis of points, lines, and areas
Physical Characteristics
Dimensions (Without lens and extension components)
26mm×26mm×19.2mm
Weight (3.2mm, without extension components)
20g±3g
Environment Adaptability
Operating Temperature
-20℃～60℃
Storage Temperature
-45℃～+85℃
Humidity
5 ~ 95%, non-condensing
Vibration
6.06g, random vibration, all axes
Impact
80g, 4ms, final peak sawtooth wave, three axes and six directions
Application Scenarios
Industrial Temperature Measurement
Electrical Temperature Measurement
UAV
Security Monitoring
