| Thermal Imaging |
| Detector Type |
Uncooled infrared detector |
| Infrared Resolution |
640×512 |
| Pixel Size |
12μm |
| Spectral Band |
7.5-14μm |
| NETD |
＜25mK (25°C,F1.0) |
| Frame Rate |
25Hz |
| Lens Focal Length |
Standard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2×): 13mm; super macro lens (0.4×): 14.8mm. |
| FOV |
Standard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; wide-angle lens: 45°×36°. |
| IFOV |
Standard lens: 0.68mrad; super telephoto lens: 0.2mrad; telephoto lens: 0.38mrad; wide-angle lens: 1.26mrad; Macro lens: One pixel corresponds to 60μm; super macro lens: One pixel corresponds to 30μm. |
| Focusing Mode |
Electric micro focus, manual focusing, one-button center focus, automatic center focus, single-touch automatic focusing, laser-assisted focus |
| Measurement Range |
-20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°C |
| Measurement Accuracy |
±2°C or ±2% of readings, whichever is greater |
|
| Imaging Display |
| Display |
5.5-inch LCD touch screen, resolution 1920×1080 |
| Visible Light Camera |
13 megapixels |
| Digital Zoom |
1× ~ 10× |
| Palettes |
19 options |
| Image Mode |
Infrared, visible light, PIP, dual-spectrum fusion |
| Temperature Width Stretch |
Support |
|
| Measurement and Analysis |
| Analysis Functions on the Device |
Support up to 25 movable points, lines, frames, circles and polygons, and up to 5 preset modes |
| Laser Rangefinding |
Support |
| Area Measurement |
Support |
| Hygrothermograph |
Support |
| Position |
Support |
| Temperature Difference Analysis |
Support |
| Trend Analysis |
Supports temperature trend recording and analysis. |
| Image Freezing |
Support |
| Analysis Report |
PDF format. Support editing and template importing on the PC client. |
| Supporting Software |
PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) |
|
| Image Storage |
| Storage Medium |
Standard 64GB MicroSD. Support SD, SDHC, and SDXC, up to 2TB. |
| Text Notes |
Support |
| Voice Annotation |
Support |
|
| Video Functions |
| Radiation Infrared Video Recording |
Support compressed full radiation video recording (.irv), up to 15Hz video recording |
| Non-radiation Infrared or Visible Light Video Recording |
Standard MP4 video recording |
|
| System Functions |
| Intelligent Routine Inspection |
Support. General task package import and editing, standard and automatic naming of images |
| Communication Protocol |
Wi-Fi, Bluetooth, USB |
|
| Others |
| Battery |
9000mAh lithium-ion battery, field-replaceable, fast charging |
| Battery Life |
Continuous operating time ≥ 3 hours (depending on the actual environment and service conditions) |
| Charging Mode |
USB Type-C or desktop charger |
| Interface |
USB3.0 Type-C, SD card, SIM card, Mini HDMI |
| Tripod Socket |
UNC 1/4-20 interface for tripod |
| Operating Temperature |
-15°C~+50°C |
| Operating Humidity |
10%~95% (non-condensing) |
| Storage Temperature |
-40°C~+70°C |
| Ingress Protection Rating |
IP54 |
| Shock and Vibration |
Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) |
| Weight and Dimensions |
About 1.3kg (with battery), 278×116×113mm |
| Authentication |
CE/RoHS/CMA, etc. |
| Packing List |
Thermal camera, manual, calibration certificate, quick operation guide, data download card, certificate of qualification, multi-country adapter,, USB data cable, lithium-ion battery×3, portable bag, charging cradle, HDMI cable, hand strap, backpack strap, SD card, charging stand, standard lens. |
|

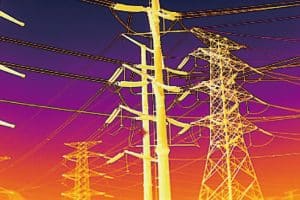

Electric Routine Inspection

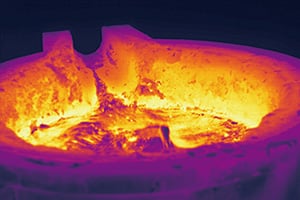

High Temperature Material Monitoring

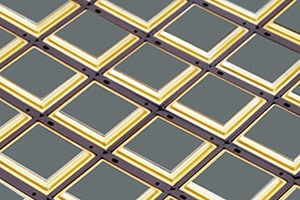

High-End Scientific Research

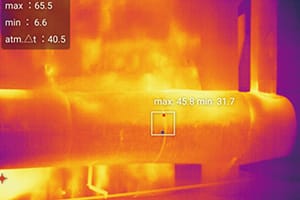

Chemical Routine Inspection
