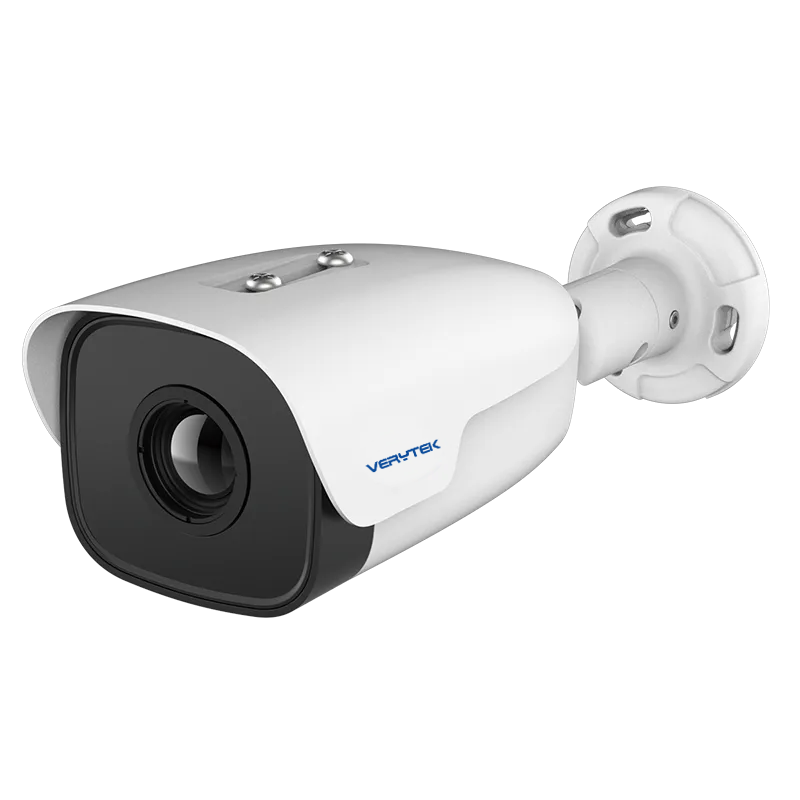

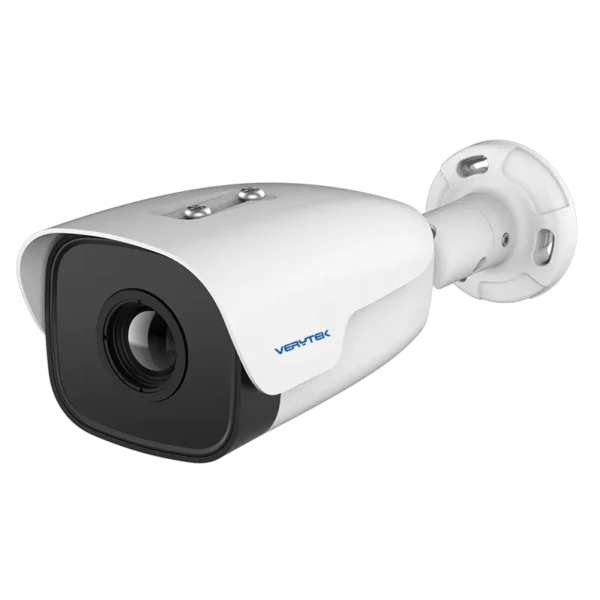

| Thermal Module |
| Detector Type |
VOx, uncooled FPA detectors |
| Spectral Range |
8~14μm |
| NETD |
≤40mK(@25°C,F#1.0,25Hz) |
| Resolution |
384×288 |
| Pixel Pitch |
12μm |
| Focal Length |
9.1mm/13mm/19mm/25mm |
|
| Temperature Measurement |
| Temperature Range |
-20℃~+550℃ |
| Temperature Accuracy |
±2℃ or ±2% |
| Temperature Measurement |
Support 4 temperature measure ment rules(fullframe, point, line, area) |
|
| Smart Function |
| Fire Detection |
Support |
| VCA |
Support Line Crossing & Intrusion detection |
| 2-Way Audio |
Support |
| Linkage Action |
Video/ Snapshot/Email/Alarm output/sound and light alarm |
|
| System Interface |
| Power |
DC 12V±25%/POE(802.3at) |
| Network |
1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio |
1 in/1 out |
| Alarm |
2 in/1 out |
| Storage |
Micro SD memory（maximum 256G） |
| Reset |
Support |
| Serial Port |
1 channel RS485, can support Pelco protocol |
|
| General |
| Work Environment |
-40℃~+70℃；<95%RH |
| Protection |
IP66 |
| Power Consumption |
≤4W |
| Dimenstion(mm) |
319.5×121.5×103.6 |
| Weight |
≤1.5kg |
|

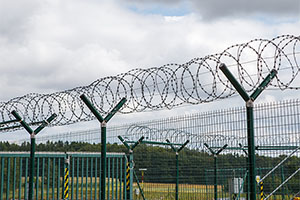

Important Area Perimeter
