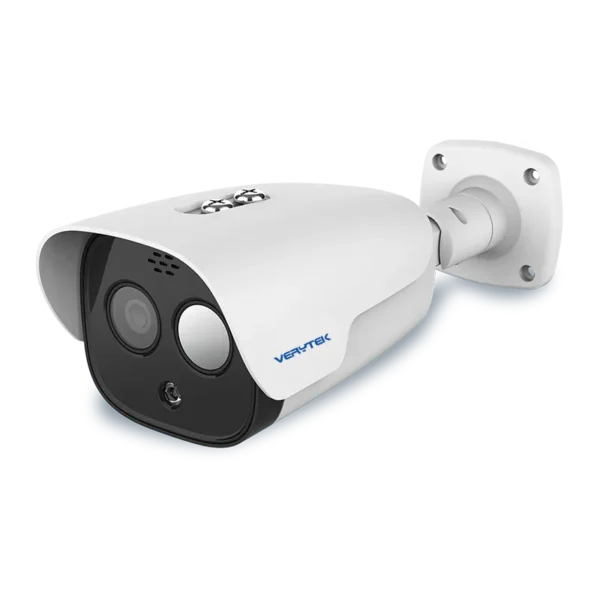

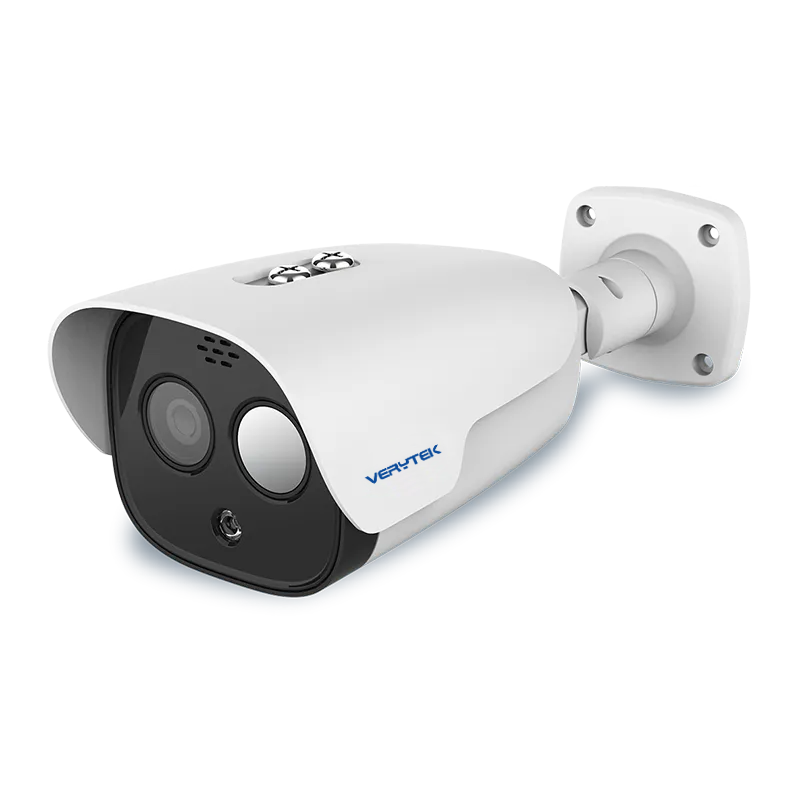

FC225T Dual-Spectrum Bullet Camera

FC225T Dual-Spectrum Bullet Camera

  • The FC225T Dual-Spectrum Bullet Camera is a new type of dual-spectral IP camera that integrates infrared thermal imaging with HD visible light capabilities.
  • Equipped with a state-of-the-art passive infrared thermal imaging sensor and enhanced by industrial-grade temperature measurement and analysis tools, smoke and fire detection algorithms, and dual-spectral behavior analysis algorithms, it also features an array of alarm linkage functions to truly achieve 24/7 security monitoring and fire warning.
  • It can be widely used for indoor and outdoor scenario monitoring in various intelligent security and fire protection fields such as perimeter protection, charging piles, warehouse equipment rooms, gas stations, and electrical power monitoring.
Categories: , Tags: , , ,

FC225T Dual-Spectrum Bullet Camera

Feature

logo

12μm Uncooled Infrared Detector

Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.

logo

Dual-Spectrum Imaging

All-weather, 24/7 security monitoring with dual thermal&visible light imaging.

logo

Accurate Temperature Measurement

Measurement range from -20°C to 550°C, accuracy ±2°C or 2%.
logo

AI Target Recognition

Smart video content analysis, human/vehicle recognition on thermal channel for crossline/intrusion detection.

logo

Intelligent Alarm

Supports alarm linkage for multiple events, as well as audible and visual alarms.

logo

Platform Integration

Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.

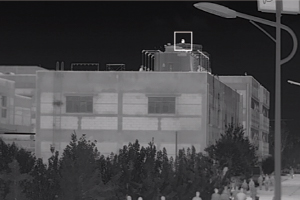

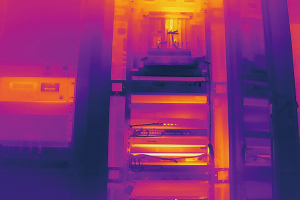

FC2 Series 1 FC1 Series 2 FC1 Series 3 FC2 Series 4

Specification

Thermal Module
Detector Type VOx, uncooled FPA detectors
Spectral Range 8~14μm
NETD ≤40mK(@25°C,F#1.0,25Hz)
Resolution 256×192
Pixel Pitch 12μm
Focal Length 3.2mm/7mm/10mm
Optical Module
Sensor 5MP 1/2.8″ Progressive Scan CMOS
Resolution 2560×1920
Focal Length 4mm/8mm/12mm
IR distance 30m
Image Function
Bi-Spectrum Image Fusion Support
Temperature Measurement
Temperature Range -20℃~+550℃
Temperature Accuracy ±2℃ or ±2%
Temperature Measurement Support 4 temperature measure ment rules(fullframe, point, line, area)
Smart Function
Fire Detection Support
VCA Support Line Crossing&Intrusion detection with AI human/Vehicle recognition
2-Way Audio Support
Linkage Action Video/ Snapshot/Email/Alarm output/sound and light alarm
System Interface
Power DC 12V±25%/POE(802.3af)
Network 1 RJ45 10M / 100M self-adaptive Ethernet port
Audio 1 in/1 out
Alarm 2 in/1 out
Storage Micro SD memory（maximum 256G）
Reset Support
Serial Port 1 channel RS485, can support Pelco protocol
General
Work Environment -40℃~+70℃；<95%RH
Protection IP66
Power Consumption ≤6W
Dimenstion(mm) 265×99×87
Weight ≤0.95kg

Application Scenarios

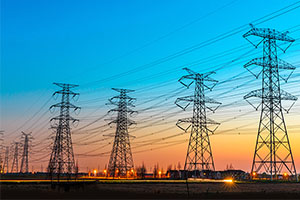

Electric Temperature MeasurementElectric Temperature Measurement


Fire PreventionFire Prevention

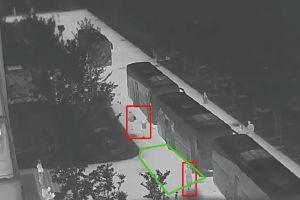

Perimeter Protection 1Perimeter Protection

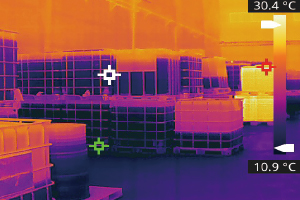

WarehouseWarehouse
