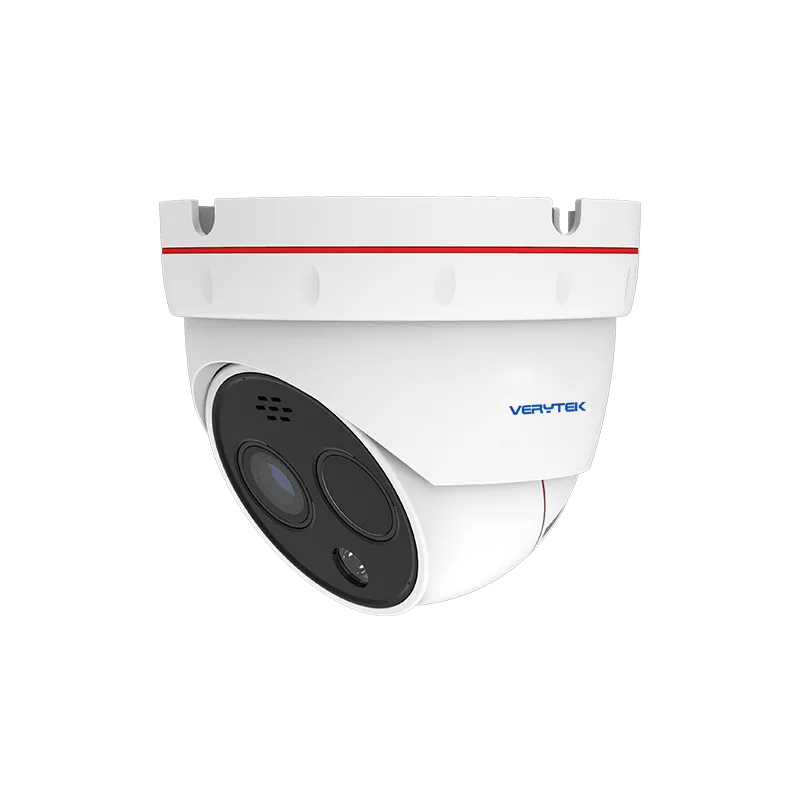

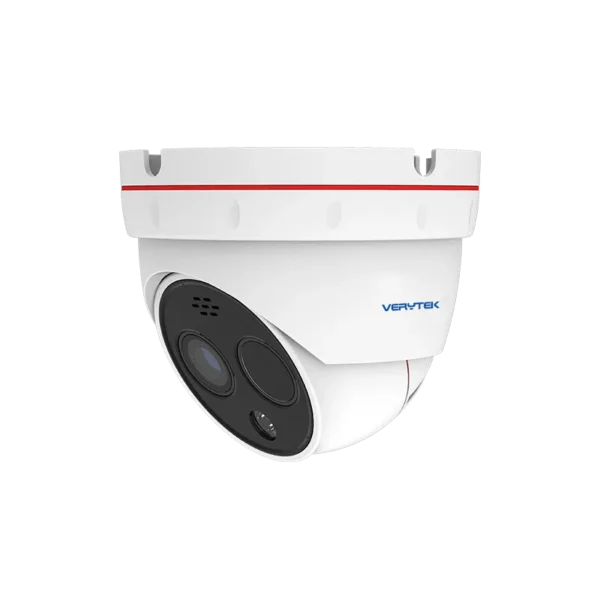

FC125T Dual-Spectrum Turret Camera

FC125T Dual-Spectrum Turret Camera

  • The FC125T Dual-Spectrum Turret Camera is a new type of dual-spectral IP camera that integrates infrared thermal imaging with HD visible light capabilities.
  • Equipped with a state-of-the-art passive infrared thermal imaging detector and enhanced by industrial-grade temperature measurement and analysis tools, smoke and fire detection algorithms, and dual-spectral behavior analysis algorithms, it also features an array of alarm linkage functions to truly achieve 24/7 security monitoring and fire warning.
  • It can be widely used in scenarios such as gas stations, charging piles, substations, buildings and warehouses, and small-scale establishments.
Categories: ,

FC125T Dual-Spectrum Turret Camera

Feature

logo

12μm Uncooled Infrared Detector

Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
logo

Dual-Spectrum Imaging

All-weather, 24/7 security monitoring with dual thermal&visible light imaging.

logo

Accurate Temperature Measurement

Measurement range from -20°C to 550°C, accuracy ±2°C or 2%.
logo

AI Target Recognition

Smart video content analysis, human/vehicle recognition on thermal channel for crossline/intrusion detection.

logo

Intelligent Alarm

Supports alarm linkage for multiple events, as well as audible and visual alarms.

logo

Platform Integration

Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.

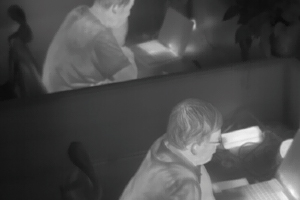

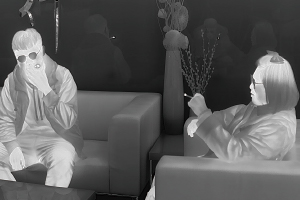

FC1 Series 1 FC1 Series 2 FC1 Series 3 FC1 Series 4

Specification

Thermal Module
Detector Type VOx, uncooled FPA detectors
Spectral Range 8~14μm
NETD ≤40mK(@25°C,F#1.0,25Hz)
Resolution 256×192
Pixel Pitch 12μm
Focal Length 3.2mm/7mm
Optical Module
Sensor 5MP 1/2.7″ Progressive Scan CMOS
Resolution 2560×1920
Focal Length 4mm/8mm
IR distance 30m
Image Function
Bi-Spectrum Image Fusion Support
Temperature Measurement
Temperature Range -20℃~+550℃
Temperature Accuracy ±2℃ or ±2%
Temperature Measurement Support 4 temperature measure ment rules(fullframe, point, line, area)
Smart Function
Fire Detection Support
VCA Support Line Crossing&Intrusion detection with AI human/Vehicle recognition
2-Way Audio Support
Linkage Action Video/ Snapshot/Email/Alarm output/sound and light alarm
System Interface
Power DC 12V±25%/POE(802.3af)
Network 1 RJ45 10M / 100M self-adaptive Ethernet port
Audio 1 in/1 out
Alarm 2 in/1 out
Storage Micro SD memory（maximum 256G）
Reset Support
Serial Port 1 channel RS485, can support Pelco protocol
General
Work Environment -40℃~+70℃；<95%RH
Protection IP66
Power Consumption ≤5W
Dimenstion(mm) Φ129×96
Weight ≤0.8kg

Application Scenarios



Charging PileCharging Pile


Electric Temperature MeasurementElectric Temperature Measurement


Perimeter Protection 1Perimeter Protection

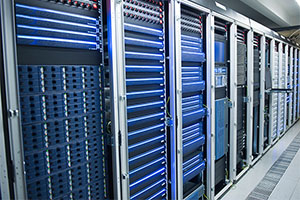

Warehouse 1Warehouse
