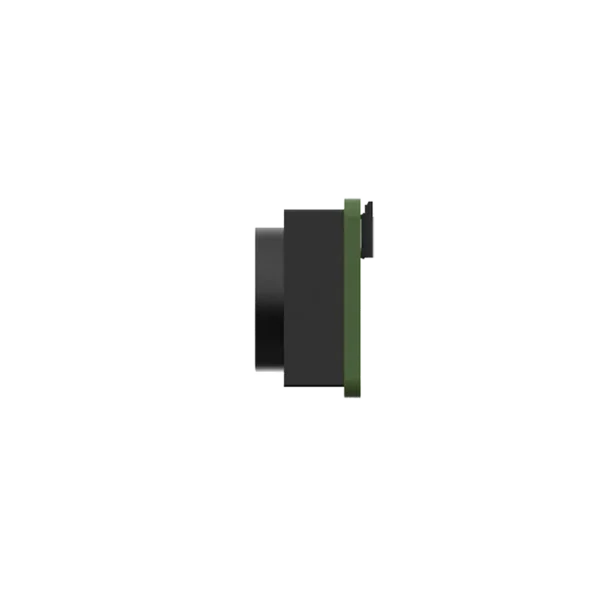

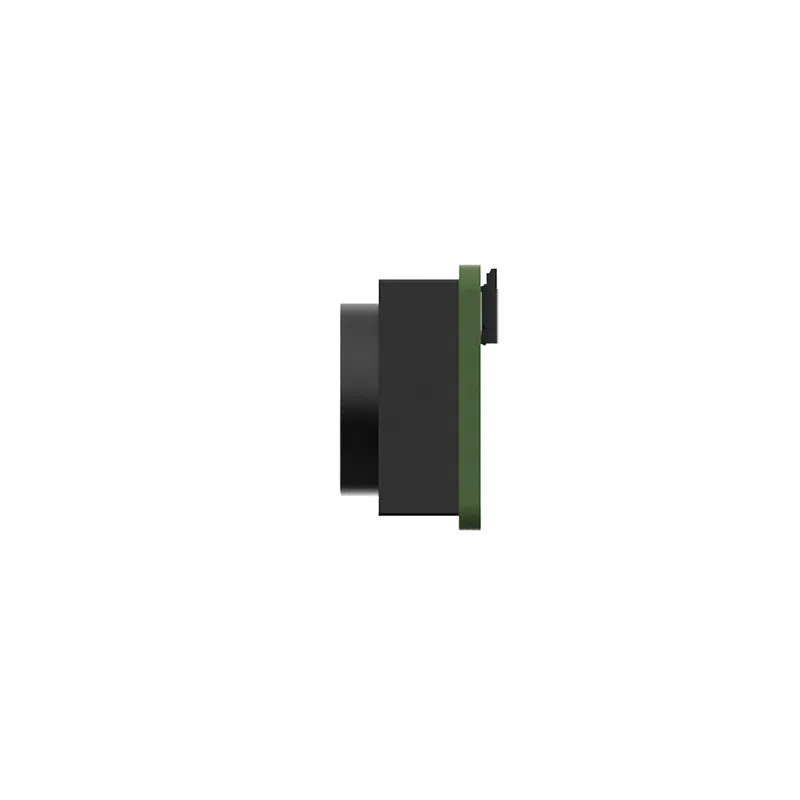

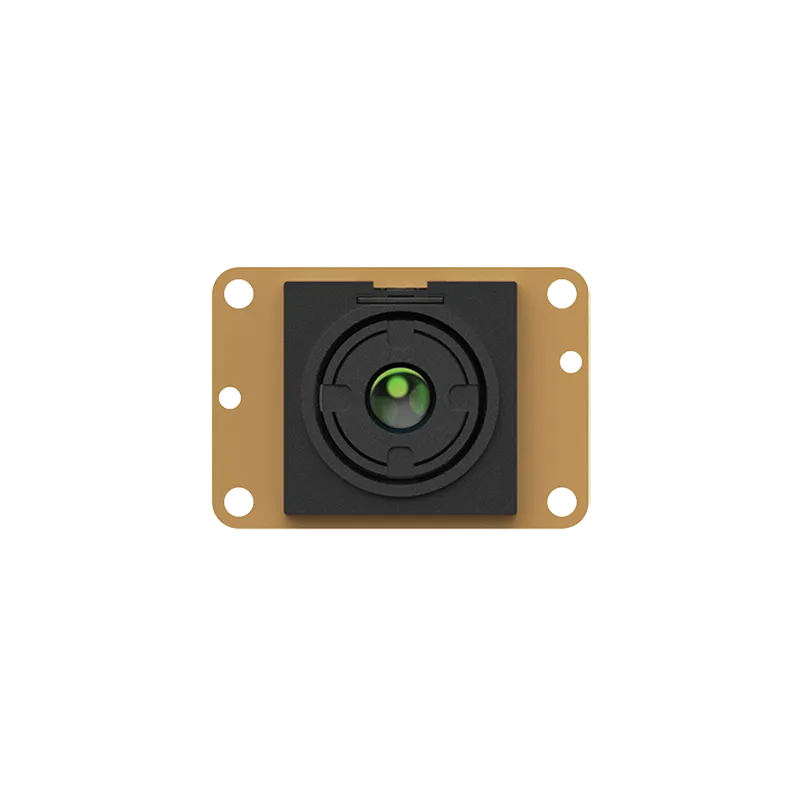

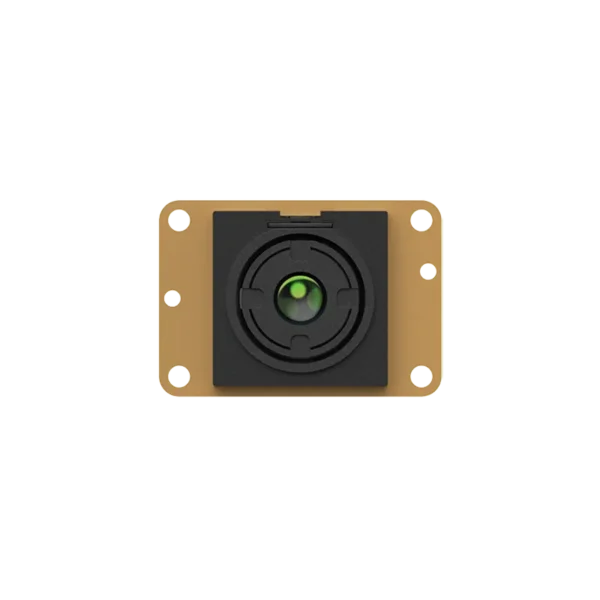

Turing C256 Uncooled Infrared Module
Turing C256 Uncooled Infrared Module - Image 2
Turing C256 Uncooled Infrared Module - Image 3
Turing C256 Uncooled Infrared Module - Image 4

Turing C256 Uncooled Infrared Module

  • The Turing C256 uncooled infrared module, adopting an advanced 256×192 wafer detector, features compact dimensions, lightweight design, and low power consumption, meeting the SWaP³ design requirements.

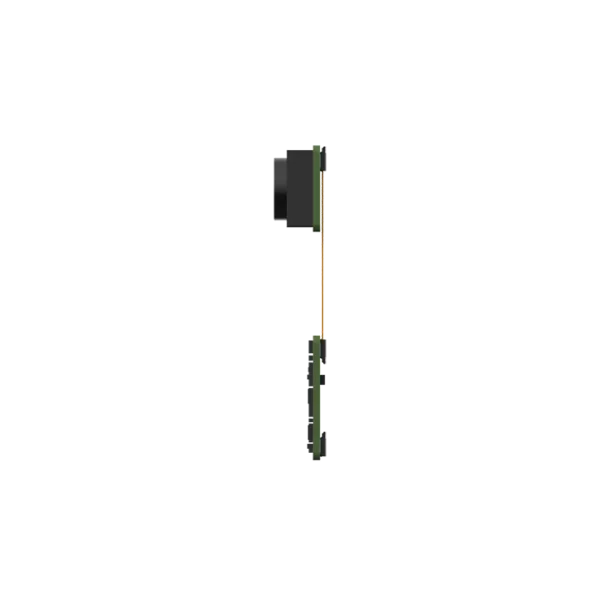

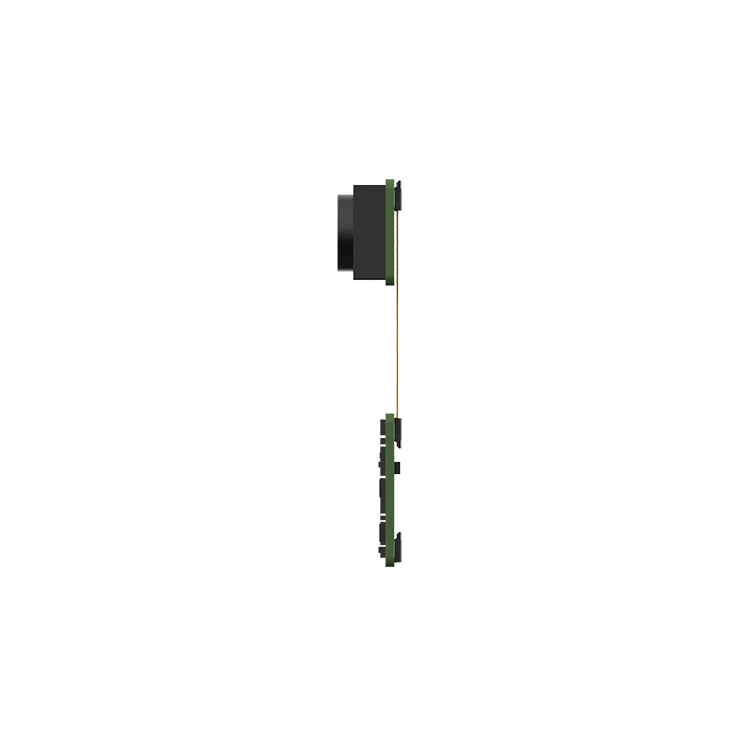

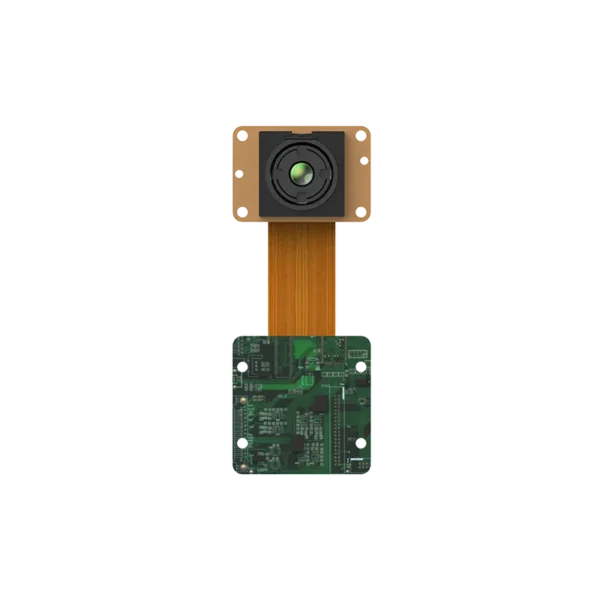

  • The split assembly makes it more flexible to use.
  • It comes with multiple auxiliary development tools that support multiple ARM architecture SOC platforms, ensuring ease of use and integration.
  • It also supports the simultaneous output of images and temperature values with a variety of lightweight infrared lenses and extension components. As the best choice for low-cost solutions, this product series can be used in many scenarios such as industry, power, security protection, and machine vision.
Categories: , Tags: , , , ,

Feature

Low-Cost Solution

  1. It adopts the 256×192 WLP detector and weighs only 3.5g with a 3.2mm lens.
  2. It supports multiple ARM architecture SOC platforms, capable of directly processing sensor data.

Easy Development

  1. It is compatible with various mainstream embedded SOC platforms and can optimize the image effect of ISP.
  2. It provides multiple SDK development interfaces for rapid secondary development.

Multiple Selections

  1. The FOV varies from 20° to 90° and the extension supports multiple protocols such as DVP, MIPI, and analog video.
  2. The split design is convenient for integration and development, supporting applications in multiple areas such as consumer, intelligence, security, and industrial sectors.

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 256×192
Detector Frame Rate 25Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK at 25°C (≤40mK, optional)
Image Adjustment
Brightness/Contrast Adjustment Manual/Auto
Polarity Black-hot/White-hot
Palette Multiple types support
Reticle Display/Blank/Move
Image Processing Digital filtering noise reduction, and digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.8V~5.2V
Typical Power Consumption at 25°C Without Extension ≤0.35W
Interface
Digital Video CDS2/CDS3/LVCMOS
Serial Communication Interface UART
Extension Components Analog Video
Interface/Supporting
Direct Drive Solution Compatible with SOC platforms such as HIS13516, HIS13519, NT98528, AR9201, AR9341, and CV28M33
Temperature Measurement Performance
Measurement Range Temperature measurement series: -20℃～+550℃
Measurement Accuracy For measurement series, ±3°C or ±3% of reading (The greater shall prevail) @Ambient temperature of -20°C~+60°C
Physical Characteristics
Dimensions (Without lens and extension components) 21×14.6mm
Weight (3.2mm, without extension components) ≤3.5g
Lens Model 2mm, 3.2mm, 7mm, 10mm, 13mm
Environment Adaptability
Operating Temperature -20℃～60℃
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Product Certification RoHS

Application Scenarios



Measurement Tool
Measurement Tool


Security Monitoring
Security Monitoring


Smart Home
Smart Home


UAV Airborne
UAV Airborne
