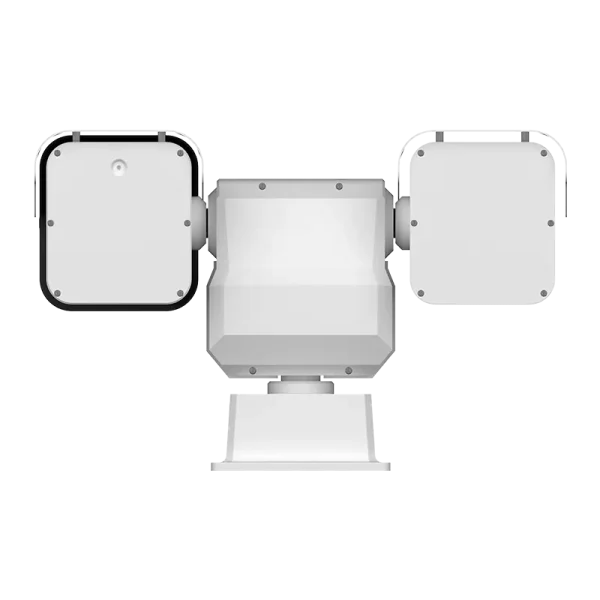

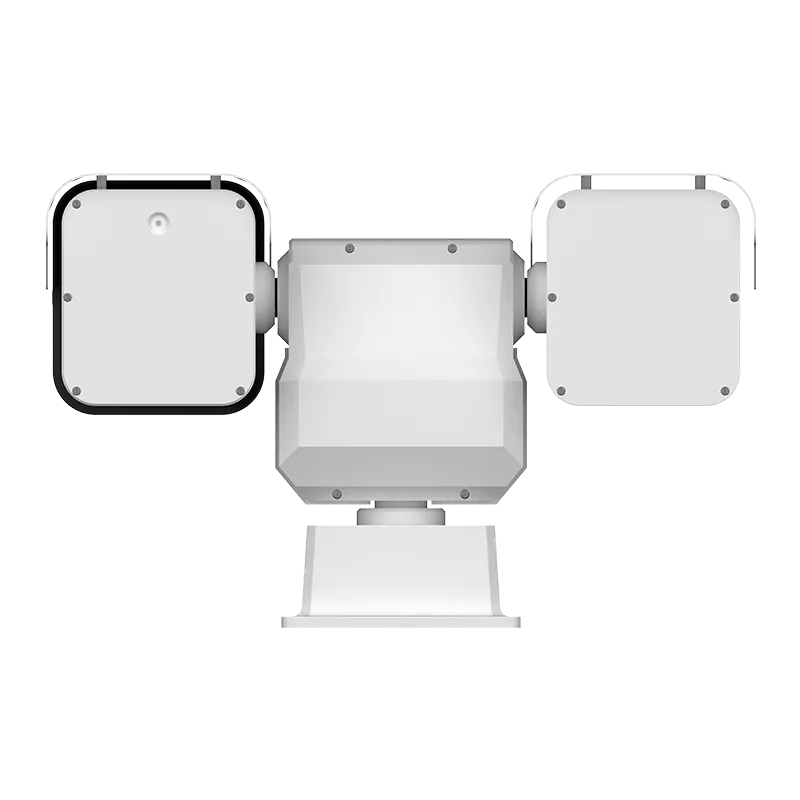

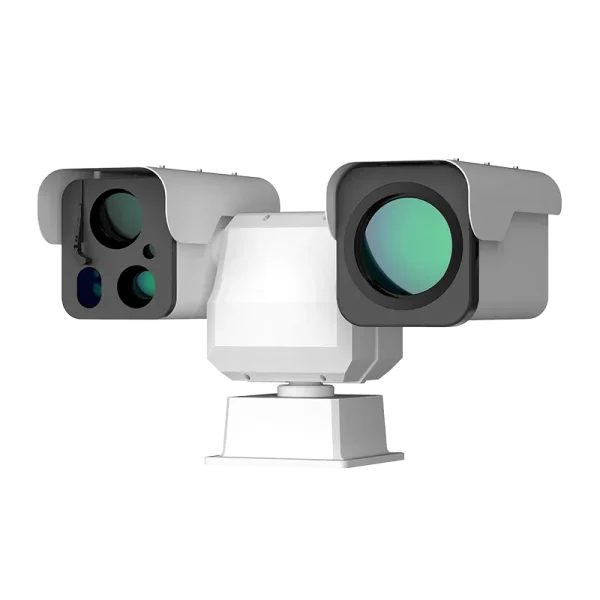

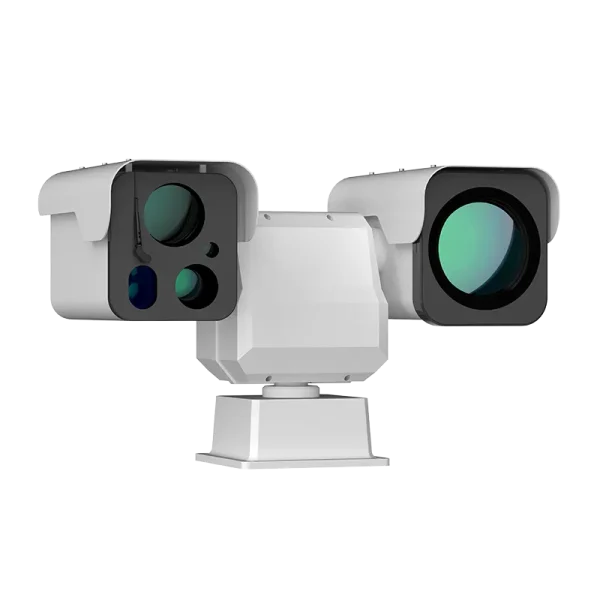

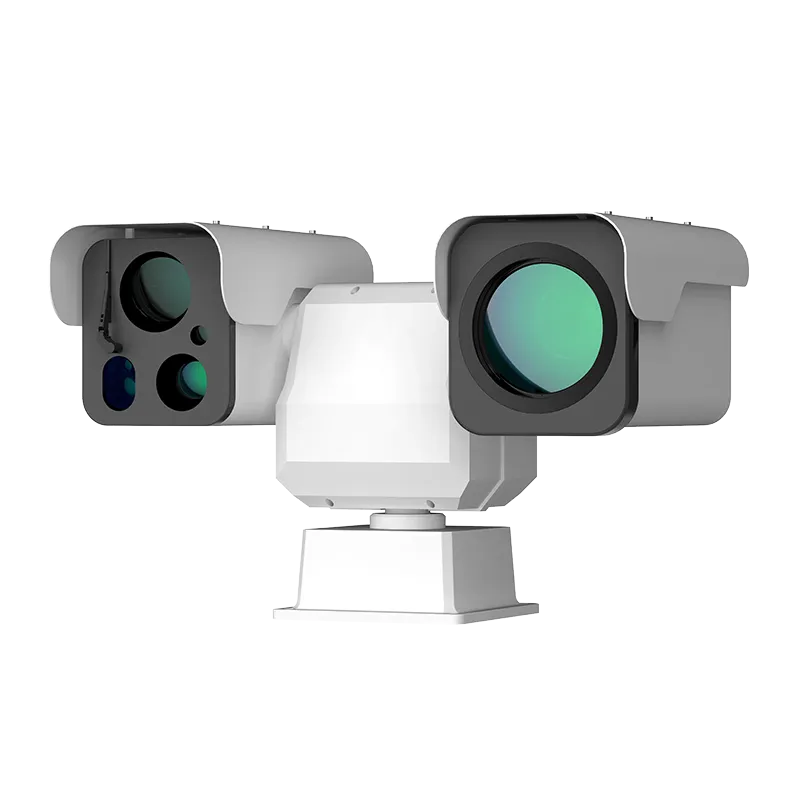

PC564 Multi-Spectrum PTZ Camera
PC564 Multi-Spectrum PTZ Camera - Image 2
PC564 Multi-Spectrum PTZ Camera - Image 3
PC564 Multi-Spectrum PTZ Camera - Image 4

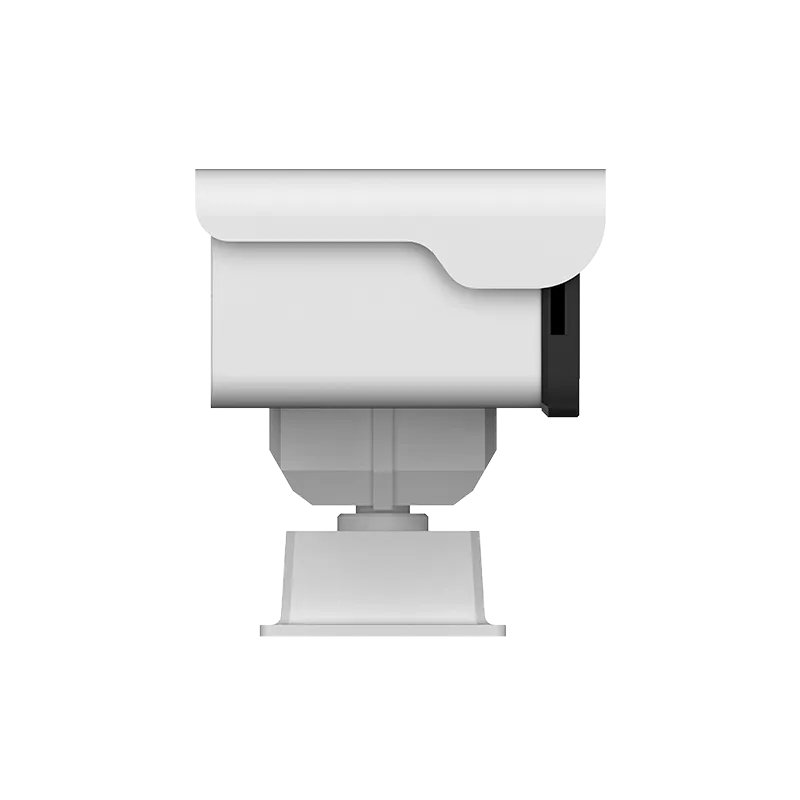

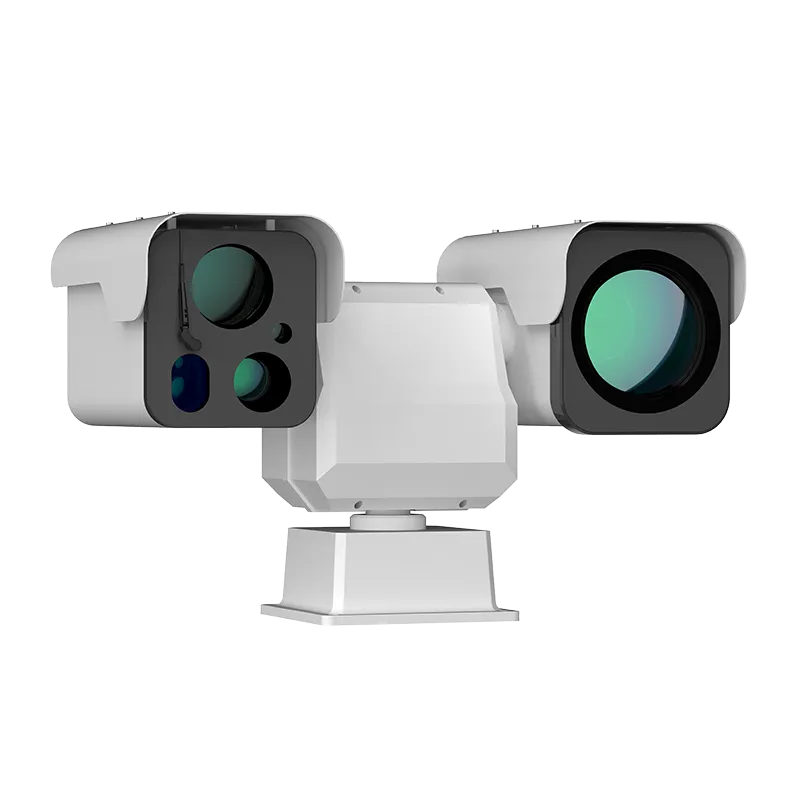

PC564 Multi-Spectrum PTZ Camera

  • PC5 multi-spectral PTZ network camera is designed for forest fire prevention and perimeter surveillance. PC5 is equipping a dual thermal/visible light imaging system, with maximum 150mm thermal lens. Laser rangefinder and laser illumination are optional.
  • PC5 is powered by NPU for AI-ISP to increase the performance in low light condition, as well as provides the capabilities to recognize the human, vehicle, vessel, smoke, fire point, working with various patrol mode to enable uninterrupted safety monitoring day and night.
  • Support TPM technology and meeting the FIPS 140-3 Level 3 standard.
Categories: , Tags: , , ,

PC564 Multi-Spectrum PTZ Camera

Feature

icon 01

Industry-Leading Infrared Detector

Adopts the latest 12μm uncooled infrared detector and advanced infrared image algorithms to ensure clear imaging at greater distances.

icon 02

Multi-Spectrum

Featuring both long range thermal and visible light imaging. addtionally with max. 1.5km laser illumination and 6km laser rangefinder.

icon 03

Long-Range Detection

Supports 30~150mm continuous zoom lens for thermal imaging cameras and 10~550mm continuous zoom lens for visible light cameras.

Intelligent Fire Detection Algorithm

Intelligent Smoke&Fire Detection Algorithm

Support intelligent smoke and fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.

Intelligent Video Analysis

AI-Powered Video Content Analysis

Using Al human/vehicle/vessel recognition for tripwire/intrusion
detection.

icon 06

Platform Integration

Support ONVlF, provide SDK&demo for development; provide NVR and VMS software for application.

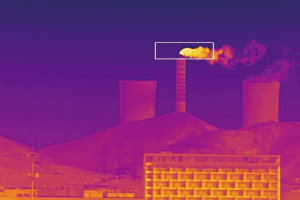

PC8 Series 1 PC8 Series 2 PC8 Series 3 PC8 Series 4

Specification

Thermal Module
Detector Type VOx, uncooled FPA detector
Spectral Range 8~14μm
NETD ≤40mK(@25°C,F#1.0,25Hz)
Resolution 640×512
Pixel Pitch 12μm
Focal Length 75/100/150/30~150mm
Optical Module
Sensor 1/1.8 inch 4MP CMOS/1/1.25 inch 4MP CMOS
Resolution 2688×1520
Focal Length 6~336mm/10~550mm
IR Illuminator (Optional)
Illuminating Distance 1500m
Laser Wavelength 808nm
LRF (Optional)
Laser Wavelength 1535nm
Measurement Distance 3km
PTZ
Pan 360° continuous，0.1°~100°/s
Tilt -90°~+90°，0.1°~60°/s
Scan mode Preset/Tour/Area Scan/Linear Scan/Pattern Scan/Comprehensive Patrol
Smart Function
Smoke & Fire Detection (Visible) Support
Fire Detection Support
Radar Linkage Support
Zoom Linkage Support
Smart Record Alarm trigger recording, disconnection trigger recording (continue transmission after connection)
Smart Alarm Support alarm trigger of network disconnection, IP address conflict, full memory, memory error, illegal access and abnormal detection
Smart AI Detection Support smart video analysis such as tripwire & area intrusion detection, support AI human/vehicle/vessel classification
Target tracking Support
Alarm Linkage Recording/Snapshot/Sending Email/PTZ linkage/Alarm output
System Interface
Power DC 48V±15%
Network RJ45 self-adaptive 10M/100M Ethernet port
Audio 1×input, 1×output
Alarm 1×input, 1×output
Storage Support Micro SD card (Max.512G)
Serial Port 1 channel RS485, can support Pelco protocol
General
Work Environment -40℃~+70℃；<90%RH
Protection IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Certification CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3
Power Consumption ≤300W
Dimenstion(mm) 623.6×398.5×350
Weight 30KG

Application Scenarios



Urban High Altitude ObservationUrban High-Altitude Observation


Perimeter surveillancePerimeter Surveillance


Forest Fire PreventionForest Fire Prevention


Critical Infrastructure ProtectionCritical Infrastructure Protection
