How to Use a Thermal Imaging Camera for Search and Rescue in 2025

In search and rescue missions, you use a Thermal Imaging Camera Thermal Camera to quickly locate people. Before starting, check your Thermal Imaging Camera Thermal Camera and set it up according to your environment. Use the firefighting Thermal Imaging Camera Thermal Camera to scan large areas and detect heat signatures, even through thick smoke or in complete darkness. Adjust the focus to capture clear thermal images, and always verify what you see for accuracy. Advanced devices like the U01-10 Thermal Imaging Camera Thermal Camera deliver excellent results in a variety of emergency and firefighting scenarios. Always stay alert and apply your firefighting expertise to ensure your team’s safety.

Key Takeaways

Thermal imaging cameras let rescuers see heat. They can find people fast, even in dark, smoky, or messy places. – Always get your team and gear ready before you start. Check your camera settings. Practice a lot to get faster and safer at searching. – Pick the best color palette and focus settings for your camera. This helps you read thermal images right and not make mistakes. – Use a strong, high-resolution camera with a wide view. Make sure it has a long battery life. This helps you work well in many places. – Talk clearly with your team. Always check heat spots twice. This keeps everyone safe and helps you rescue more people.

Thermal Imaging Camera Basics

How Thermal Cameras Work

A thermal imaging camera lets you see heat that your eyes miss. These cameras find infrared energy, which is heat from all things. When you aim the camera, it collects this heat and makes a picture. The picture uses colors or shades to show hot and cold spots. Firefighters use this to find people, animals, or fires behind walls.

Special sensors in the camera notice small heat changes. The camera shows these changes as pictures on a screen. You can change the focus to make the picture sharp. Some cameras, like the U01-10, have better sensors and lenses. They give clear pictures even from far away. This helps you find people fast, even in smoke or darkness.

Tip: Always check the focus and settings before searching. A clear picture helps you spot heat faster.

Key Performance Metric	Description
Resolution	Number of pixels and spatial resolution affecting image clarity and field of view.
Temperature Range	The range of temperatures the camera can detect, important for capturing both high and low heat.
Focus Mechanisms	Includes fixed, manual, autofocus, laser-assisted, and multifocal options for image sharpness.
Lens Types	Various lenses such as standard, wide angle, telephoto, and macro to suit different scenarios.
Memory and Sharing	Storage options like SD cards, USB, WiFi, and Bluetooth for saving and sharing thermal images.
Color Palettes	Different palettes (monochromatic, high contrast) to highlight temperature differences and anomalies.
Color Alarms and Spot Markers	Features to highlight abnormal temperatures and mark specific points on the thermal image.
Emissivity Considerations	Adjustments for surfaces with low emissivity (e.g., shiny metals) that affect infrared accuracy.

Benefits for Search and Rescue

A thermal imaging camera helps a lot in search and rescue. You can find lost or trapped people, even if you cannot see them. Firefighters use these cameras to look through smoke, darkness, or rubble. This makes your job safer and quicker.

These cameras help you see heat from people or fires. You can use them to check rooms, search big outdoor spaces, or scan broken buildings. They help you find people faster. Studies show these cameras can cut search time by up to 75%. This means you can save more lives.

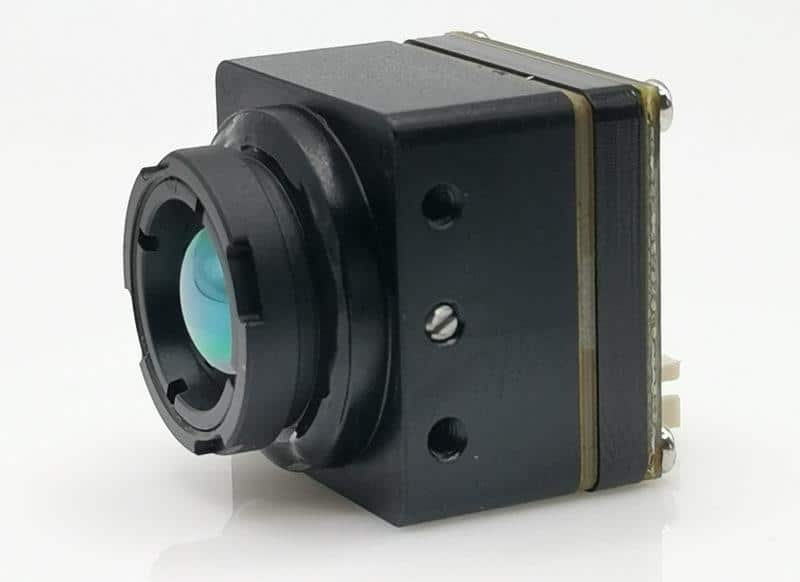

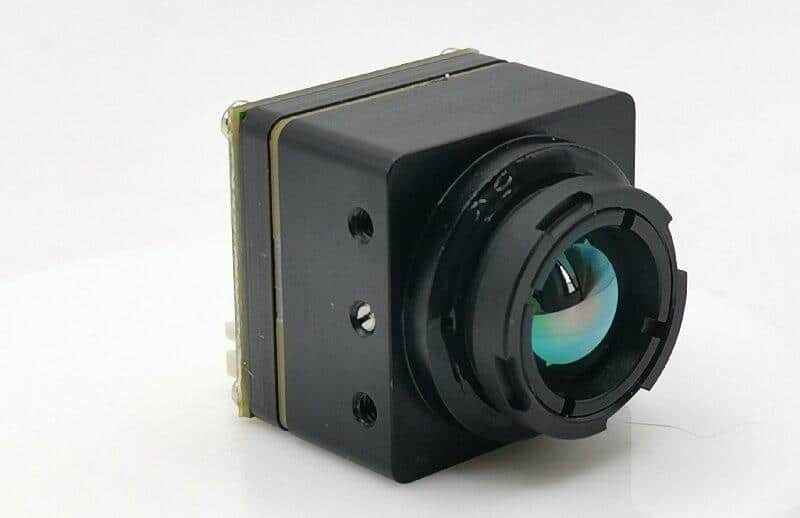

Modern thermal imaging cameras, like the U01-10, are light and easy to carry. You can put them on drones or vehicles to see more places. These cameras work in forests, cities, and other places. They also help you see better in the dark, so you do not miss heat signs.

Note: Remember, a thermal imaging camera is just a tool. You still need to use your firefighting skills and good judgment during a rescue.

Using a Thermal Imaging Camera in Search

Preparation Steps

You need to get ready before a search and rescue. Your team and equipment must be prepared. Good preparation helps you work faster and stay safe. Here are some steps to follow:

Put on your turnout gear and personal protective equipment. This keeps you safe from danger.
Check if your thermal imaging camera works and is fully charged.
Make sure you have fire tools, medical supplies, and radios.
Practice using the thermal imaging camera with your team. Training helps you find people faster and make fewer mistakes.
Set up clear rules for talking to each other. Everyone should know how to share info about heat spots and building layouts.
Look over the area you will search. Find dangers and plan your path.
Give each rescuer a job. Decide who uses the camera, who leads, and who gives medical help.

Tip: Training often with your search and rescue thermal camera makes you quicker and safer in real emergencies.

Operation in the Field

When you go into the field, use your thermal imaging camera the right way. This helps you find people and guide your team. Here are the steps:

Turn on your thermal imaging camera and set the focus for a clear picture.
Move the camera slowly from side to side and up and down. This helps you see every part of the area.
Watch the screen for heat spots. These look bright or dark, depending on your color palette.
Tell your team what you see. Share info about people, fires, or safe exits.
Use the camera to look behind doors, walls, or debris. This helps you find hidden people and plan what to do next.
Keep moving and scanning. Do not stay in one spot for too long.
If you find a victim, mark the spot and tell others to help with the rescue.

Studies show that using a thermal imaging camera can make searches much faster. In one test, teams without a camera took over eight minutes to find someone. With a camera, they found the person in less than four minutes. The table below shows how much a thermal imaging camera helps rescue teams:

Study / Location	Without TIC (Time / Success)	With TIC (Time / Success)	Improvement / Outcome Summary
Nationwide Study (60 test burns)	60% unable to locate victim	99% able to locate victim; 100% exit success	75% reduction in search time; greatly improved victim location
Johnson City Fire Bureau, TN	8 min 38 sec to find victim	3 min 30 sec to find victim	Nearly 60% increase in search efficiency
Chicago Fire Department Demo (2003)	4 min 30 sec to find downed firefighter	2 min 15 sec to find downed firefighter	50% reduction in search time
Burton, SC (9 companies) – Fire	4 min 48 sec to find fire room	2 min 23 sec to find fire room	50% reduction in time to locate fire
Burton, SC (9 companies) – Victim	6 min 46 sec to find victim	2 min 17 sec to find victim	67% increase in effectiveness
Firefighter Disorientation Studies	N/A	100% successful exit when equipped and trained	Proper TIC use prevents disorientation fatalities

Note: Always talk with your team. The person using the thermal imaging camera may see things others cannot.

Interpreting Images

Knowing how to read the thermal imaging camera screen is very important. The camera shows heat differences, but you need to understand the images to find people.

Pick the best color palette for your area. White Hot and Black Hot palettes work well for most searches. They make heat spots easy to see, so you can find people faster.
If the victim and background are close in temperature, use a high-contrast palette like Isotherms.
Learn how your camera matches temperature to color. This helps you avoid mistakes when looking for people or dangers.
Some rescuers may have trouble seeing colors. Make sure everyone knows how to change the palette if needed.
Think about the weather and background temperature. These can change how heat spots look on the screen.

Research shows that thermal imaging cameras using long-wave infrared technology can find people with 97.9% accuracy, even in bad weather. This is much better than normal cameras. The chart below shows how well thermal imaging works for finding missing people in hard situations:

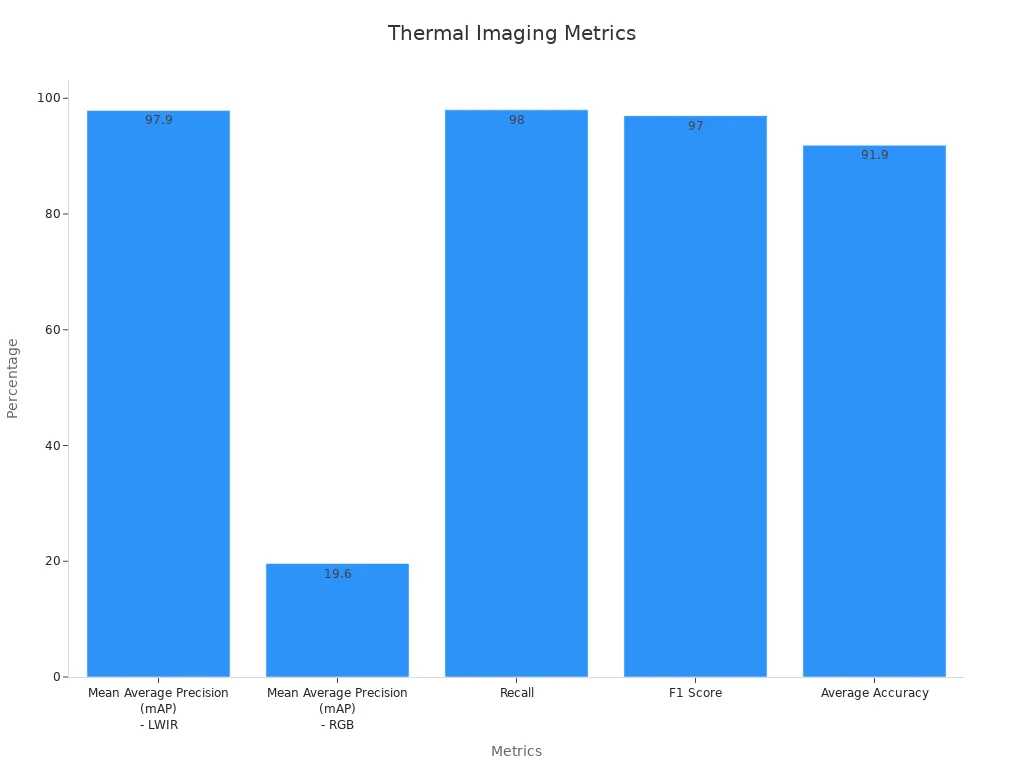

Bar chart showing quantitative metrics for thermal imaging in SAR missions

You also need to know how far your camera can see and recognize people. For example, advanced models like the U01-10 can find people almost 1,000 meters away and recognize them at over 200 meters. This helps you plan your search and rescue better.

Remember: The thermal imaging camera helps you find heat spots, but you should always check what you see before starting a rescue.

Choosing Thermal Cameras for Search and Rescue

Key Features in 2025

When picking a thermal imaging camera, look for features that help you work fast and stay safe. In 2025, the top thermal cameras have high resolution and can see far. They are tough and last a long time. You want a camera that works in many places and connects to drones or vehicles.

Here is a table with important features and what numbers to check:

Feature	Numerical Criteria / Values	Why It Matters
Field of View	51° horizontal, 40° vertical	A wide view lets you scan big areas quickly.
Temperature Range	-40°C to +1150°C (-40 to +2102°F)	A wide range helps you see cold and hot spots, even in fires.
Color Modes	Up to 5 modes (Fire, Search, Inverse, Cold, Multicolor)	Different modes help you find people or dangers in any place.
Resolution	256×192 to 640×480 pixels	Higher resolution gives clearer pictures and more detail.
Durability	Rugged, weather-resistant	A strong camera keeps working in rain, snow, or dust.
Integration	Compatible with drones, vehicles	Lets you search more ground and reach hard spots.
Battery Life	Long-lasting	Lets you search longer without stopping to charge.

Tip: Always practice with your thermal imaging camera. Training helps you use all the features and keeps your team safe.

Comparing Models

There are many thermal cameras to choose from for search and rescue. Some are best for holding in your hand. Others fit on drones or vehicles. The U01-10 is special because it is light and has a strong VOx detector. It gives you a clear thermal image from far away. You can find people up to 944 meters away and know who they are at 236 meters. This makes searching faster and more correct.

Handheld thermal imaging cameras can find heat from a few hundred yards up to about 1,000 yards.
Aerial thermal imaging cameras on drones can find things several kilometers away. These are good for big outdoor searches.
Special thermal imaging cameras for police or military can find targets over 10 kilometers away.
Rugged and weather-resistant thermal imaging cameras last longer in hard rescue jobs.
Light models are easier to carry and use for a long time.
High resolution and a wide field of view help you spot people and dangers fast.

When you compare cameras, look for a balance of clear images, how far it can see, and how tough it is. The U01-10 thermal imaging camera has all these things. It works well in many rescue jobs and connects to other tools. If you want the best results, focus on these main points when picking a thermal camera for search and rescue.

Search Environments and Tips

Wilderness and Forest

Searching in forests is tough. Trees and rough ground make it hard to see. It is also dark in many places. A thermal imaging camera helps you spot heat, even when you cannot see well. You can find people under leaves or in thick bushes.

Thermal imaging cameras check for heat changes and spot things by their size and how hot they are.
The Johnson criteria help you know if your camera can find, recognize, or identify people.
How well you see someone depends on their size and how much hotter or colder they are than the background.
Rescue blankets can block or bounce back infrared, so it is harder to see people, but you might still notice them.
Expensive cameras can measure temperature very well, but cameras on drones may not be as exact.
How high you fly your drone and the weather can change how well you find people.
Thermal imaging works best at night, in fog, or in thick plants, but it may not work if people are covered.
If people move or take off blankets, it is easier to find them.

With a good thermal camera, you can see more in the woods. Always scan slowly and look everywhere for hidden heat.

Urban and Collapsed Sites

Searching in cities or broken buildings is different. You may need to look through piles of rubble or small spaces. Thermal imaging cameras help you find people by seeing their body heat, even if they are behind walls or under things. You can use cameras in your hand or on drones to check big areas fast.

You should look at doors, windows, and cracks in the rubble. Thermal cameras can show heat that normal cameras do not see. Always tell your team what you find. Working together helps you rescue people faster and keeps everyone safe. Remember, metal or glass can reflect heat, so always check strange heat spots twice.

Extreme Weather

Bad weather makes rescue work harder. Rain, snow, fog, and dust make it hard to see and slow you down. Thermal imaging cameras work well because they see heat, not light. Studies show that drones with thermal cameras can find people in rain, snow, and fog very well. In one big study, over 18,000 people were found in bad weather using both thermal and regular pictures.

Real rescues, like those by Police Scotland, show that thermal cameras with optical images can find people 95% of the time and do it quickly. These cameras work well in tough places, helping you find people in thick plants or low light. New systems use smart computer programs to make finding people even better in bad weather.

Tip: Always check your camera’s settings before searching in bad weather. Change the focus and color palette to get the best results.

Safety and Common Mistakes

Team Safety

Keeping your team safe is very important in every rescue. Start with a safety talk before you go into any emergency. Make sure everyone knows what their job is and how to use the thermal imaging camera. Talking clearly helps everyone stay on task and not get confused.

Research from NIST’s Fire Research Division says good thermal imaging cameras help you find people and move safely in dangerous places. These cameras must meet tough rules for clear pictures, temperature range, and sharpness. If your camera meets these rules, you can see more and make better choices. This helps you act fast and lowers the chance of accidents during rescues.

Tip: Always check your camera before you use it. A working camera can help save lives.

All rescuers need to practice often. Try using the camera in places with smoke or in broken buildings. This practice helps you stay calm and act quickly when there is a real emergency.

Avoiding Errors

Mistakes can happen if you do not use the thermal imaging camera the right way. Some common mistakes are reading the images wrong, missing heat spots, or picking the wrong color palette. These mistakes can slow you down and put people in danger.

Studies show that mistakes can happen up to 13% of the time if you do not train enough or use old ways. You can make fewer mistakes by practicing with new tools and learning from each rescue. Training with new software and equipment helps you spot problems early and make better choices.

Here are some ways to make fewer mistakes:

Always set the focus before you start searching.
Pick the best color palette for where you are.
Check every heat spot twice before you act.
Tell your team what you see right away.

Remember: Good practice and teamwork help you make fewer mistakes and keep everyone safe during rescues.

You can do well in search and rescue by following easy steps with your thermal imaging camera. First, get ready and make sure you have everything you need. Use the camera the right way and always look at your images carefully. Pick the best device for your job and practice often with your team. Trying new technology like the U01-10 helps you stay prepared and handle any problem.

FAQ

How do you clean and maintain a thermal imaging camera?

You should wipe the lens with a soft, dry cloth. Store the camera in a cool, dry place. Check the battery and connections before each use. Regular care keeps your camera working well.

Can you use a thermal imaging camera in the rain or snow?

Yes, you can use most thermal imaging cameras in rain or snow. Many models, like the U01-10, work in tough weather. Always check your camera’s weather rating before heading out.

What is the best color palette for finding people?

White Hot and Black Hot palettes work best for most searches. These palettes make heat differences easy to see. Try both and choose the one that helps you spot people faster.

How far can you see with a thermal imaging camera?

Detection range depends on your camera model. For example, the U01-10 can detect people up to 944 meters away. Always check your camera’s manual for exact numbers.

Do you need special training to use a thermal imaging camera?

Yes, you need training to use a thermal imaging camera well. Practice helps you read images correctly and avoid mistakes. Many teams train often to stay sharp.
