UVA Series Uncooled Thermal Imaging Core Module for City Safety and Surveillance

Product Overview of UVA Uncooled Thermal Imaging Core

The UVA Series Uncooled Thermal Imaging Core Module is a compact thermal imaging solution designed for city safety, public security, and residential surveillance systems. Based on uncooled infrared technology, the UVA Series enables reliable thermal imaging and accurate temperature measurement without the complexity, cost, or maintenance requirements of cooled systems.

The module supports independent operation or system-level integration, making it suitable for OEM manufacturers, system integrators, and smart surveillance solution providers. It can be deployed in both indoor and outdoor environments, delivering continuous monitoring performance in day, night, and low-visibility conditions.

Key Features of the UVA Thermal Imaging Module

The UVA Series is engineered to balance performance, integration flexibility, and deployment efficiency, meeting the practical needs of surveillance and safety applications.

Accurate Temperature Measurement at the Front-End Device

The UVA thermal imaging core supports front-end temperature measurement with high accuracy, allowing thermal data to be captured directly at the device level. This enables early detection of abnormal heat sources and supports real-time safety monitoring.

The module is capable of outputting a full-temperature digital video stream, where each pixel contains temperature data. This allows downstream systems to perform temperature analysis, alarm linkage, and data visualization without additional hardware.

Compact, Low-Power Thermal Core for Embedded Systems

Designed for embedded applications, the UVA Series features a small form factor, lightweight structure, and low power consumption. These characteristics make it ideal for space-constrained devices such as compact surveillance cameras and integrated monitoring terminals.

Low power consumption supports 24/7 continuous operation, helping reduce system heat generation and long-term operating costs.

Open API and Multi-Protocol Integration Support

The UVA Series provides a standard Ethernet (network) output, enabling fast and reliable integration into existing surveillance and monitoring infrastructures.

An open API is available for system software integration and secondary development, allowing customers to customize data processing, temperature analysis, and alarm logic. The module also supports multiple transmission protocols, ensuring compatibility with different system architectures and deployment requirements.

Typical Applications in City Safety and Surveillance

The UVA Uncooled Thermal Imaging Core Module is suitable for a wide range of monitoring and security scenarios, including:

Smart city safety and public area monitoring
Residential and community surveillance systems
Indoor and outdoor thermal security cameras
Infrastructure and facility safety monitoring
OEM and system integrator surveillance solutions

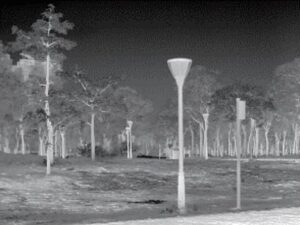

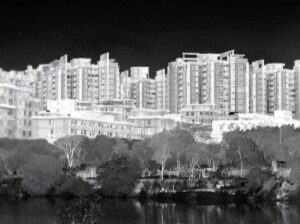

These applications benefit from passive thermal detection, which operates independently of ambient light conditions.

Why Choose UVA Series for OEM and System Integration

For procurement managers and technical decision-makers, the UVA Series offers a practical, deployable thermal imaging core rather than an experimental component.

Key advantages include:

Uncooled thermal technology with low operating and maintenance cost
Standardized module design for stable sourcing and scalability
Open software architecture for flexible system integration
Suitable for both pilot deployments and volume production
Balanced performance-to-cost ratio for surveillance projects

The UVA Series Uncooled Thermal Imaging Core Module is designed to support long-term deployment in real-world surveillance and safety systems.

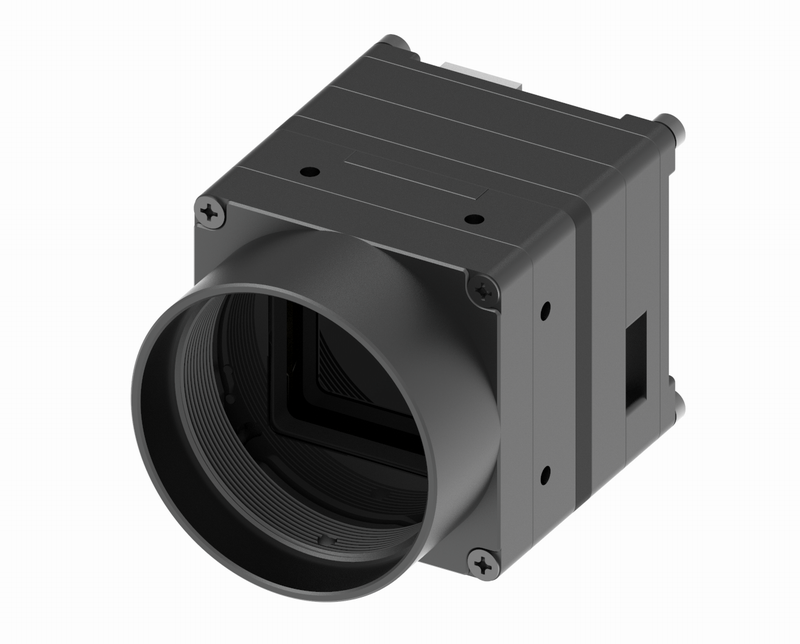

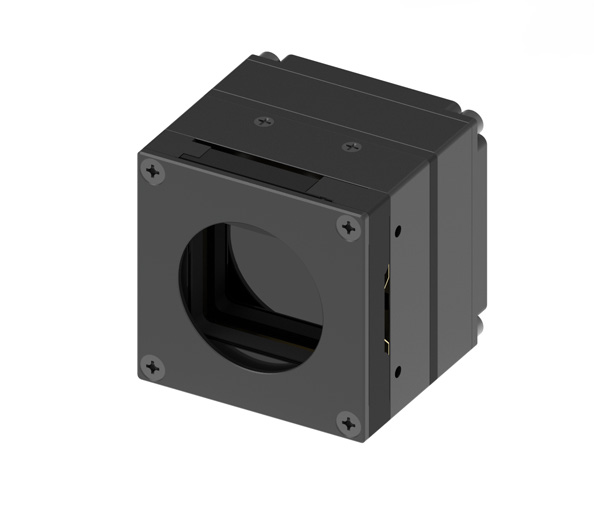

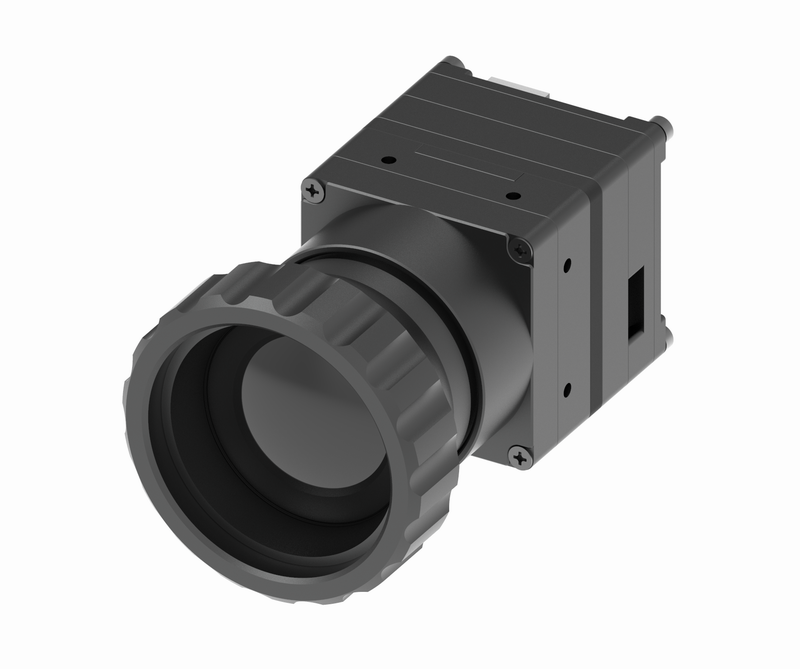

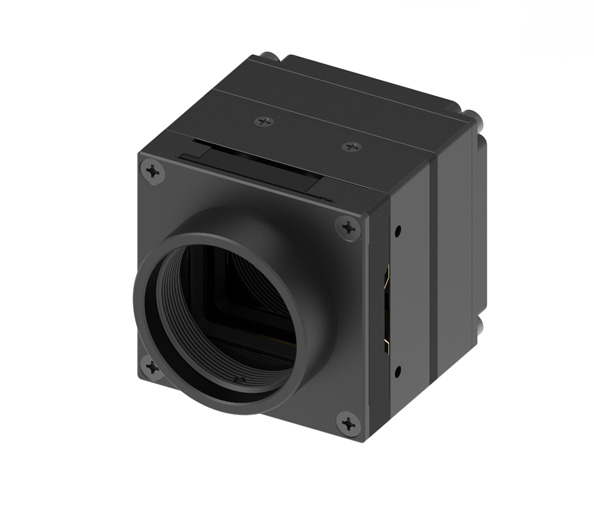

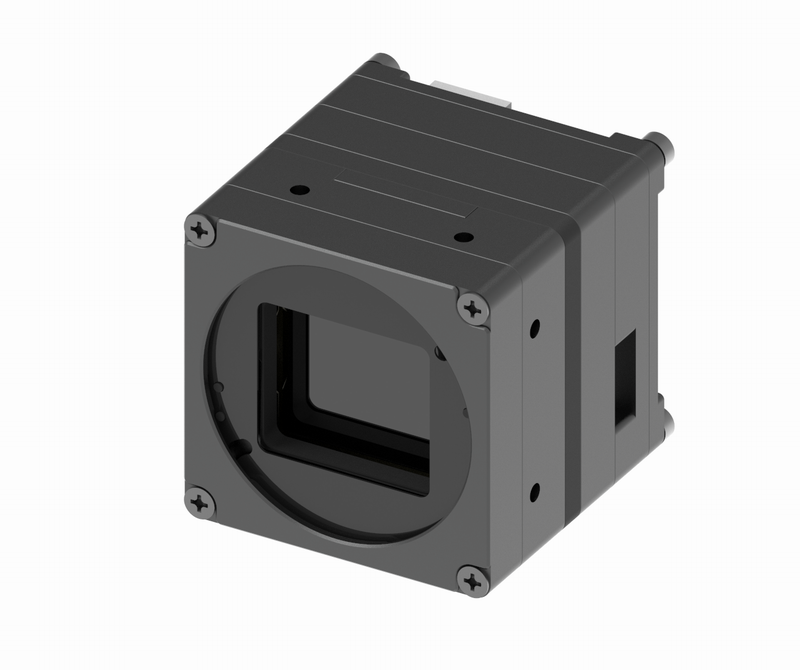

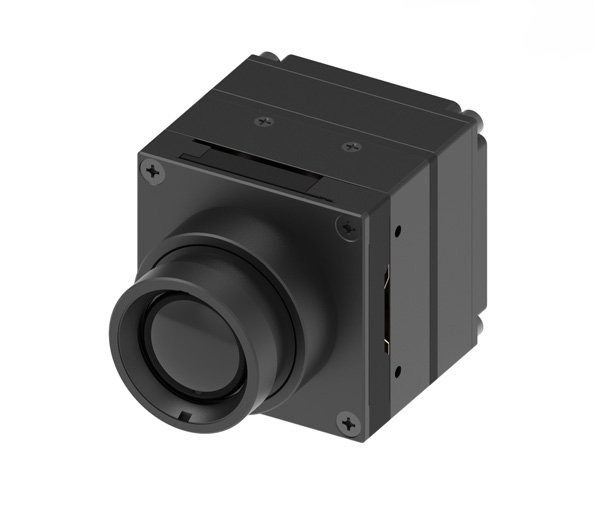

UVA Series Uncooled thermal imaging core module

Model	UVA3/6-35C	UVA3/6-35D
Detector type	Uncooled Vox
Resolution	384×288 / 640×512 @12μm
Wavelength	8μm~14μm
NETD	≤ 40mK@F1.0 25℃
Frame Rate	50Hz
Lens	4.6mm/9mm/13mm etc, can be customized
Color Palette	Black hot/white hot/ others pseudo colors
Video output	CVBS	AHD
Function	Crosshairs, Hot tracking, image setting, alarm output (optional)
Electrical interface	Pow, Video, Uart
Supply Voltage	5~28 V DC
Rated power	≤ 1.2W
Communication	TTL, Baut rate 115200
Dimensions	28mm×28mm×27mm（W×H×L) (excl. lens）
	26mm×26mm×27mm (W×H×L) (excl. lens) (optional)
Weights	35g（excl. lens）
Humidity	5%RH~95%RH, non-condensing
Operating temperature	-40℃ ~+80℃
Storage temperature	-45℃ ~+85℃
Vibration	6.06g，random, at any direction
Shock	80g@4ms, 3 axis/ 6 directions
Altitude	12km
