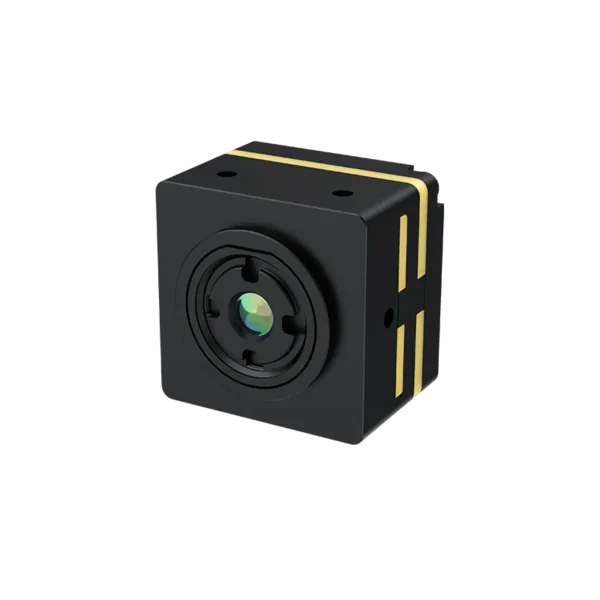

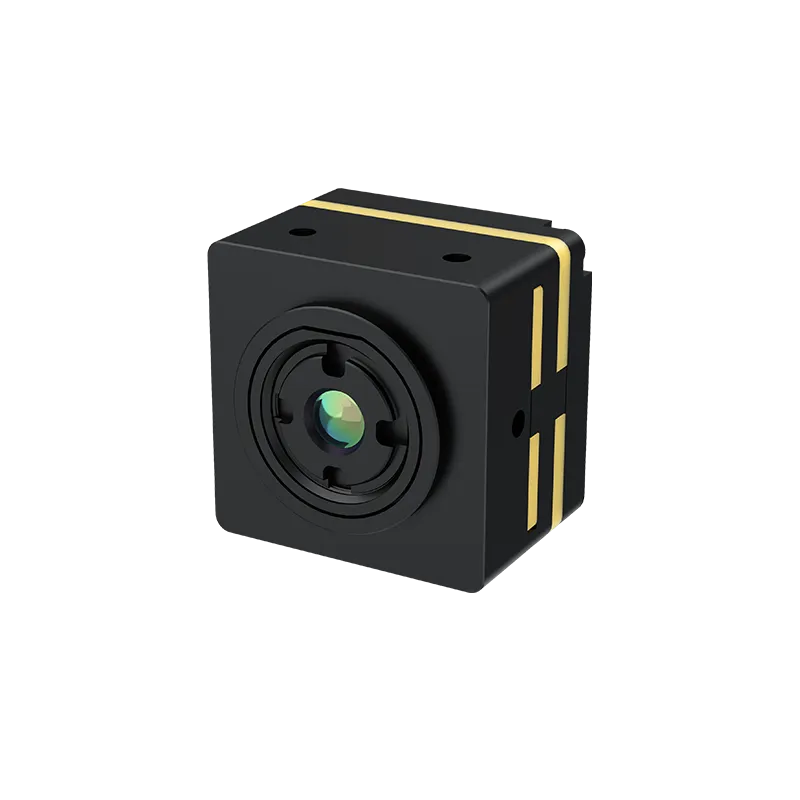

Turing L256 Uncooled Infrared Module

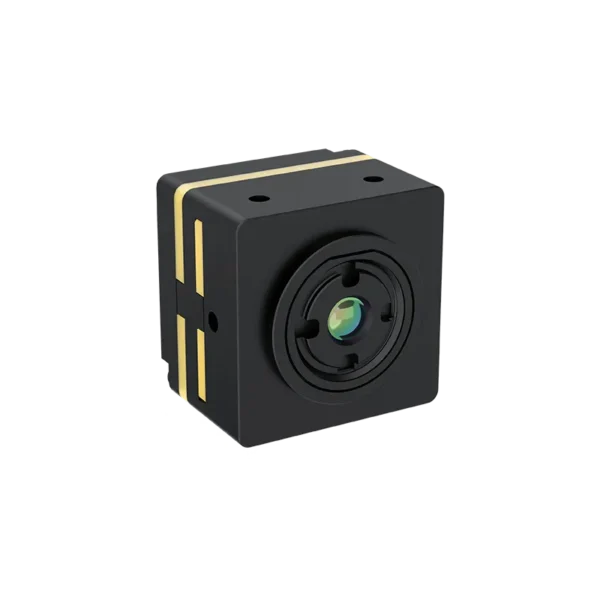

Turing L256 Uncooled Infrared Module (Imaging) – Image 2

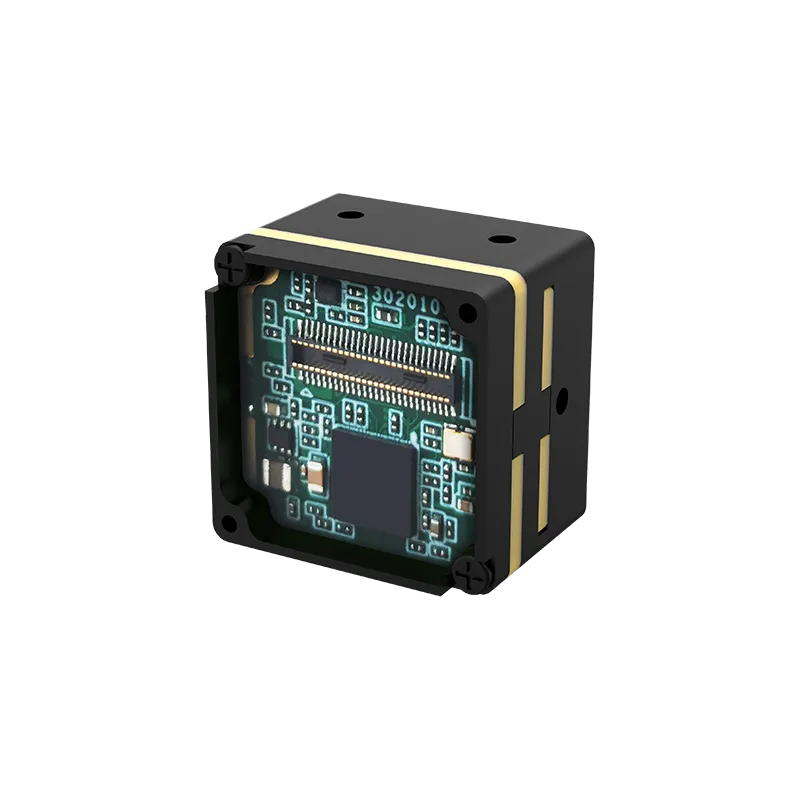

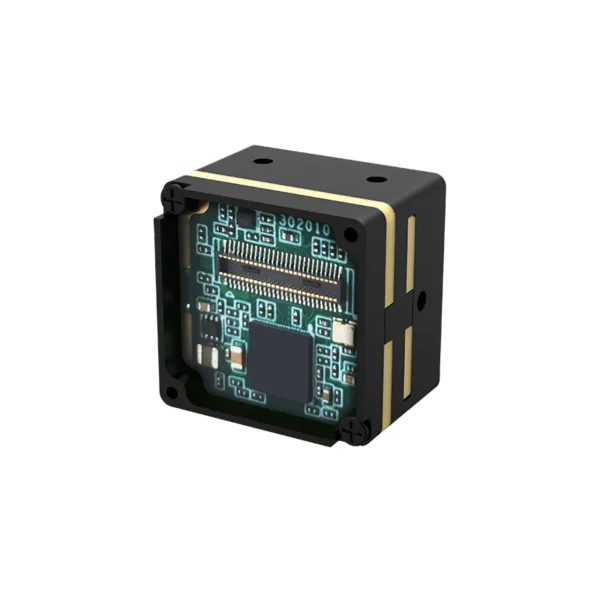

Turing L256 Uncooled Infrared Module (Imaging) – Image 3

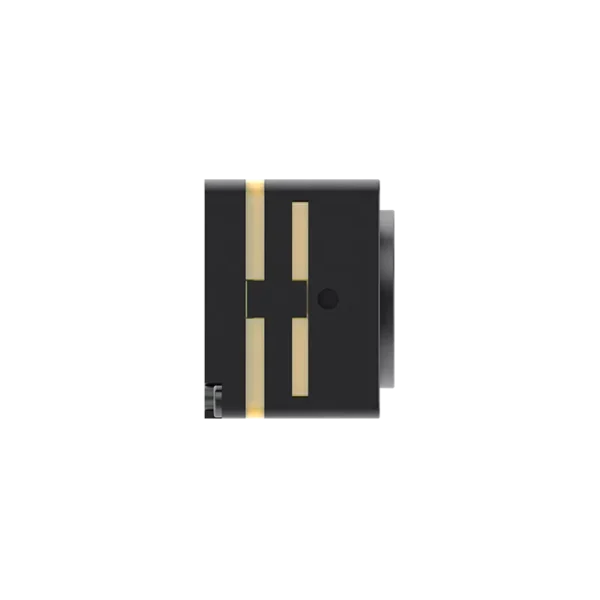

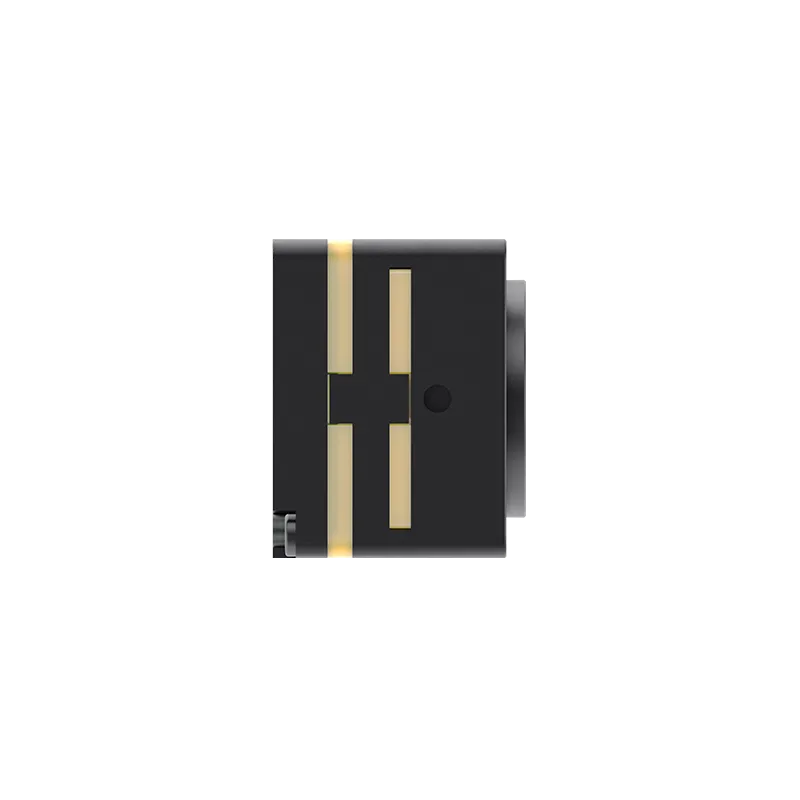

Turing L256 Uncooled Infrared Module (Imaging) – Image 4

Turing L256 Uncooled Infrared Module (Imaging)

Turing L256 uncooled infrared module is equipped with an advanced 256×192 wafer detector with a dimension of 18×18mm. Thanks to its integrated design, it redefines standards in weight, dimension and power consumption (SWaP³) in the OEM module industry, providing excellent miniaturized solutions for consumer products.

Catégories : , Étiquettes : , , , , , ,

Turing L256 Uncooled Infrared Module (Imaging)

Feature

Compatibility Design

  • Its resolution is 256×192 and dimension is 18mm×18mm, which are consistent with those of the L384 mechanical interface for compatibility design.

Excellent Performance

  • 50Hz imaging to provide a smooth image experience.

Multiple Selections

  • The FOV is 20°~90° and the extension supports multiple interfaces such as DVP/USB/Analog video.

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 256×192
Frame Rate 50Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK@25°C
Image Adjustment
Brightness/Contrast Adjustment Manual/Auto
Polarity Black-hot/White-hot
Palette It supports multiple types
Reticle Display/Blank/Move
Image Processing Digital filtering noise reduction/Digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.8~5.2V DC/1.8V/3.3V
Typical Power Consumption at 25°C Without Extension ≤0.35W
Interface
Digital Video LVCMOS/BT.1120
Serial Communication Interface UART
Extension Components USB 2.0 / Analog video
Physical Characteristics
Dimensions (Without lens and extension components) 18×18mm
Weight (3.2mm, without extension components) About 8.7g
Lens Model 2mm, 3.2mm, 7mm, 10mm, and 13mm
Environment Adaptability
Operating Temperature -20℃～60℃
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Product Certification RoHS2.0

Application Scenarios



UAV
UAV


Security Monitoring
Security Monitoring


Head-mounted Night Vision
Head-mounted Night Vision


Machine Vision
Machine Vision
